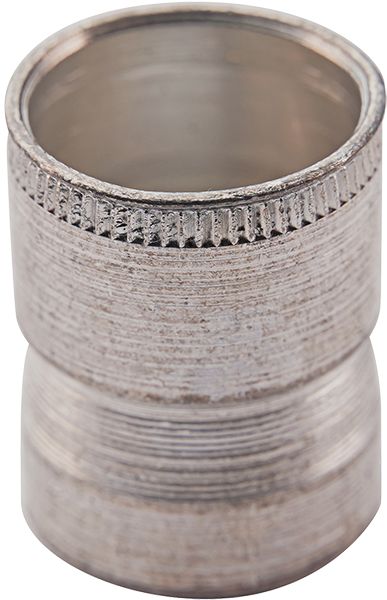

Standard Threaded Insert, Steel, Cadmium Finish, Knurled, Small Flange, Coarse Thread, M10-1.5, 18.92mm Length, 14.28mm Hole
(Pack of
25)
SKU:85899 Item#: 85899
• Works in any thickness of material over 0.030"
• Simplest, most versatile and functional threaded insert
• Axial knurl under the flange gives superior holding strength
• Can be attached from one side in any thickness of material
• Can be used in sheet metal, castings, fiberglass, plastics, composition board, concrete, wood and other materials
• CAD-plated for added corrosion resistance
• Can be used virtually anywhere there is a need for strong, reusable steel threads in blind, buried or through holes
Frequently Bought Together
Hex Nut Grade 5 Steel 1/2-13
Couldn't load pickup availability
Hex Cap Screw Grade 8 Alloy Steel 3/8-16 x 1-1/2"
Couldn't load pickup availability
Hex Nut Grade 8 Steel 3/8-16
Couldn't load pickup availability
Nutsetter & Bit Set, Magnetic, 22pc
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M10
Couldn't load pickup availability
Hex Nut Grade 5 Steel 3/8-16
Couldn't load pickup availability
Threaded Insert for Soft Material 1/4-20
Couldn't load pickup availability
Threaded Insert for Soft Material #10-32
Couldn't load pickup availability
Threaded Insert for Soft Material #10-24
Couldn't load pickup availability
Blind Rivet Nut Insert Flat Head 1/4-20
Couldn't load pickup availability
Diamond Grip II Installation Kit M6-1
Couldn't load pickup availability
Conversion Kit Standard 5/16-18
Couldn't load pickup availability
Product Description
• Works in any thickness of material over 0.030"• Simplest, most versatile and functional threaded insert
• Axial knurl under the flange gives superior holding strength
• Can be attached from one side in any thickness of material
• Can be used in sheet metal, castings, fiberglass, plastics, composition board, concrete, wood and other materials
• CAD-plated for added corrosion resistance
• Can be used virtually anywhere there is a need for strong, reusable steel threads in blind, buried or through holes
Technical Specifications
| Item#: | 85899 |
|---|---|
| Diameter | M10 |
| Thread Pitch | 1.5 mm |
| Thread | Coarse |
| Flange Type | Small Flange |
| Type | Standard Threaded Inserts |
| Body Type | Knurled |
| Hole Size | 14.28 mm |
| Pilot Drill Size | 9/16 " |
| Pilot Drill Number | 9740 |
| Material | Carbon Steel |
| Finish | CAD-Plated |
| Head Diameter | 14.94 mm |
| Body Diameter | 14.26 mm |
| Length | 18.92 mm |
| UNSPSC #: | 31162802 |
| TAA Compliant: | Yes |
| Weight: | 0.44 lb |
