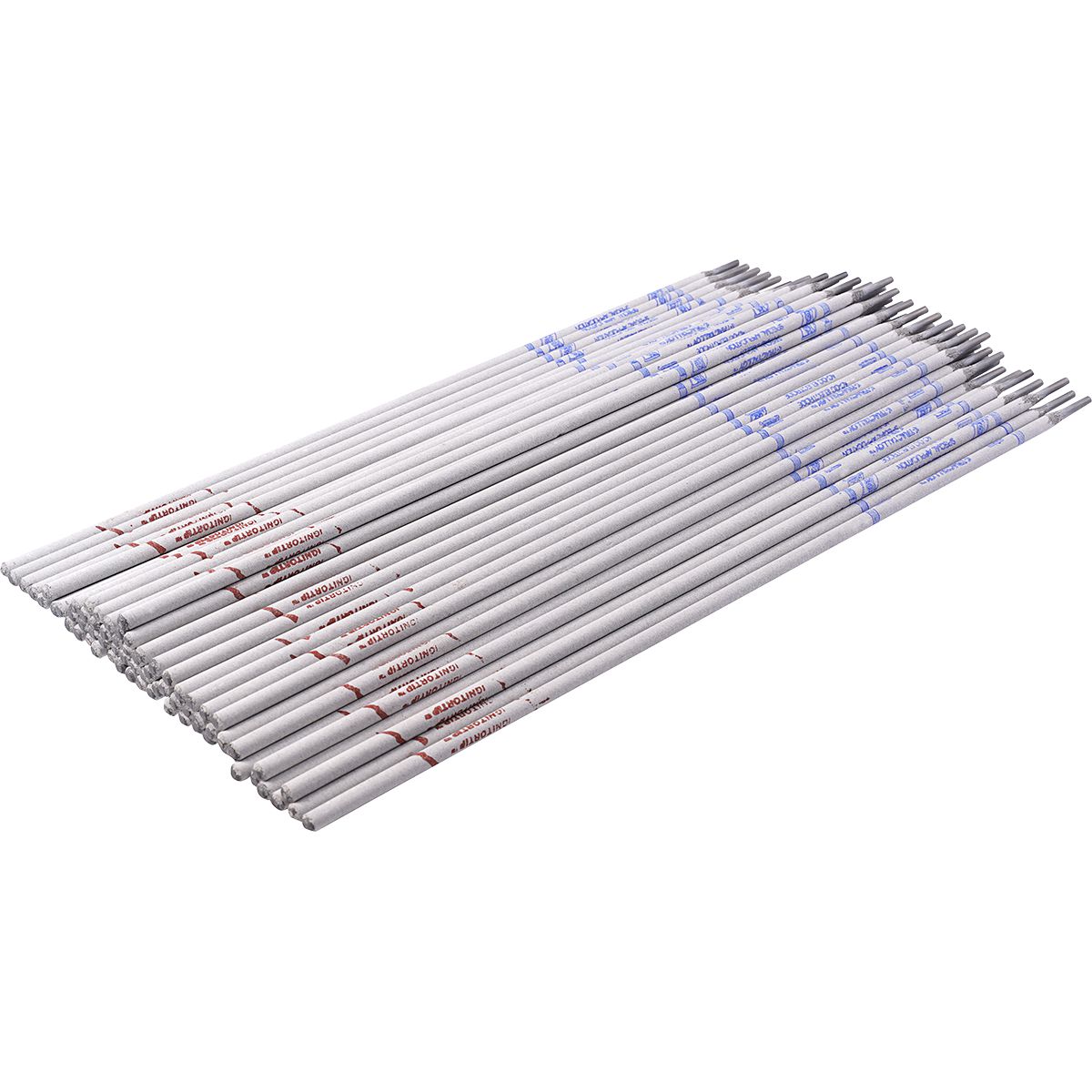

X-Tractalloy Special Bolt Extraction Ignitor Tip All Position Tensile 1230000 To 150000 Elongation 27%Polarity Ac/Dc 21Rc
(Pack of
5)
A special application welding electrode designed for extracting broken bolts, studs and taps from threaded holes.
• Saves Time and Money – Reduces downtime and labor by getting parts back into service quickly
• Versatile – Will also remove broken screw extractors, taps and broken drill bits
• Strong – Tensile strength exceeds that of grades 2, 5, 8, 8.8 and 10.9 bolts and stainless steel
• IGNITOR TIP™ – For instant strike
• Nonconductive Flux – Ceramic-like coating insulates threads to prevent damage from welding
• All-position
• Tensile strength
– As deposited: 123,000 PSI/848 Mpa
– Work Hardened: 150,000 PSI/1034 Mpa
• Hardness: 21 Rc
• Elongation: 27%
• Impact Strength (Charpy, V-notch) – room temperature: 100 ft.-lbs./135 Joules
• Machinability: Good
• Current: AC or DC+
• Broken bolts, studs and screws (5/16'' and up)
• Broken taps and drills (5/16'' and up)
• Broken screw extractors like E-Z Outs™
• Works on any ferrous alloy including stainless, tool steel and nickel alloys
• Will remove iron or nickel based components from any metallic block or housing, including aluminum, brass and bronze
Rod Selection Guide:
• EG00420000 – Bolt Diameters 2-1/2'' – 4''
• EG00430000 – Bolt Diameters 1'' – 2-1/2''
• EG00440000 – Bolt Diameters 3/4'' – 1'
• EG00450000 – Bolt Diameters 1/2'' – 3/4''
• EG00460000 - Bolt Diameters 5/16'' – 1/2''
Frequently Bought Together
333 Dissimilar Steel MIG Welding Wire 0.045"
Couldn't load pickup availability
333 Dissimilar Steel Stick Rod Electrode Kit
Couldn't load pickup availability
Cool Steel All Steel Alloy 3/32
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/4-20
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/2-13
Couldn't load pickup availability
Alu-Master 8-Way Torpedo Level
Couldn't load pickup availability
Oxy Acetylene Fuel and Oxygen Quick Connector
Couldn't load pickup availability
11-45 MIG Welding Contact Tip 0.045"
Couldn't load pickup availability
556 Aluminum TIG Wire 1/16"
Couldn't load pickup availability
333 Dissimilar Steel TIG Wire 0.035"
Couldn't load pickup availability
510 Aluminum MIG Welding Wire 3/64"
Couldn't load pickup availability
777 Stainless Steel Stick Rod Electrode 1/8"
Couldn't load pickup availability
Product Description
A special application welding electrode designed for extracting broken bolts, studs and taps from threaded holes.• Saves Time and Money – Reduces downtime and labor by getting parts back into service quickly
• Versatile – Will also remove broken screw extractors, taps and broken drill bits
• Strong – Tensile strength exceeds that of grades 2, 5, 8, 8.8 and 10.9 bolts and stainless steel
• IGNITOR TIP™ – For instant strike
• Nonconductive Flux – Ceramic-like coating insulates threads to prevent damage from welding
• All-position
• Tensile strength
– As deposited: 123,000 PSI/848 Mpa
– Work Hardened: 150,000 PSI/1034 Mpa
• Hardness: 21 Rc
• Elongation: 27%
• Impact Strength (Charpy, V-notch) – room temperature: 100 ft.-lbs./135 Joules
• Machinability: Good
• Current: AC or DC+
• Broken bolts, studs and screws (5/16'' and up)
• Broken taps and drills (5/16'' and up)
• Broken screw extractors like E-Z Outs™
• Works on any ferrous alloy including stainless, tool steel and nickel alloys
• Will remove iron or nickel based components from any metallic block or housing, including aluminum, brass and bronze
Rod Selection Guide:
• EG00420000 – Bolt Diameters 2-1/2'' – 4''
• EG00430000 – Bolt Diameters 1'' – 2-1/2''
• EG00440000 – Bolt Diameters 3/4'' – 1'
• EG00450000 – Bolt Diameters 1/2'' – 3/4''
• EG00460000 - Bolt Diameters 5/16'' – 1/2''
Technical Specifications
| Item#: | EG00440000 |
|---|---|
| Welding Process | Stick |
| Type | Electrode |
| Diameter | 1/8 " |
| Tensile Strength | 150,000 PSI |
| Elongation | 27 % |
| Hardness | 21 HRC |
| Polarity | DCRP/AC |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 6.15 lb |
