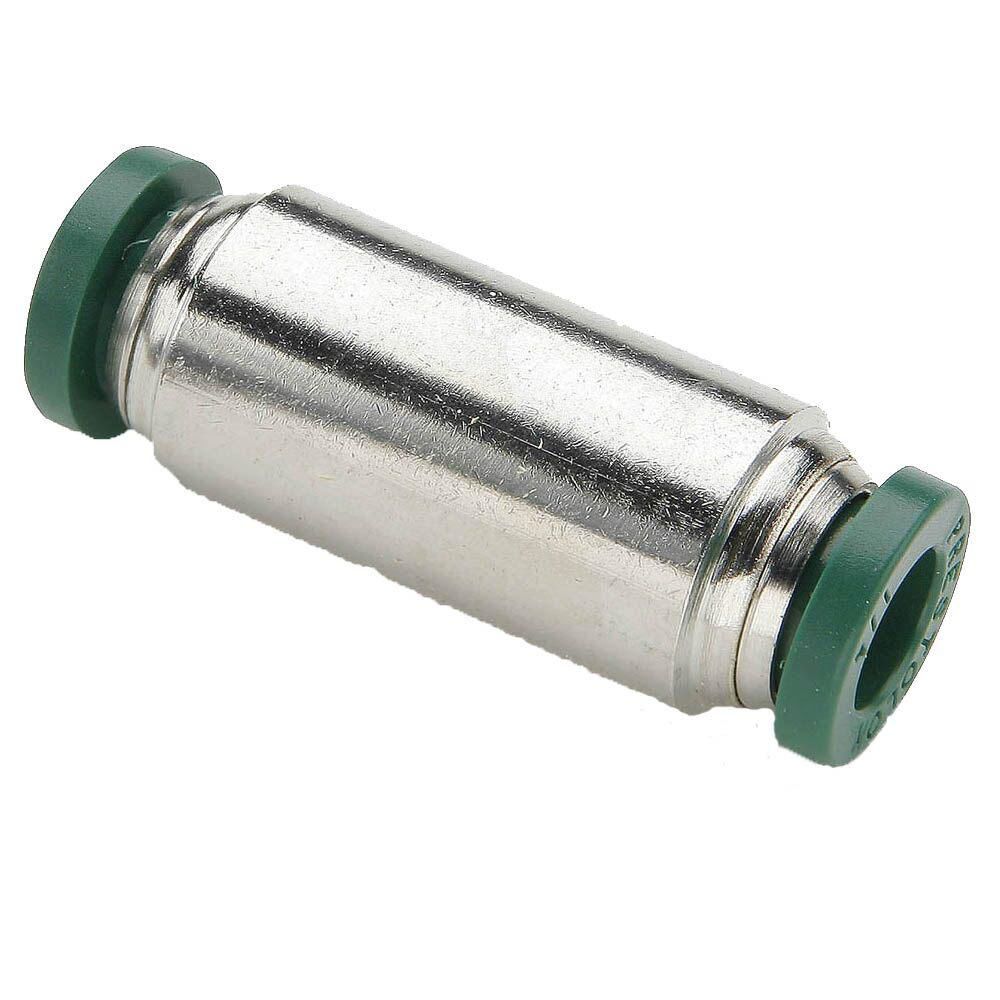

Union de laiton NI
(Paquet de
10)
SKU:1263886 Article#: 1263886
The nickel-plated brass push-to-connect fittings are suitable for compressed air (lubricated or non-lubricated). The fitting is designed to perform in particularly harsh (e.g. weld-splatter) or abusive (e.g. steel-toed boot) environments. Compatible with polyurethane and nylon tubing. Metal tubing may be used with specific preparation. For applications where the fitting is exposed to aggressive environments. Legris uses high phosphorous electroless nickel-plating for the nickel-plated brass push-to-connect fitting range. The electroless nickel-plating has a dull, flat finish. It adheres to more of the surface, such as in the root of the threads and grooves of the collet. It has increased resistance to water, harsh detergents and other aggressive fluids and environments. As a result, the nickel-plated brass push-to-connect series offers superior chemical, corrosion and abrasion resistance. The nickel-plated brass push-to-connect series utilizes a metal release button more appropriate for harsh and abusive environments.
• All items in the nickel-plated brass push-to-connect range are silicone free
• Working temperature: 5°F to 180°F
• Working pressure: Up to 290 PSI
• Suitable fluids: Compressed air
• FDA chemical nickel-plated brass
• Construction:
– Body: Electroless nickel-plated brass
– Backup washer: Electroless nickel-plated brass
– Collet technology: Electroless nickel-plated brass
– O-ring: Nitrile
– Base: Electroless nickel-plated brass with thread sealant on tapered components
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.
Impossible de charger la disponibilité du service de retrait
Fréquemment achetés ensemble
Dot Union Nylon 3/8 x 3/8 "
Impossible de charger la disponibilité du service de retrait
Hex Head Plug en laiton 1/4-18 mâle NPT
Impossible de charger la disponibilité du service de retrait
Hex Head Plug en laiton 1 / 2-14 mâle NPT
Impossible de charger la disponibilité du service de retrait
Vanne à billes de corps forgé en laiton 1 / 2-14 x 1 / 2-14
Impossible de charger la disponibilité du service de retrait
Adaptateur de tuyau en laiton 1/4-18 x 3/8-18
Impossible de charger la disponibilité du service de retrait
Tuyau de mamelon hexagonal en laiton 1/4-18 x 1 / 4-18
Impossible de charger la disponibilité du service de retrait
Travail étanche aqua léger 66 LED
Impossible de charger la disponibilité du service de retrait
Connecteur à bout de 22 à 18 AWG rouge
Impossible de charger la disponibilité du service de retrait
Ensemble d'extension de prise croisée, 3/8 ", 3 pièces
Impossible de charger la disponibilité du service de retrait
Connecteur push-to-connect en laiton 1/2 x 1/2 "
Impossible de charger la disponibilité du service de retrait
Garde du tuyau en nylon 1,42 "id x 25 'longueur
Impossible de charger la disponibilité du service de retrait
Nylon de coude push-to-connect 3/8 x 3/8 "
Impossible de charger la disponibilité du service de retrait
Description du produit
The nickel-plated brass push-to-connect fittings are suitable for compressed air (lubricated or non-lubricated). The fitting is designed to perform in particularly harsh (e.g. weld-splatter) or abusive (e.g. steel-toed boot) environments. Compatible with polyurethane and nylon tubing. Metal tubing may be used with specific preparation. For applications where the fitting is exposed to aggressive environments. Legris uses high phosphorous electroless nickel-plating for the nickel-plated brass push-to-connect fitting range. The electroless nickel-plating has a dull, flat finish. It adheres to more of the surface, such as in the root of the threads and grooves of the collet. It has increased resistance to water, harsh detergents and other aggressive fluids and environments. As a result, the nickel-plated brass push-to-connect series offers superior chemical, corrosion and abrasion resistance. The nickel-plated brass push-to-connect series utilizes a metal release button more appropriate for harsh and abusive environments.• All items in the nickel-plated brass push-to-connect range are silicone free
• Working temperature: 5°F to 180°F
• Working pressure: Up to 290 PSI
• Suitable fluids: Compressed air
• FDA chemical nickel-plated brass
• Construction:
– Body: Electroless nickel-plated brass
– Backup washer: Electroless nickel-plated brass
– Collet technology: Electroless nickel-plated brass
– O-ring: Nitrile
– Base: Electroless nickel-plated brass with thread sealant on tapered components
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.
Spécifications techniques
| Article#: | 1263886 |
|---|---|
| No de modèle du fabricant : | 62PLP-4 |
| Material | Nickel-Plated Brass |
| Working Pressure | 280 PSI |
| Temperature Range | -4 to +176 °F |
| UNSPSC #: | 40183100 |
| Conforme à la TAA : | Non |
Restrictions sur les produits
