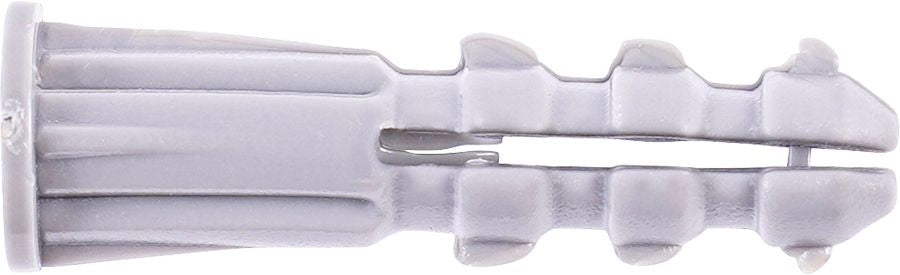

3/16x7/8 Gray Ribbed Plastic Wall Anchor
(Pack of
100)
SKU:DY09580009 Item#: DY09580009
• Works in concrete, brick, masonry or drywall
• Ribbed body expands and “bites in'' to the gripping surface to give a very dependable fastening application
• Safe for use in blind applications where electrical wiring might be present
• Yellow plastic anchor has a ribbed body plus gripping tabs on each side of the neck
• Minimum material thickness: 3/8”
Note: Strengths are dependent on size of anchor and strength of material and will vary depending on application. Strengths are higher on thicker materials.
Couldn't load pickup availability
Catalog page#: LE-14
Frequently Bought Together
Masonry Anchor Hex Washer Head Steel 3/16 x 1-1/4"
Couldn't load pickup availability
Conical Screw Anchor Plastic #8 to #10 x 7/8"
Couldn't load pickup availability
Masonry Anchor Hex Washer Head Steel 3/16 x 1-3/4"
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M8
Couldn't load pickup availability
Locknut with Nylon Insert Grade 8 5/16-18
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Nylon Cable Tie 4" Black
Couldn't load pickup availability
Wing-Type Toggle Bolt Anchor Steel #10-24 x 3"
Couldn't load pickup availability
Tamper-Proof Nail Drive Anchor Steel 1/4 x 1-1/2"
Couldn't load pickup availability
Self-Drilling Standard Wall Anchor Nylon #6 to #10
Couldn't load pickup availability
Product Description
• Works in concrete, brick, masonry or drywall• Ribbed body expands and “bites in'' to the gripping surface to give a very dependable fastening application
• Safe for use in blind applications where electrical wiring might be present
• Yellow plastic anchor has a ribbed body plus gripping tabs on each side of the neck
• Minimum material thickness: 3/8”
Note: Strengths are dependent on size of anchor and strength of material and will vary depending on application. Strengths are higher on thicker materials.
Technical Specifications
| Item#: | DY09580009 |
|---|---|
| Length | 7/8 " |
| Type | Plastic Screw Anchor |
| Size | 3/16 X 7/8 |
| Diameter | 3/16 " |
| Material | Plastic |
| Drill Size | 3/16 " |
| Grip Range | 3/8 and up " |
| Color | Gray |
| Minimum Wall Thickness | 3/8 " |
| Screw Size | #6 or #8 |
| Tensile Pull-Out Strength | 40 - 58 lb |
| Shear Proof Test Load | 60 - 125 lb |
| UNSPSC #: | 31162103 |
| TAA Compliant: | Yes |
| Weight: | 0.06 lb |
