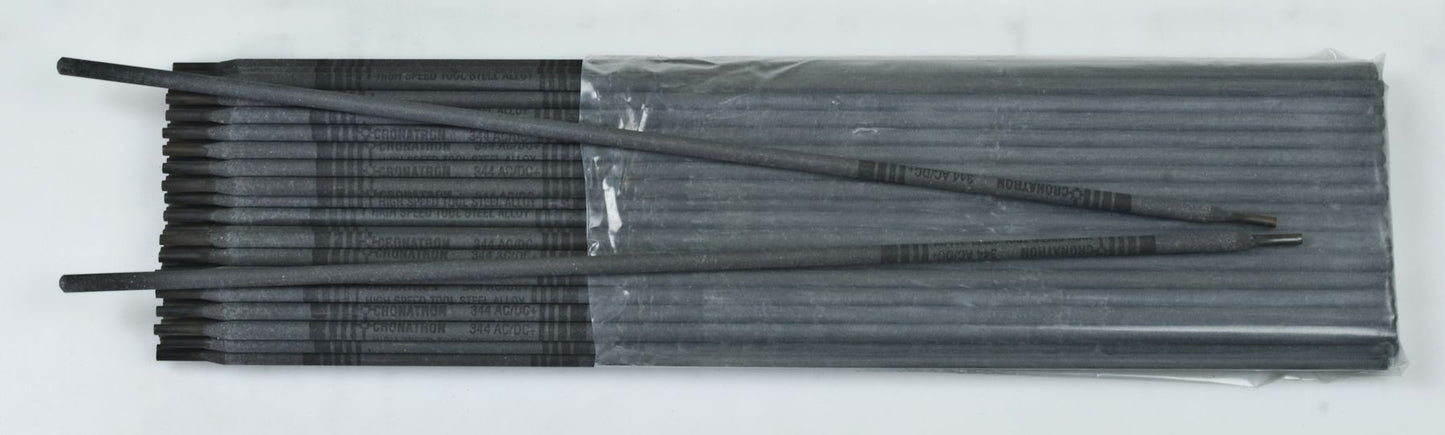

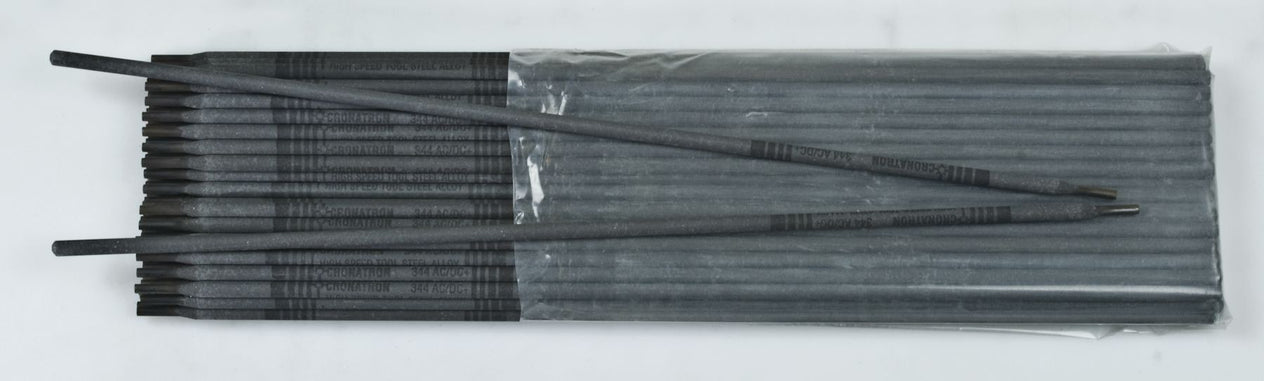

344 Tool Steel Stick Rod Electrode, Flux Coated, 59 to 63 HRC Hardness, 80 to 120 Amps, DCRP/AC Polarity, Crack-Resistant, 1/8"
(Pack of
5)
SKU:CW1067 Item#: CW1067
A broad selection of premium alloys to use for nearly any tool steel application and repair.
Superior Advantages
• Crack-resistant
• Premium operability
• High wear resistance
Hardness: Rc 59-63
Polarity: AC or DC Reverse
“D” and “M” Series
This alloy was formulated for welding the “D” and “M” Series, due to its very high percentage of carbon and alloy additions of chromium, molybdenum and vanadium. The deposits are air-hardenedable and require high preheat temperatures for welding types D-2, M-2.
Typical Applications
• Various tool steel repairs – specific alloy selection is dependent upon the type (or Series) of tool steel being repaired
• Forming dies, cutting tools and high impact tools
Usage Procedure
When used on hardened tool steels, preheat the steel to 150°F (65°C) below the draw temperature of the steel. Base metal should be cleaned to remove oil and other contaminants. Sharp edges should be removed where possible and chipped, spalled, or fatigued metal should be removed by grinding or other mechanical means. Deposits should be peened after each pass immediately after deposition to relieve stresses. Use care in removing slag thoroughly between multiple passes.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 13-24
Frequently Bought Together
Flat Washer Grade 12 Thru-Hardened Steel M10
Couldn't load pickup availability
Superbutt Connector 22 to 18 AWG Red
Couldn't load pickup availability
Autobahn Ergo Magna EZ Crimper Ratcheting Terminal Crimper
Couldn't load pickup availability
345 Tool Steel TIG Wire 3/32"
Couldn't load pickup availability
344 Tool Steel TIG Wire 1/16"
Couldn't load pickup availability
345 Tool Steel TIG Wire 0.035"
Couldn't load pickup availability
281 High Strength Silver Bearing Solder .031DIA 19G TUBE
Couldn't load pickup availability
Oxy Acetylene Fuel Gas Three Replacement Flint
Couldn't load pickup availability
Rosin Core Solder 1/16"
Couldn't load pickup availability
375 Mild/Carbon Steel Stick Rod Electrode 1/8"
Couldn't load pickup availability
106 Mild Steel All Purpose Electrode
Couldn't load pickup availability
701 Mild/Carbon Steel Stick Rod Electrode 1/8"
Couldn't load pickup availability
Product Description
A broad selection of premium alloys to use for nearly any tool steel application and repair.Superior Advantages
• Crack-resistant
• Premium operability
• High wear resistance
Hardness: Rc 59-63
Polarity: AC or DC Reverse
“D” and “M” Series
This alloy was formulated for welding the “D” and “M” Series, due to its very high percentage of carbon and alloy additions of chromium, molybdenum and vanadium. The deposits are air-hardenedable and require high preheat temperatures for welding types D-2, M-2.
Typical Applications
• Various tool steel repairs – specific alloy selection is dependent upon the type (or Series) of tool steel being repaired
• Forming dies, cutting tools and high impact tools
Usage Procedure
When used on hardened tool steels, preheat the steel to 150°F (65°C) below the draw temperature of the steel. Base metal should be cleaned to remove oil and other contaminants. Sharp edges should be removed where possible and chipped, spalled, or fatigued metal should be removed by grinding or other mechanical means. Deposits should be peened after each pass immediately after deposition to relieve stresses. Use care in removing slag thoroughly between multiple passes.
Technical Specifications
| Item#: | CW1067 |
|---|---|
| Welding Process | Stick |
| Type | Flux Coated |
| Diameter | 1/8 " |
| Base Metal | Tool Steel |
| Hardness | 59-63 HRC |
| Polarity | DCRP/AC |
| Quantity Per Package | 5.0000 |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 5.0 lb |
