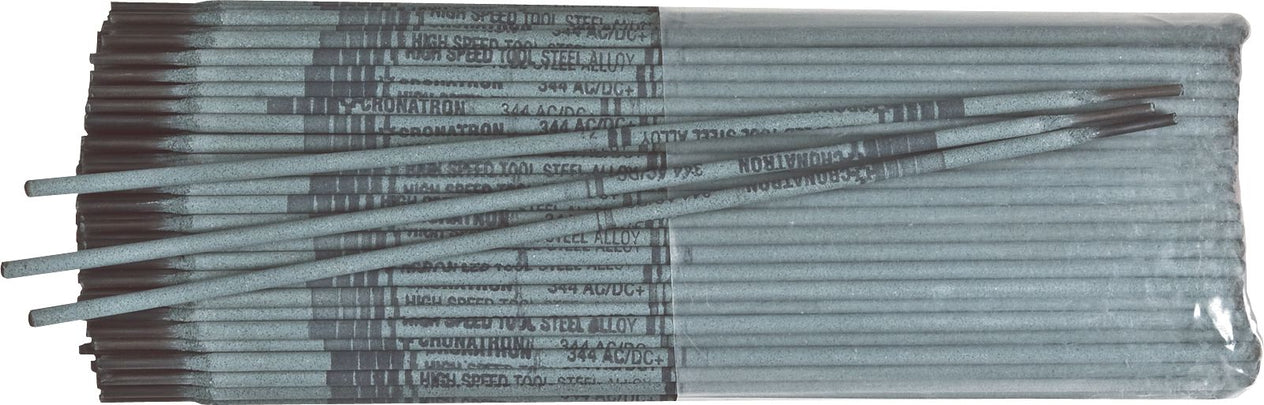

344 Tool Steel Stick Rod Electrode, Flux Coated, 59 to 63 HRC Hardness, 50 to 90 Amps, DCRP/AC Polarity, Crack-Resistant, 3/32"
(Pack of
5)
A broad selection of premium alloys to use for nearly any tool steel application and repair.
Superior Advantages
• Crack-resistant
• Premium operability
• High wear resistance
Hardness: Rc 59-63Polarity: AC or DC Reverse
“D” and “M” SeriesThis alloy was formulated for welding the “D” and “M” Series, due to its very high percentage of carbon and alloy additions of chromium, molybdenum and vanadium. The deposits are air-hardenedable and require high preheat temperatures for welding types D-2, M-2.
Typical Applications
• Various tool steel repairs – specific alloy selection is dependent upon the type (or Series) of tool steel being repaired
• Forming dies, cutting tools and high impact tools
Usage ProcedureWhen used on hardened tool steels, preheat the steel to 150°F (65°C) below the draw temperature of the steel. Base metal should be cleaned to remove oil and other contaminants. Sharp edges should be removed where possible and chipped, spalled, or fatigued metal should be removed by grinding or other mechanical means. Deposits should be peened after each pass immediately after deposition to relieve stresses. Use care in removing slag thoroughly between multiple passes.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 13-24
Frequently Bought Together
Stepdown Butt Connector 22 to 18/16 to 14 AWG
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Autobahn Ergo Magna EZ Crimper Ratcheting Terminal Crimper
Couldn't load pickup availability
345 Tool Steel TIG Wire 5/32"
Couldn't load pickup availability
346 Tool Steel TIG Wire 1/16"
Couldn't load pickup availability
349 Tool Steel TIG Wire 3/32"
Couldn't load pickup availability
40 High Silver Flux Coated Brazing Rod 1/16"
Couldn't load pickup availability
Rosin Core Solder 1/16"
Couldn't load pickup availability
Rosin Core Solder 1/16"
Couldn't load pickup availability
X-Tractalloy Welding Electrode Non-Conductive Flux 3/32 5/64
Couldn't load pickup availability
E6013 Mild/Carbon Steel Stick Electrode 1/8"
Couldn't load pickup availability
331 Mild and Carbon Steel MIG Welding Wire 0.035"
Couldn't load pickup availability
Product Description
A broad selection of premium alloys to use for nearly any tool steel application and repair.Superior Advantages
• Crack-resistant
• Premium operability
• High wear resistance
Hardness: Rc 59-63Polarity: AC or DC Reverse
“D” and “M” SeriesThis alloy was formulated for welding the “D” and “M” Series, due to its very high percentage of carbon and alloy additions of chromium, molybdenum and vanadium. The deposits are air-hardenedable and require high preheat temperatures for welding types D-2, M-2.
Typical Applications
• Various tool steel repairs – specific alloy selection is dependent upon the type (or Series) of tool steel being repaired
• Forming dies, cutting tools and high impact tools
Usage ProcedureWhen used on hardened tool steels, preheat the steel to 150°F (65°C) below the draw temperature of the steel. Base metal should be cleaned to remove oil and other contaminants. Sharp edges should be removed where possible and chipped, spalled, or fatigued metal should be removed by grinding or other mechanical means. Deposits should be peened after each pass immediately after deposition to relieve stresses. Use care in removing slag thoroughly between multiple passes.
Technical Specifications
| Item#: | CW1068 |
|---|---|
| Welding Process | Stick |
| Type | Flux Coated |
| Diameter | 3/32 " |
| Base Metal | Tool Steel |
| Hardness | 59-63 HRC |
| Polarity | DCRP/AC |
| Quantity Per Package | 5.0000 |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 5.0 lb |
