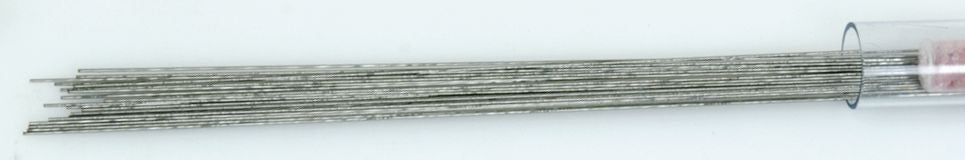

349 Tool Steel TIG Wire, Solid, 33 to 36 HRC Hardness, 100% Ar Shielding Gas, 26% Elongation, 18" Length, 0.02"
(Pack of
25)
SKU:CW4841 Item#: CW4841
Specially formulated for welding P-mold steels and most chrome-moly alloy steels.
Superior Advantages
• Crack-resistant
• Premium operability
• High wear resistance
Tensile Strength: 89,700 PSI
Yield Strength: 73,400 PSI
Elongation: 26%
Hardness: Rc 33-36
Polarity: DC Straight
Gas: 100% Ar
Typical Applications
• Die-casting dies
• Injection molds
• Compression molding of plastics and chrome-moly steels like AISI 4130, 4140, 8620 and 8640
Usage Procedure
Maintain a short arc with minimal weave. Preheat as prescribed by base metal.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer -
www.P65Warnings.ca.gov
Catalog page#: 13-24
Frequently Bought Together
SAE Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
Self-Drilling Screw Hex Head 1/4-14 x 1"
Couldn't load pickup availability
345 Tool Steel Stick Rod Electrode 3/32"
Couldn't load pickup availability
344 Tool Steel Stick Rod Electrode 3/32"
Couldn't load pickup availability
349 Tool Steel Stick Rod Electrode 3/32"
Couldn't load pickup availability
750 Martensitic Hard Facing Stick Electrode 1/8"
Couldn't load pickup availability
333 Dissimilar Steel TIG Wire 3/32"
Couldn't load pickup availability
Oxy Acetylene Fuel Gas Three Flint Striker
Couldn't load pickup availability
X-Tractalloy Welding Electrode Non-Conductive Flux 3/32 5/64
Couldn't load pickup availability
777 Stainless Steel Stick Rod Electrode 1/8"
Couldn't load pickup availability
331 Mild and Carbon Steel MIG Welding Wire 0.03"
Couldn't load pickup availability
3/8 x 3'' Red Thermapod Sealflex Heat Shrink Tube
Couldn't load pickup availability
SAE Flat Washer 3/4" 13/16" ID 1-1/2" OD
Couldn't load pickup availability
7Pc 1/4Dr Gorilla Extractor Set
Couldn't load pickup availability
3/8 x 3'' Red Thermapod Sealflex Heat Shrink Tube
Couldn't load pickup availability
SAE Flat Washer 3/4" 13/16" ID 1-1/2" OD
Couldn't load pickup availability
7Pc 1/4Dr Gorilla Extractor Set
Couldn't load pickup availability
Product Description
Specially formulated for welding P-mold steels and most chrome-moly alloy steels.Superior Advantages
• Crack-resistant
• Premium operability
• High wear resistance
Tensile Strength: 89,700 PSI
Yield Strength: 73,400 PSI
Elongation: 26%
Hardness: Rc 33-36
Polarity: DC Straight
Gas: 100% Ar
Typical Applications
• Die-casting dies
• Injection molds
• Compression molding of plastics and chrome-moly steels like AISI 4130, 4140, 8620 and 8640
Usage Procedure
Maintain a short arc with minimal weave. Preheat as prescribed by base metal.
Technical Specifications
| Item#: | CW4841 |
|---|---|
| Welding Process | TIG |
| Type | Solid |
| Diameter | .020 " |
| Length | 18 " |
| Tensile Strength | 89,700 PSI |
| Yield Strength | 73,400 PSI |
| Elongation | 26 % |
| Base Metal | Tool Steel |
| Hardness | 33-36 HRC |
| Shielding Gas | 100% Ar |
| Polarity | DCSP |
| Quantity Per Package | 25.0000 |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 0.5 lb |
