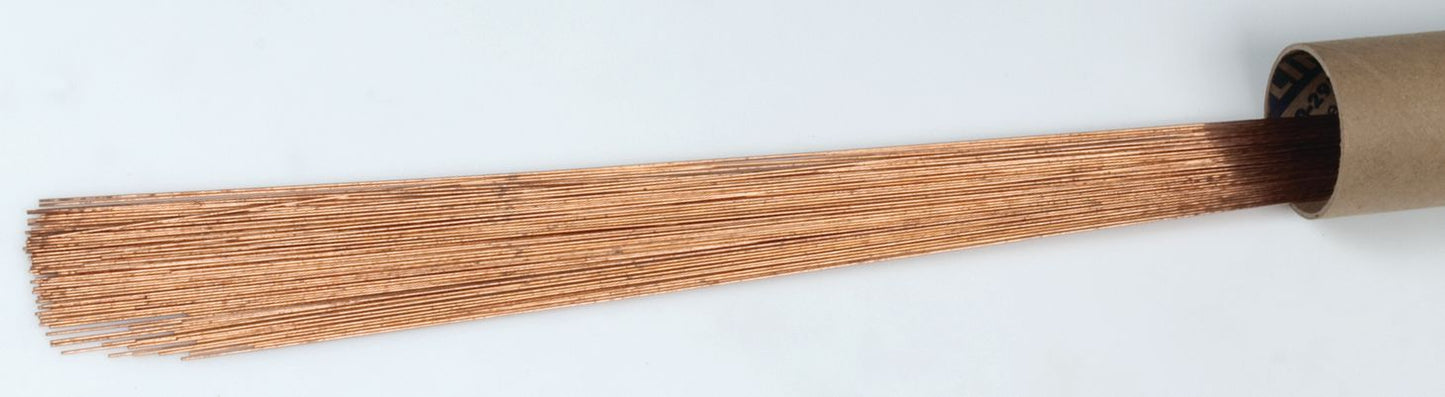

349 Tool Steel TIG Wire 0.035"
(Pack of
1.0)
Specially formulated for welding P-mold steels and most chrome-moly alloy steels.
Superior Advantages
• Crack-resistant
• Premium operability
• High wear resistance
Tensile Strength: 89,700 PSIYield Strength: 73,400 PSIElongation: 26%Hardness: Rc 33-36Polarity: DC StraightGas: 100% Ar
Typical Applications
• Die-casting dies
• Injection molds
• Compression molding of plastics and chrome-moly steels like AISI 4130, 4140, 8620 and 8640
Usage ProcedureMaintain a short arc with minimal weave. Preheat as prescribed by base metal.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer -
www.P65Warnings.ca.gov
Catalog page#: 13-24
Frequently Bought Together
Self-Drilling Screw Hex Head #10-16 x 3/4"
Couldn't load pickup availability
Self-Drilling Screw Hex Head 1/4-14 x 1"
Couldn't load pickup availability
Non-Chlorinated Brake Parts Cleaner 14oz
Couldn't load pickup availability
345 Tool Steel TIG Wire 3/32"
Couldn't load pickup availability
344 Tool Steel TIG Wire 3/32"
Couldn't load pickup availability
344 Tool Steel Stick Rod Electrode 1/8"
Couldn't load pickup availability
Pipe Wrap Around
Couldn't load pickup availability
Heat Stick 1050F Degrees
Couldn't load pickup availability
777 Stainless Steel Stick Rod Electrode 1/8"
Couldn't load pickup availability
8-7504 Plasma Cutting Tip
Couldn't load pickup availability
20463 Plasma Cutting Swirl Baffle
Couldn't load pickup availability
177890 Plasma Cutting Tip
Couldn't load pickup availability
Product Description
Specially formulated for welding P-mold steels and most chrome-moly alloy steels.Superior Advantages
• Crack-resistant
• Premium operability
• High wear resistance
Tensile Strength: 89,700 PSIYield Strength: 73,400 PSIElongation: 26%Hardness: Rc 33-36Polarity: DC StraightGas: 100% Ar
Typical Applications
• Die-casting dies
• Injection molds
• Compression molding of plastics and chrome-moly steels like AISI 4130, 4140, 8620 and 8640
Usage ProcedureMaintain a short arc with minimal weave. Preheat as prescribed by base metal.
Technical Specifications
| Item#: | CW1986 |
|---|---|
| Welding Process | TIG |
| Type | Solid |
| Diameter | .035 " |
| Length | 36 " |
| Tensile Strength | 89,700 PSI |
| Yield Strength | 73,400 PSI |
| Elongation | 26 % |
| Base Metal | Tool Steel |
| Hardness | 33-36 HRC |
| Shielding Gas | 100% Ar |
| Polarity | DCSP |
| Quantity Per Package | 1.0000 |
| UNSPSC #: | 23271810 |
| TAA Compliant: | No |
| Weight: | 1.5 lb |
