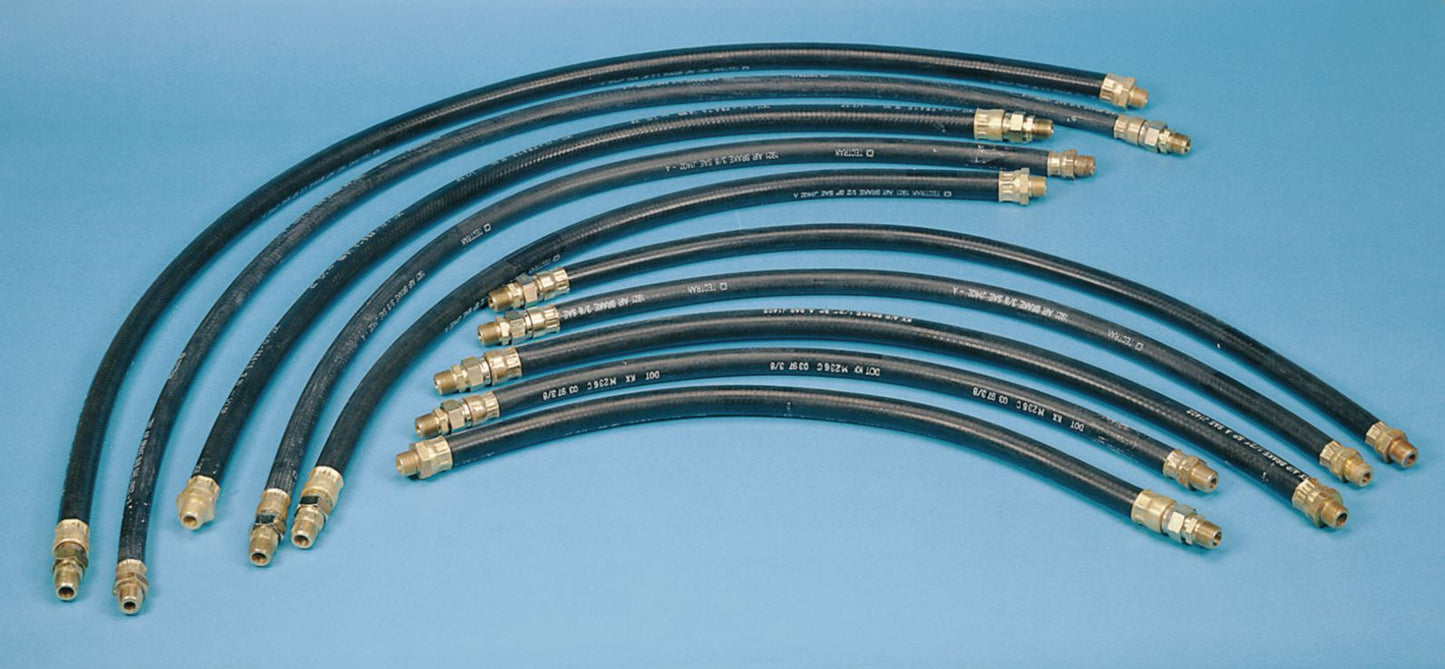

Air Brake Jumper Hose Assembly 1/2" ID x 28"
(Pack of
1.0)
• Pre-assembled air brake hose with attached 3/8" male pipe rigid x male pipe swivel fittings, ready for immediate installation
• Available in popular lengths
• Black elastomeric hose with dual braids of four interwoven spirals for great flexibility and improved twist resistance
• Resistant to UV light and ozone
• Meets or exceeds SAE J1402 Type A, D.O.T. FMVSS 106 – Brake Hoses, 49 CFR 571.106
• Operating pressures up to 225 PSI, maximum burst pressure 900 PSI
• Operating temperature range: –40°F to +200°F (–40°C to +93°C)
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 23-14
Frequently Bought Together
Zinc Steel Hydraulic Brake Lines 5/16" x 40"
Couldn't load pickup availability
Eclipse Air Brake Coil Hose Assembly 1/2" OD x 12'
Couldn't load pickup availability
Zinc Steel Hydraulic Brake Lines 3/16" x 60"
Couldn't load pickup availability
DOT Compression Connector Male Brass 1/4 x 1/4"
Couldn't load pickup availability
Ball Check Grease Fitting 45°
Couldn't load pickup availability
Silicone Heater/Coolant Hose Clamp 11/16 to 1-1/4"
Couldn't load pickup availability
Hose Clamp 301 SS 2-9/16 to 3-1/2"
Couldn't load pickup availability
Fuel Line Hose 3/16" ID x 25'
Couldn't load pickup availability
Silicone Heater/Coolant Hose Clamp SS 1-1/16 to 2"
Couldn't load pickup availability
Non-Perforated Clamp 316 SS #6 1/2 to 13/16"
Couldn't load pickup availability
DOT Swivel Elbow Male 360° Brass 1/4 x 1/4-18
Couldn't load pickup availability
MegaCrimp Crimp-On Coupling 3/8" x 9/16-18
Couldn't load pickup availability
Non-Chlorinated Brake Parts Cleaner 14oz
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M12
Couldn't load pickup availability
Product Description
• Pre-assembled air brake hose with attached 3/8" male pipe rigid x male pipe swivel fittings, ready for immediate installation• Available in popular lengths
• Black elastomeric hose with dual braids of four interwoven spirals for great flexibility and improved twist resistance
• Resistant to UV light and ozone
• Meets or exceeds SAE J1402 Type A, D.O.T. FMVSS 106 – Brake Hoses, 49 CFR 571.106
• Operating pressures up to 225 PSI, maximum burst pressure 900 PSI
• Operating temperature range: –40°F to +200°F (–40°C to +93°C)
Technical Specifications
| Item#: | 64377 |
|---|---|
| Category/Performance | Air Brake Hose Assemblies |
| I.D. | 1/2 " |
| Size | 28 " |
| Industry Rating 1 | SAE J1402, Type A |
| Industry Rating 2 | FMVSS 106-Brake Hoses, 49 CFR 571.106y |
| Group | Air Brake Jumper Hose Assemblies |
| Working Pressure | 225 PSI |
| Burst Pressure | 900 PSI |
| Length | 28 " |
| Temperature | -20F to +200F |
| Hose Reinforcement | 2 Layers of 4 Interwoven Spirals |
| Hose Cover Material | Elastomeric |
| UNSPSC #: | 25171700 |
| TAA Compliant: | Yes |
| Weight: | 0.79 lb |
