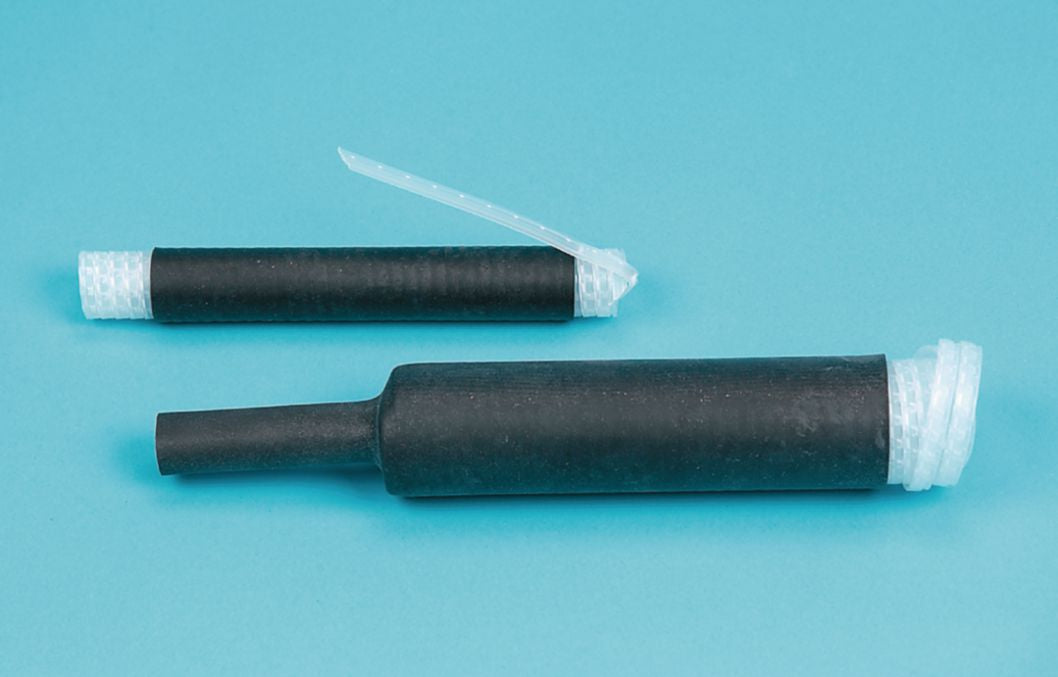

Cold Shrink Tubing 10 to 1/0 AWG Black
(Pack of
1)
• Does not require heat to install – remove (unwind) the plastic core and tubing will shrink to seal the connection
• Safe and simple – perfect for installations where heat or flame can’t be used
• EPDM rubber seals tight and retains resiliency and pressure on the connection
• Water-resistant – meets ANSI C119.1 water seal requirements
• Use as primary insulation on solid rubber and plastic-insulated wire and cable; rated to 1,000V
• Use for physical protection and as a moisture seal for couplings, hoses, connections and terminal lugs
• For cable jacket and sheath repairs
Note: Do not cut the length of the tubing. It is intended to be used full length.
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog page#: 17-43
Frequently Bought Together
Cold Shrink Tubing 2/0 to 250 MCM Black
Couldn't load pickup availability
Connector Housing 20A 2-Wire Tower
Couldn't load pickup availability
Stepdown Butt Connector 24 to 22/22 to 18 AWG
Couldn't load pickup availability
Cable Tie 11.41" Black
Couldn't load pickup availability
Self-Drilling Screw Hex Head 1/4-14 x 1"
Couldn't load pickup availability
Self-Drilling Screw Hex Head #10-16 x 3/4"
Couldn't load pickup availability
Lock Washer Alloy Steel 3/8"
Couldn't load pickup availability

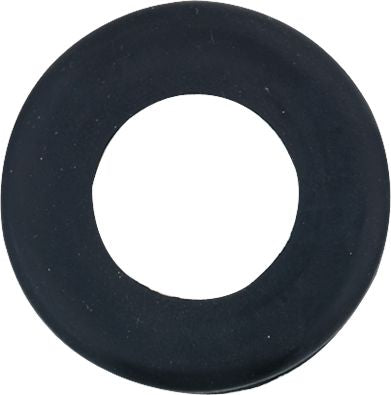

Rubber Grommet 11/16" ID
Couldn't load pickup availability
Heat Shrink Tubing 24 to 22 AWG Clear
Couldn't load pickup availability
Heat Shrink Tubing 16 to 14 AWG Blue
Couldn't load pickup availability
Product Description
• Does not require heat to install – remove (unwind) the plastic core and tubing will shrink to seal the connection• Safe and simple – perfect for installations where heat or flame can’t be used
• EPDM rubber seals tight and retains resiliency and pressure on the connection
• Water-resistant – meets ANSI C119.1 water seal requirements
• Use as primary insulation on solid rubber and plastic-insulated wire and cable; rated to 1,000V
• Use for physical protection and as a moisture seal for couplings, hoses, connections and terminal lugs
• For cable jacket and sheath repairs
Note: Do not cut the length of the tubing. It is intended to be used full length.
Technical Specifications
| Item#: | 29167 |
|---|---|
| Wire Gauge Coverage | 10-1/0 |
| I.D. Before Shrinkage | 0.82 " |
| I.D. After Shrinkage | 0.10 " |
| Length | 8 " |
| Voltage | 1000 V |
| Approvals | Meets ANSI C119.1 water seal requirements |
| Style | Cold shrink tubing |
| Type | Torches and cold shrink tubing |
| UNSPSC #: | 40183000 |
| TAA Compliant: | Yes |
| Weight: | 0.17 lb |
Product Restrictions
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
