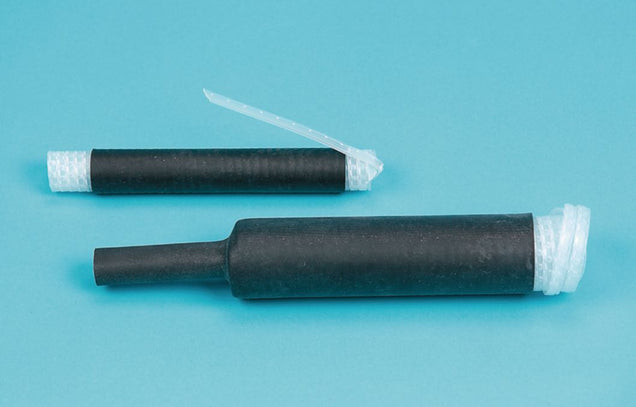

Cold Shrink Tubing 2/0 to 250 MCM Black
(Pack of
1.0)
• Does not require heat to install – remove (unwind) the plastic core and tubing will shrink to seal the connection
• Safe and simple – perfect for installations where heat or flame can’t be used
• EPDM rubber seals tight and retains resiliency and pressure on the connection
• Water-resistant – meets ANSI C119.1 water seal requirements
• Use as primary insulation on solid rubber and plastic-insulated wire and cable; rated to 1,000V
• Use for physical protection and as a moisture seal for couplings, hoses, connections and terminal lugs
• For cable jacket and sheath repairs
Note: Do not cut the length of the tubing. It is intended to be used full length.
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog page#: 17-43
Frequently Bought Together
Cold Shrink Tubing 500 to 800 MCM Black
Couldn't load pickup availability
Cable Tie 11.41" Black
Couldn't load pickup availability
Cable Tie 13.38" Black
Couldn't load pickup availability
Cable Tie 13.38" Black
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/4-20
Couldn't load pickup availability
Qwik Stik® Electrolyte Powder Mix Grape
Couldn't load pickup availability
Utility Knife, Folding , 4" Closed
Couldn't load pickup availability

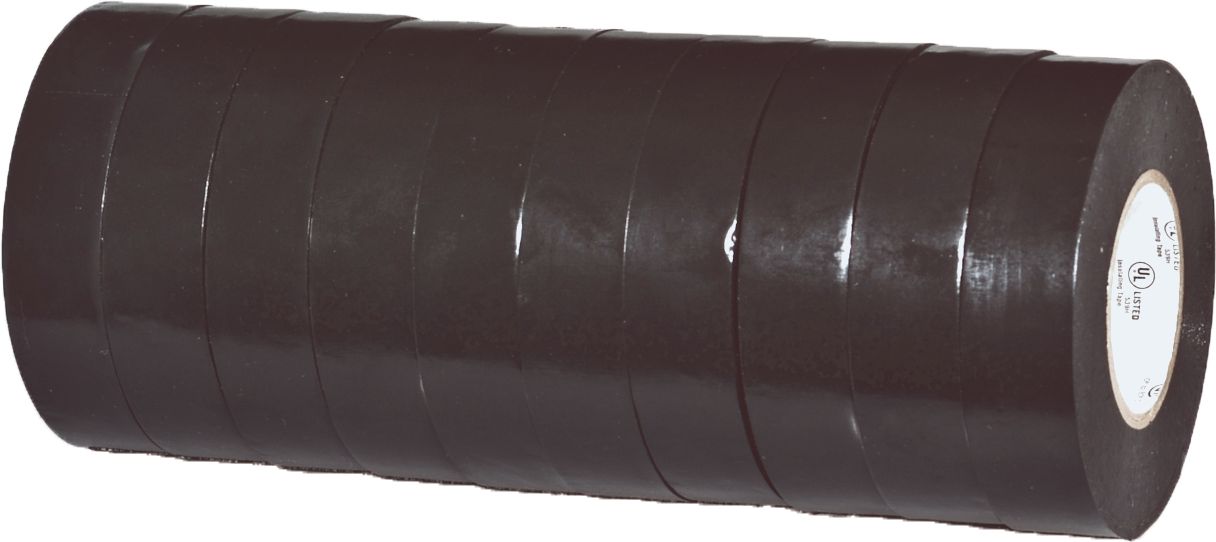

Vinyl Electrical Tape Black 3/4" x 66'
Couldn't load pickup availability
Heat Shrink Tubing 8 to 2 AWG Black
Couldn't load pickup availability
Split Wire Loom Polyethylene Black 0.5" ID
Couldn't load pickup availability
Product Description
• Does not require heat to install – remove (unwind) the plastic core and tubing will shrink to seal the connection• Safe and simple – perfect for installations where heat or flame can’t be used
• EPDM rubber seals tight and retains resiliency and pressure on the connection
• Water-resistant – meets ANSI C119.1 water seal requirements
• Use as primary insulation on solid rubber and plastic-insulated wire and cable; rated to 1,000V
• Use for physical protection and as a moisture seal for couplings, hoses, connections and terminal lugs
• For cable jacket and sheath repairs
Note: Do not cut the length of the tubing. It is intended to be used full length.
Technical Specifications
| Item#: | 29168 |
|---|---|
| Wire Gauge Coverage | 2/0-250kcmil |
| I.D. Before Shrinkage | 1.18 " |
| I.D. After Shrinkage | 0.55 " |
| Length | 9 " |
| Voltage | 1000 V |
| Approvals | Meets ANSI C119.1 water seal requirements |
| Style | Cold shrink tubing |
| Type | Torches and cold shrink tubing |
| UNSPSC #: | 40183000 |
| TAA Compliant: | Yes |
| Weight: | 0.17 lb |
