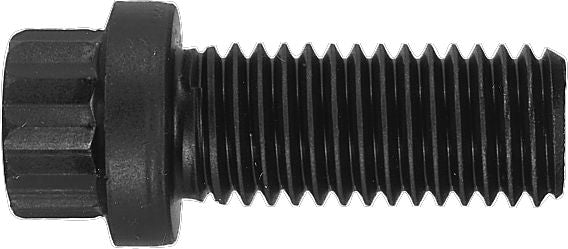

12-Point Flange Counterbore Screw, Alloy Steel, Plain Finish, Fine Thread, 5/16-24 x 1/2"
(Pack of
50)
• Countr-Bor Screws generate higher clamp loads because they are torqued through an external drive (socket); standard hex socket head screws are torqued by an internal drive (hex key)
• Heat-treated alloy steel
• Class 3A UNC threads
• Tensile strength: 180,000 PSI (up to and including 1/2" dia.); 170,000 PSI (over 1/2" dia.)
• ANSI Specification B1.1
• All dimensional properties meet IFI-115 and SAE J58 specifications
• Lawson Countr-Bor Screws can replace any standard hex socket head screw
• 12-point screw fits into same counter-bore hole – use standard 12 point socket
NOTE: Use a wrench or socket size which corresponds to the diameter of the screw. For example, a 5/16" dia. screw is installed by using a 5/16", 12 point standard socket.
Frequently Bought Together
Hex Cap Screw Grade 8 Alloy Steel 1/4-20 x 1"
Couldn't load pickup availability
Hex Cap Screw Grade 8 3/8-16 x 1-1/2"
Couldn't load pickup availability
Hex Cap Screw Grade 8 1/4-20 x 1"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability

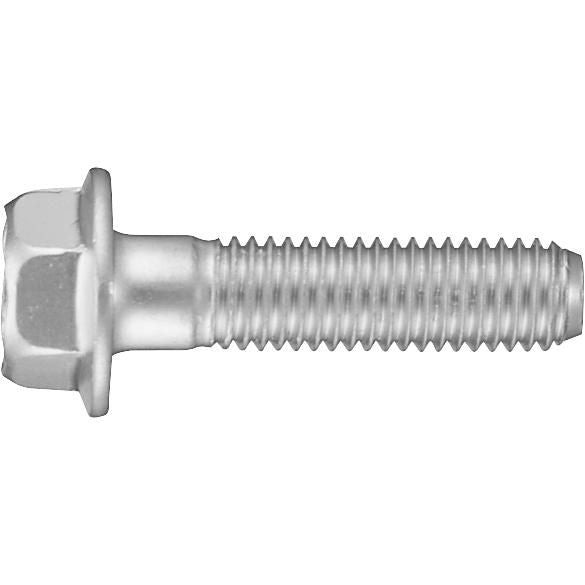

Hex Flange Bolt Grade 10.9 M8-1.25 x 25mm
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M6-1 x 20mm
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M8-1.25 x 20mm
Couldn't load pickup availability
Nylon Cable Tie 11.75" Black
Couldn't load pickup availability
Nylon Cable Tie 15.5" Black
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Clear
Couldn't load pickup availability
Product Description
• Countr-Bor Screws generate higher clamp loads because they are torqued through an external drive (socket); standard hex socket head screws are torqued by an internal drive (hex key)• Heat-treated alloy steel
• Class 3A UNC threads
• Tensile strength: 180,000 PSI (up to and including 1/2" dia.); 170,000 PSI (over 1/2" dia.)
• ANSI Specification B1.1
• All dimensional properties meet IFI-115 and SAE J58 specifications
• Lawson Countr-Bor Screws can replace any standard hex socket head screw
• 12-point screw fits into same counter-bore hole – use standard 12 point socket
NOTE: Use a wrench or socket size which corresponds to the diameter of the screw. For example, a 5/16" dia. screw is installed by using a 5/16", 12 point standard socket.
Technical Specifications
| Item#: | 55917 |
|---|---|
| Type | Counter-Bor |
| Diameter | 5/16 " |
| Thread Pitch | 24 |
| Thread | Fine |
| Length | 1/2 " |
| Finish | Plain |
| Material | Alloy Steel |
| Head Style | 12-Point Flange |
| Size | 5/16-24 " |
| Specifications | IFI-115 |
| Tensile Strength | 180,000 PSI |
| UNSPSC #: | 31161620 |
| TAA Compliant: | Yes |
| Weight: | 0.92 lb |
