Eclipse™ Air Brake Coil Hose Assembly, 1/2" OD, 15' Length, Red and Blue, 150PSI, SAE J844C, Type 3B, 48" Pigtail
(Pack of
1)
SKU:1174507 Item#: 1174507
Eclipse™ air brake hose coils offer significantly improved abrasion resistance over traditional nylon coils, extending service life and replacement intervals. More flexible than nylon, Eclipse™ air brake coils are easier to extend and install, and place less strain on end connectors.
• Superior abrasion resistance
• More flexible than nylon hose coils
• Meets DOT-FMVSS 106 (49 CFR571.106) and SAE J844
• Temperature range: –65°F to +200°F
• Construction: 100% polyamid with polyester yarn reinforcement
• Brass end fittings (male NPT) with corrosion resistant spring guards
• Used for air brake connections between towed and towing motor vehicles (tractor to trailer)
Frequently Bought Together
Zinc Steel Hydraulic Brake Lines 3/16" x 8"
Couldn't load pickup availability
Cupro-Nickel Brake Line Coiled Tube 3/16" OD x 25'
Couldn't load pickup availability
3270-0816-0100
Couldn't load pickup availability

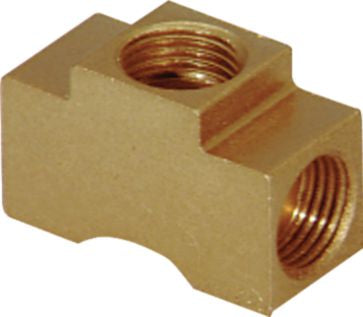

DOT Union Tee Brass 1/4 x 1/4 x 1/4"
Couldn't load pickup availability
Silicone Heater/Coolant Hose Clamp 7/16 to 25/32"
Couldn't load pickup availability
DOT Compression Sleeve Brass 3/8"
Couldn't load pickup availability
Silicone Heater/Coolant Hose Clamp SS 1-1/16 to 2"
Couldn't load pickup availability
Hose Clamp 304 SS 2-5/16 to 3-1/4"
Couldn't load pickup availability
Non-Perforated Clamp 316 SS #16 11/16 to 1-1/2"
Couldn't load pickup availability
Pipe Coupling Brass 1/4-18 x 1/4-18
Couldn't load pickup availability
Quick Disconnect Coupler Steel 1/4" x 1/4-18
Couldn't load pickup availability

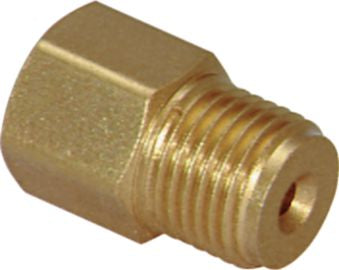

DOT Connector Male Brass 1/4 x 1/8-27
Couldn't load pickup availability
3/16" - 1/2" Cryonitride Spiral Fluted Step Drill - 5/16" Shank
Couldn't load pickup availability
Hex Cap Screw Property Class 12.9 M20-2.5 x 80mm
Couldn't load pickup availability
Hex Cap Screw Property Class 10.9 M6-1 x 35mm
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 5/8-11
Couldn't load pickup availability
Interchangeable Hex Bit Set 20Pc Torx
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/2"
Couldn't load pickup availability
Product Description
Eclipse™ air brake hose coils offer significantly improved abrasion resistance over traditional nylon coils, extending service life and replacement intervals. More flexible than nylon, Eclipse™ air brake coils are easier to extend and install, and place less strain on end connectors.• Superior abrasion resistance
• More flexible than nylon hose coils
• Meets DOT-FMVSS 106 (49 CFR571.106) and SAE J844
• Temperature range: –65°F to +200°F
• Construction: 100% polyamid with polyester yarn reinforcement
• Brass end fittings (male NPT) with corrosion resistant spring guards
• Used for air brake connections between towed and towing motor vehicles (tractor to trailer)
Technical Specifications
| Item#: | 1174507 |
|---|---|
| Manufacturer Model #: | 15CA48-12 |
| Category / Performance | Nylon Air Brake Coiled Hose Assemblies |
| Industry Rating 1 | SAE J844C, Type 3B |
| Industry Rating 2 | DOT-FMVSS 106 (49 CFR 571.106) |
| Hose O.D. | 1/2 " |
| Connection Type A x B | Male NPT x Male NPT |
| Fitting Dimension A | 1/2-14 |
| Fitting Dimension B | 1/2-14 |
| Working Pressure | 150 PSI |
| O.D. | 1/2 " |
| Extended Length | 15 ft |
| Color | Red and Blue |
| Temperature | -65° to +200° F |
| Hose Reinforcement | Polyester yarn |
| Hose Cover Material | Polyamid |
| Pigtail Length | 48 " |
| UNSPSC #: | 25171700 |
| TAA Compliant: | No |
| Weight: | 4.0 lb |
