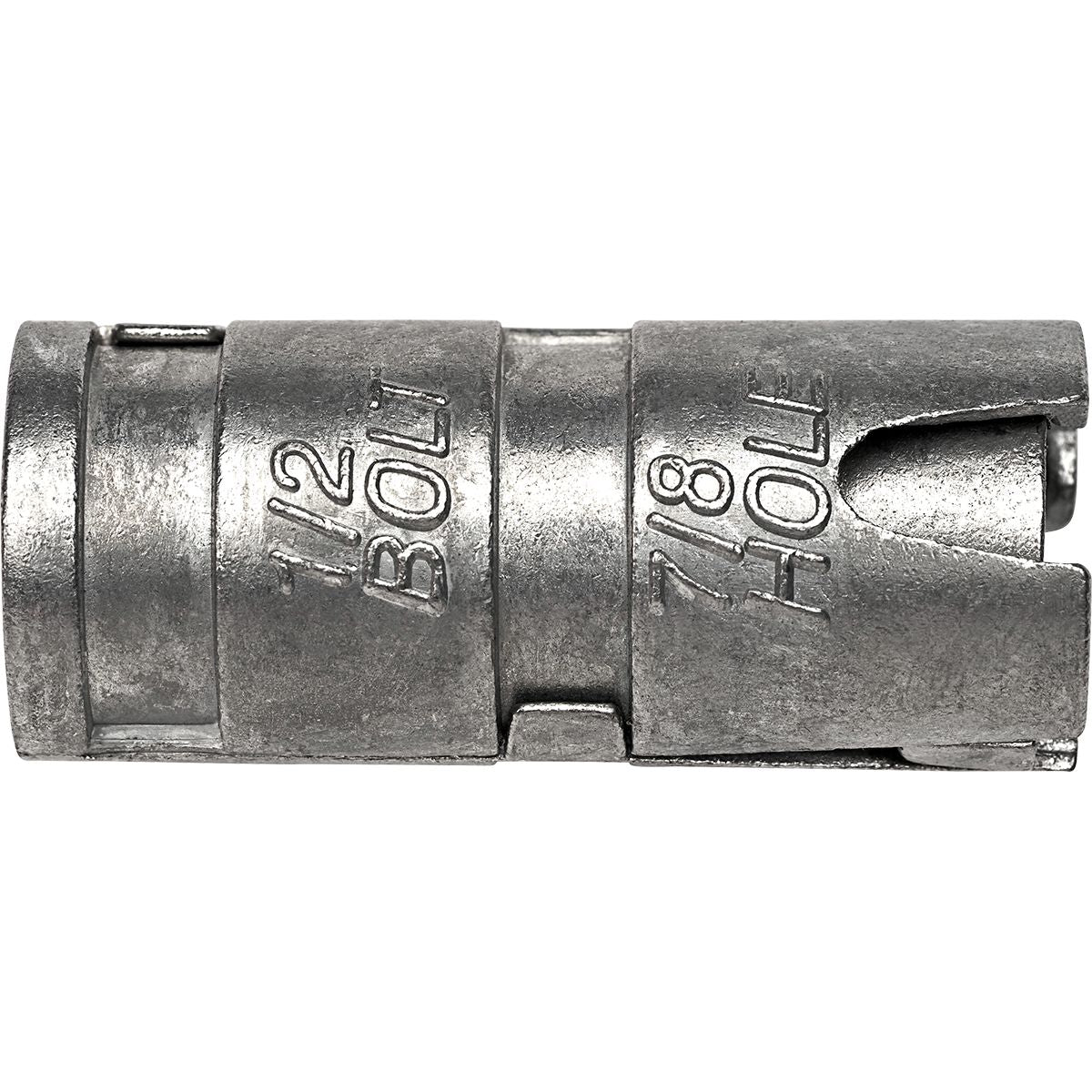

Expansion Shield Anchor for Machine Bolts, Alloy Steel, Zinc Finish, 7/8" Drill Size, 1/2"
(Pack of
25)
100% rustproof zinc alloy
1. Place anchor, nut end first, into hole, flush with surface.
2. Position object to be fastened and bolt into place.
3. Length of bolt should equal thickness of material being fastened, plus shield length.
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog page#: 6-32
Frequently Bought Together
Wedge Type Stud Bolt Anchor Steel 3/8 x 3-3/4"
Couldn't load pickup availability
Wing-Type Toggle Bolt Anchor Steel 1/4-20 x 6"
Couldn't load pickup availability
Masonry Anchor Hex Washer Head Steel 1/4 x 3-1/4"
Couldn't load pickup availability
Security Anchor Steel 3/8 x 5"
Couldn't load pickup availability
Lead Wood Screw Anchor 3/16 x 1-1/2"
Couldn't load pickup availability
Lag Screw Shield Anchor Short Style 3/8 x 2"
Couldn't load pickup availability
Hex Nut Grade 8 Steel 1/2-13
Couldn't load pickup availability
Hex Nut Grade 8 Steel 1/4-20
Couldn't load pickup availability
Hex Nut Grade 8 Steel 5/8-11
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M12
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Lock Washer Alloy Steel 3/8"
Couldn't load pickup availability
Product Description
100% rustproof zinc alloy1. Place anchor, nut end first, into hole, flush with surface.
2. Position object to be fastened and bolt into place.
3. Length of bolt should equal thickness of material being fastened, plus shield length.
Technical Specifications
| Item#: | 84046 |
|---|---|
| Anchor Size | 1/2 " |
| Type | Expansion Shield Anchor |
| Material | Alloy Steel |
| Finish | Zinc |
| Proof Test Load | 1,850 lb |
| Drill Size | 7/8 " |
| Minimum Drill Depth | 2-1/2 " |
| UNSPSC #: | 31162101 |
| TAA Compliant: | Yes |
| Weight: | 2.69 lb |
