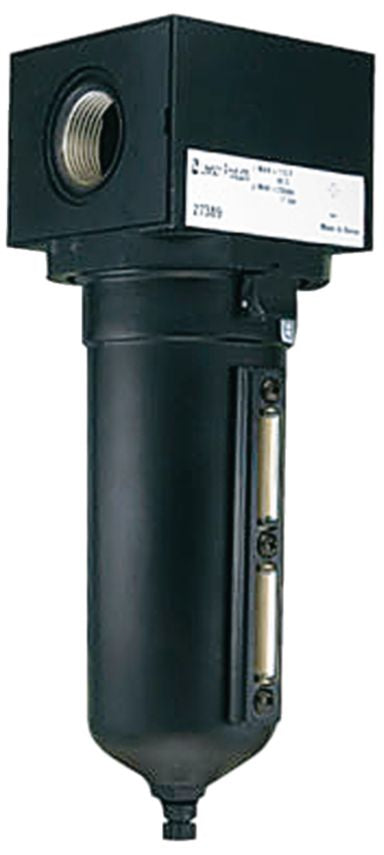

Filter, 1" Body, 1-11/12 Female NPT, 18oz, 300ft³/min, 250PSI
(Pack of
1)
SKU:27389 Item#: 27389
All modules can be completely assembled and disassembled with ordinary hex keys. No tools required for normal maintenance.
• 40 micron filter element standard• Solid all-metal body and clear polycarbonate bowl (1" body size is all metal with a polycarbonate sight)
Two-stage filtration process removes dirt, rust, pipe scale and 99% of condensed water. Features a large filter media surface for increased flow and fingertip twist drain system (an optional automatic drain can be easily installed).
Couldn't load pickup availability
Catalog page#: 8-171
Frequently Bought Together
Filter 3/8-18 Female NPT
Couldn't load pickup availability
GLS427
Couldn't load pickup availability
GLBR600-4
Couldn't load pickup availability
Ball Check Grease Fitting 90°
Couldn't load pickup availability
Quick Disconnect Coupler Steel 1/4" x 1/4-18
Couldn't load pickup availability
DOT Compression Elbow Male 90° Brass 3/8 x 1/4"
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/2" x 1/2-14
Couldn't load pickup availability
Quick Disconnect Coupler Brass 1/4" x 1/4-18
Couldn't load pickup availability
Barb-Lok Hose End 1/2" (-8) x 3/8-18 (-6)
Couldn't load pickup availability
Stepdown Butt Connector 16 to 14/12 to 10 AWG
Couldn't load pickup availability
Self-Drilling Screw Hex Head #10-16 x 3/4"
Couldn't load pickup availability
Master Series Penlight Flashlight
Couldn't load pickup availability
Product Description
All modules can be completely assembled and disassembled with ordinary hex keys. No tools required for normal maintenance.• 40 micron filter element standard• Solid all-metal body and clear polycarbonate bowl (1" body size is all metal with a polycarbonate sight)
Two-stage filtration process removes dirt, rust, pipe scale and 99% of condensed water. Features a large filter media surface for increased flow and fingertip twist drain system (an optional automatic drain can be easily installed).
Technical Specifications
| Item#: | 27389 |
|---|---|
| Description | Filter |
| Body Size | 1 " |
| Maximum Flow | 300 ft³/min |
| Maximum Pressure | 250 PSI |
| Port Style | Female NPT |
| Port Size | 1-11-1/2 |
| Bowl Capacity | 18 Oz. |
| Replacement Polycarbonate Bowl | - |
| Replacement Metal Bowl | - |
| UNSPSC #: | 27131600 |
| TAA Compliant: | Yes |
| Weight: | 4.05 lb |
