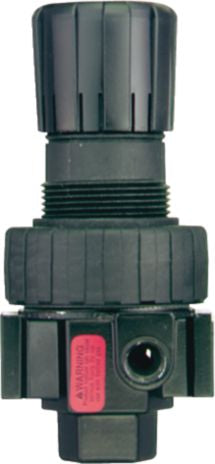

Regulator, 1/2" Body, 1/2-14 Female NPT, 90ft³/min, 250PSI
(Pack of
1)
All modules can be completely assembled and disassembled with ordinary hex keys. No tools required for normal maintenance.
• Full flow 1/4" gauge ports can be used as additional outlets
Rolling diaphragm design provides quick response and accurate pressure regulation. Space-saving non-rising knob is removable for tamper-proof operation.
Couldn't load pickup availability
Catalog page#: 8-172
Frequently Bought Together
Pressure Gauge Center Back Mount 0 to 30PSI
Couldn't load pickup availability
Replacement Air Filter Element 40 Micron
Couldn't load pickup availability
Mounting Bracket Modular 1"
Couldn't load pickup availability
Z Series Crimp-On Hose End 3/8" x 9/16-18
Couldn't load pickup availability
Hose Clamp 301 SS 9/16 to 1-1/4"
Couldn't load pickup availability
DOT Connector Male Brass 3/8 x 1/4-18
Couldn't load pickup availability
Hose Barb Brass 5/8" x 1/2-14
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/2" x 1/2-14
Couldn't load pickup availability
Nipple, Schrader, 1/4'' Body, 1/4-18 Male NPT, Steel
Couldn't load pickup availability
Superbutt Connector 22 to 18 AWG Red
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
Superbutt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
Product Description
All modules can be completely assembled and disassembled with ordinary hex keys. No tools required for normal maintenance.• Full flow 1/4" gauge ports can be used as additional outlets
Rolling diaphragm design provides quick response and accurate pressure regulation. Space-saving non-rising knob is removable for tamper-proof operation.
Technical Specifications
| Item#: | 98873 |
|---|---|
| Description | Regulator |
| Body Size | 1/2 " |
| Maximum Flow | 90 ft³/min |
| Maximum Pressure | 250 PSI |
| Port Style | Female NPT |
| Port Size | 1/2-14 |
| UNSPSC #: | 27131600 |
| TAA Compliant: | Yes |
| Weight: | 2.52 lb |
