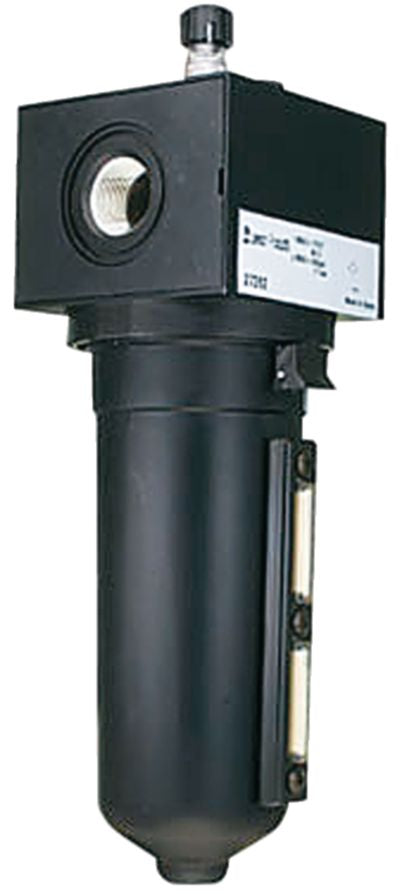

Lubricator, 1" Body, 1-11-1/2 Female NPT, 18oz, 260ft³/min, 250PSI
(Pack of
1)
SKU:27393 Item#: 27393
All modules can be completely assembled and disassembled with ordinary hex keys. No tools required for normal maintenance.
• Mist adjustment requires no tools (except 1/8" and 1", which require use of a screwdriver)
• Solid all-metal body
• Clear polycarbonate bowl
• 1" body size is all metal with a polycarbonate sight
Ideal for lubrication of air motors, tools and valves where air flow is encountered, these lubricators provide proportional oil delivery over a wide range of air flow. Generates oil particles of five microns or smaller, keeping the microscopic oil particles in suspension for system-wide lubrication.
Couldn't load pickup availability
Catalog page#: 8-172
Frequently Bought Together
Pressure Gauge Center Back Mount 0 to 30PSI
Couldn't load pickup availability
Replacement Air Filter Element 40 Micron
Couldn't load pickup availability
Mounting Bracket Modular 1"
Couldn't load pickup availability
Crimp-On Hose Coupling 1/2" x 3/4-16
Couldn't load pickup availability
DOT Elbow Male Nylon 1/4 x 1/8-27
Couldn't load pickup availability
Ball Check Grease Fitting 90°
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/2" x 1/2-14
Couldn't load pickup availability
Hose Barb Brass 5/16" x 1/4-18
Couldn't load pickup availability
Hose Barb Brass 1/4" x 1/8-27
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M12
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M10
Couldn't load pickup availability
Superbutt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
Product Description
All modules can be completely assembled and disassembled with ordinary hex keys. No tools required for normal maintenance.• Mist adjustment requires no tools (except 1/8" and 1", which require use of a screwdriver)
• Solid all-metal body
• Clear polycarbonate bowl
• 1" body size is all metal with a polycarbonate sight
Ideal for lubrication of air motors, tools and valves where air flow is encountered, these lubricators provide proportional oil delivery over a wide range of air flow. Generates oil particles of five microns or smaller, keeping the microscopic oil particles in suspension for system-wide lubrication.
Technical Specifications
| Item#: | 27393 |
|---|---|
| Description | Lubricator |
| Body Size | 1 " |
| Maximum Flow | 260 ft³/min |
| Maximum Pressure | 250 PSI |
| Port Style | Female NPT |
| Port Size | 1-11-1/2 |
| Bowl Capacity | 18 Oz. |
| Replacement Polycarbonate Bowl | - |
| Replacement Metal Bowl | - |
| UNSPSC #: | 27131600 |
| TAA Compliant: | No |
| Weight: | 4.04 lb |
