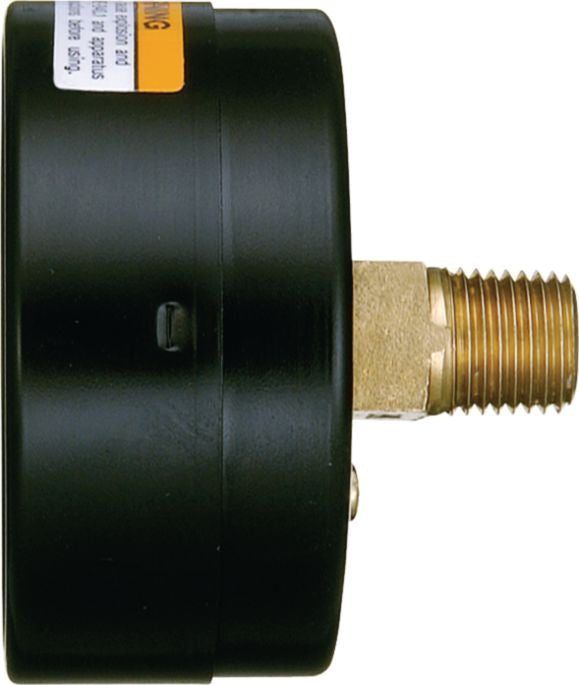

Pressure Gauge Center Back Mount, Glass Lens, Bronze Bourdon Tube, Black Painted Steel Outer Case, 1/4-18 Male NPT, 0 to 30PSI
(Pack of
1)
SKU:29655 Item#: 29655
• Pressure is measured in PSI (pounds per square inch)
• Glass lens
• Bronze Bourdon pressure tube
• Brass 1/4–18 male NPT connection (lower or center back mount available)
• Range selection: choose a gauge with a pressure range twice the standard working pressure of the system
• ±2% mid-scale accuracy – Grade B (±3% accuracy over the first and last quarters of the scale)
• Temperature range: –40°F to +150°F
• Black painted steel outer case
• 2-1/2" dial
• Utility gauges provide economical, reliable service in a wide variety of applications including pumps, compressors and other equipment• Utility gauges measure positive pressure of non-corrosive gases and liquids
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 9-69
Frequently Bought Together
Metal Bowl Guard 1/2"
Couldn't load pickup availability
Replacement Air Line Filter Element 40 Micron
Couldn't load pickup availability
Filter 1/4-18 Female NPT
Couldn't load pickup availability
DOT Swivel Elbow Male 360° Brass 3/8 x 1/4-18
Couldn't load pickup availability
DOT Elbow Male Nylon 3/8 x 1/4-18
Couldn't load pickup availability
Hose Clamp 301 SS 1-5/16 to 2-1/4"
Couldn't load pickup availability
Hose Barb Brass 3/4" x 1/2-14
Couldn't load pickup availability
Garden Hose Adapter Brass 3/4-14 x 3/4-11-1/2
Couldn't load pickup availability
Hose Barb Brass 5/8" x 1/2-14
Couldn't load pickup availability
Locknut with Nylon Insert Grade 8 5/16-18
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/4-20
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Product Description
• Pressure is measured in PSI (pounds per square inch)• Glass lens
• Bronze Bourdon pressure tube
• Brass 1/4–18 male NPT connection (lower or center back mount available)
• Range selection: choose a gauge with a pressure range twice the standard working pressure of the system
• ±2% mid-scale accuracy – Grade B (±3% accuracy over the first and last quarters of the scale)
• Temperature range: –40°F to +150°F
• Black painted steel outer case
• 2-1/2" dial
• Utility gauges provide economical, reliable service in a wide variety of applications including pumps, compressors and other equipment• Utility gauges measure positive pressure of non-corrosive gases and liquids
Technical Specifications
| Item#: | 29655 |
|---|---|
| Description | Pressure Gauge |
| Type | Center Back Mount |
| Thread Style | Male NPT |
| Thread Size | 1/4-18 " |
| Pressure Range | 0 - 30 PSI |
| UNSPSC #: | 27131600 |
| TAA Compliant: | No |
| Weight: | 0.4 lb |
