Pressure Gauge Lower Mount, Glass Lens, Bronze Bourdon Tube, Black Painted Steel Outer Case, 1/4-18 Male NPT, 0 to 160PSI
(Pack of
1)
• Pressure is measured in PSI (pounds per square inch)
• Glass lens
• Bronze Bourdon pressure tube
• Brass 1/4–18 male NPT connection (lower or center back mount available)
• Range selection: choose a gauge with a pressure range twice the standard working pressure of the system
• ±2% mid-scale accuracy – Grade B (±3% accuracy over the first and last quarters of the scale)
• Temperature range: –40°F to +150°F
• Black painted steel outer case
• 2-1/2" dial
• Utility gauges provide economical, reliable service in a wide variety of applications including pumps, compressors and other equipment• Utility gauges measure positive pressure of non-corrosive gases and liquids
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 9-69
Frequently Bought Together

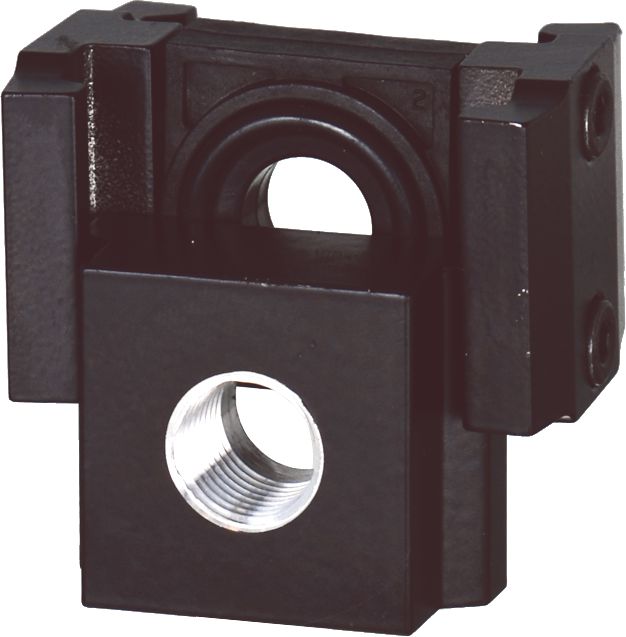

Port Block Connector 3/8-18 Female NPT
Couldn't load pickup availability

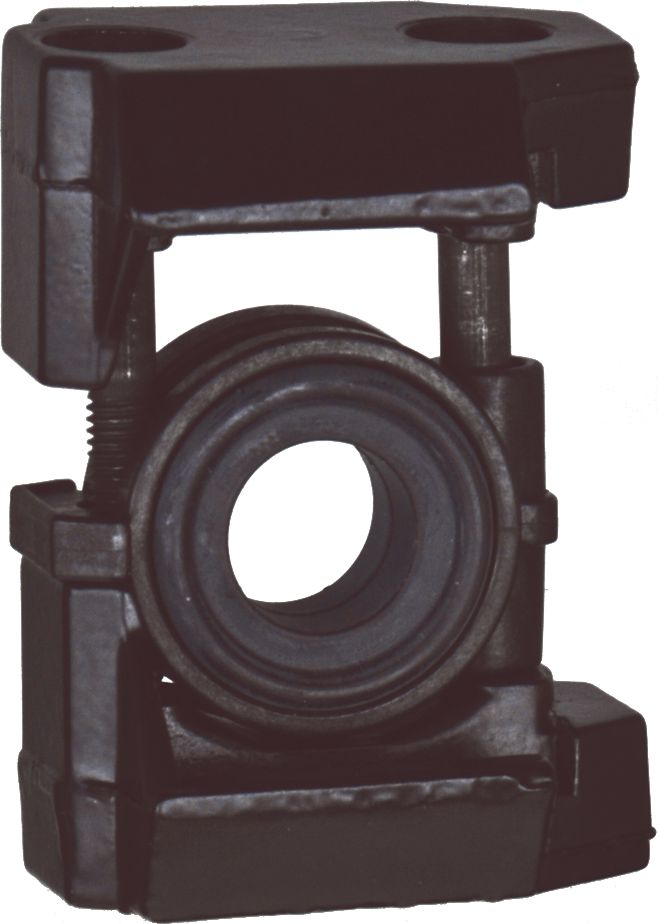

Body Connector 3/8"
Couldn't load pickup availability

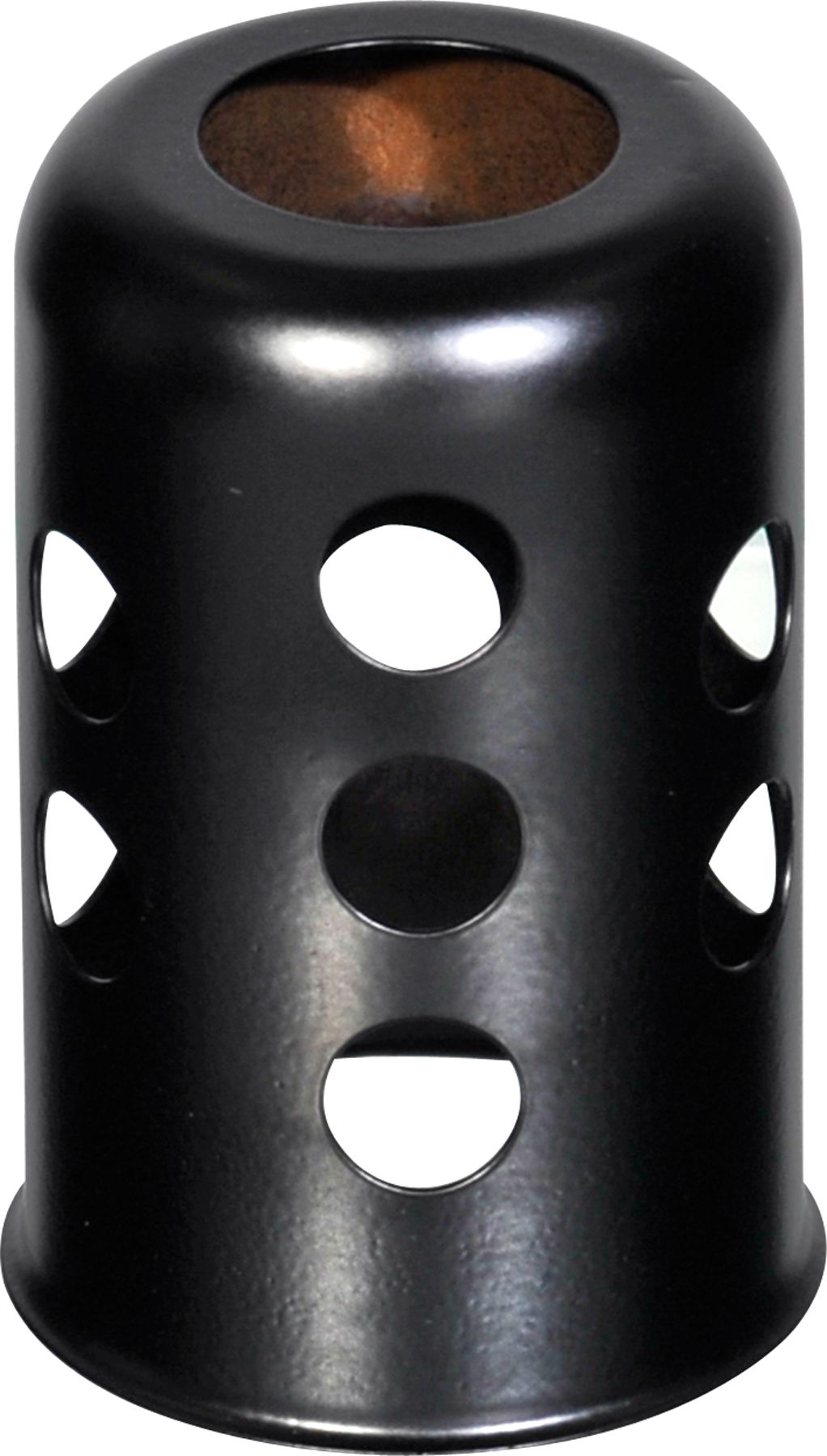

Metal Bowl Guard 3/8"
Couldn't load pickup availability
Crimp-On Hose Coupling 1/2" x 3/4-16
Couldn't load pickup availability
Pipe Street Elbow Brass 90° 3/8-18 x 3/8-18
Couldn't load pickup availability
DOT Swivel Elbow Male 360° Brass 3/8 x 1/4-18
Couldn't load pickup availability
Quick Disconnect Plug Steel 3/8" x 1/4-18
Couldn't load pickup availability
Hose End Brass 1/4 x 1/4"
Couldn't load pickup availability
Universal Air Coupler 1/4" x 1/4-18
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M8
Couldn't load pickup availability
PTO Pin Lock 1/4 x 2-1/2"
Couldn't load pickup availability
Lawson Open & Shut Nut & Bolt Loosener, Rust Penetrant, SKU DA6152, 20 oz Aerosol Can
Couldn't load pickup availability
Product Description
• Pressure is measured in PSI (pounds per square inch)• Glass lens
• Bronze Bourdon pressure tube
• Brass 1/4–18 male NPT connection (lower or center back mount available)
• Range selection: choose a gauge with a pressure range twice the standard working pressure of the system
• ±2% mid-scale accuracy – Grade B (±3% accuracy over the first and last quarters of the scale)
• Temperature range: –40°F to +150°F
• Black painted steel outer case
• 2-1/2" dial
• Utility gauges provide economical, reliable service in a wide variety of applications including pumps, compressors and other equipment• Utility gauges measure positive pressure of non-corrosive gases and liquids
Technical Specifications
| Item#: | 29648 |
|---|---|
| Description | Pressure Gauge |
| Type | Lower Mount |
| Thread Style | Male NPT |
| Thread Size | 1/4-18 " |
| Pressure Range | 0 - 160 PSI |
| UNSPSC #: | 27131600 |
| TAA Compliant: | No |
| Weight: | 0.4 lb |
Product Restrictions
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
