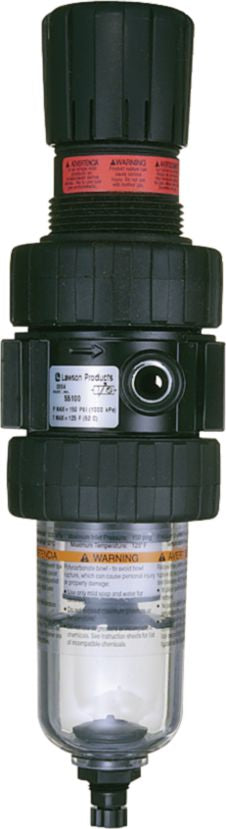

Filter/Regulator Combination, 1/2" Body, 1/2-14 Female NPT, 7.2oz, 90ft³/min, 250PSI
(Pack of
1)
All modules can be completely assembled and disassembled with ordinary hex keys. No tools required for normal maintenance.
• 2 to 125 PSIG adjustable range
• 150 PSI maximum
Filter/regulator combination units give you all the features of individual regulators and generators, plus an increased flow capacity and space-saving design.
Couldn't load pickup availability
Catalog page#: 8-171
Frequently Bought Together
Pressure Gauge Center Back Mount 0 to 160PSIG
Couldn't load pickup availability
Port Block Connector 3/8-18 Female NPT
Couldn't load pickup availability
Body Connector 3/8"
Couldn't load pickup availability
DOT Union Brass 1/2 x 1/2"
Couldn't load pickup availability
Crimp-On Hose Coupling 1/2" x 3/4-16
Couldn't load pickup availability
Pipe Street Elbow Brass 90° 3/8-18 x 3/8-18
Couldn't load pickup availability
Water Line Coupling Nipple Brass 3/4"
Couldn't load pickup availability
Quick Disconnect Plug Steel 3/8" x 1/4-18
Couldn't load pickup availability
Hose End Brass 1/4 x 1/4"
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M8
Couldn't load pickup availability
PTO Pin Lock 1/4 x 2-1/2"
Couldn't load pickup availability
Lawson Open & Shut Nut & Bolt Loosener, Rust Penetrant, SKU DA6152, 20 oz Aerosol Can
Couldn't load pickup availability
Product Description
All modules can be completely assembled and disassembled with ordinary hex keys. No tools required for normal maintenance.• 2 to 125 PSIG adjustable range
• 150 PSI maximum
Filter/regulator combination units give you all the features of individual regulators and generators, plus an increased flow capacity and space-saving design.
Technical Specifications
| Item#: | 55102 |
|---|---|
| Description | Filter/Regulator Combination |
| Body Size | 1/2 " |
| Maximum Flow | 90 ft³/min |
| Maximum Pressure | 150 PSI |
| Port Style | Female NPT |
| Port Size | 1/2-14 |
| Bowl Capacity | 7.2 Oz. |
| Replacement Polycarbonate Bowl | 56957* |
| Replacement Metal Bowl | 56958 |
| UNSPSC #: | 27131600 |
| TAA Compliant: | No |
| Weight: | 3.4 lb |
