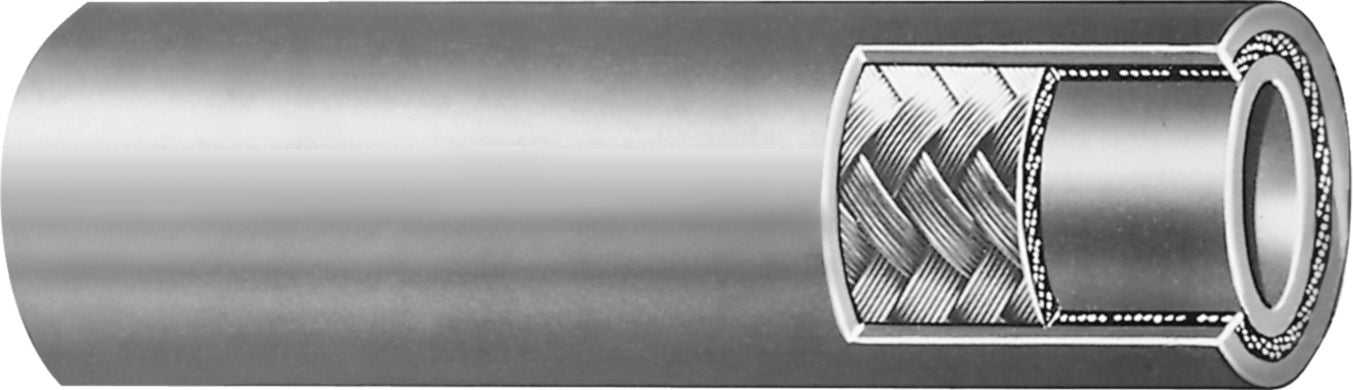

G1 Hydraulic Hose, Nitrile Type-C, 1-Steel Braided, 3/8" ID, 0.68" OD, 385' Length, 2600PSI, SAE 100R1
(Pack of
385)
SKU:PL82962B06 Item#: PL82962B06
Best for use in medium-pressure applications involving air, gasoline, crude, fuel and lubricating oils.
• Single-wire braid
SAE 100R1
• Temperature range: –40°F to +200°F (–40°C to +93°C)
• Meets SAE Specification 100R1 Type AT
Use with MegaCrimp® Fittings
Coupling Recomendations:
MegaCrimp® Couplings
Crimp settings are available on-line at www.gates.com/ecrimp. Simply indicate the hose and fittings to be crimped, and E-Crimp generates a custom crimp chart.
Frequently Bought Together
SAE R2S Hydraulic Hose Rubber 0.59" x 250'
Couldn't load pickup availability
Weatherhead H280 Hydraulic Hose 0.94" x 250'
Couldn't load pickup availability
SAE R16S Hydraulic Hose Rubber 0.94" x 50'
Couldn't load pickup availability
MegaCrimp Crimp-On Coupling 1/2" x 3/4-16
Couldn't load pickup availability
Hydraulic Plug, 7/8-14"(10) Male JIC SAE 37 Degree Flare
Couldn't load pickup availability
Hydraulic Plug, 9/16-18"(06) Male JIC SAE 37 Degree Flare
Couldn't load pickup availability
DOT Connector Male Brass 1/4 x 1/4-18
Couldn't load pickup availability
DOT Elbow Male Nylon 3/8 x 1/4-18
Couldn't load pickup availability
Pipe Coupling Brass 3/8-18 x 3/8-18
Couldn't load pickup availability
SAE R2S Hydraulic Hose Rubber 0.59" x 250'
Couldn't load pickup availability
Weatherhead H280 Hydraulic Hose 0.94" x 250'
Couldn't load pickup availability
SAE R16S Hydraulic Hose Rubber 0.94" x 50'
Couldn't load pickup availability
IFI 100/107 Top Locknut Grade C 5/8-11
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/2-13
Couldn't load pickup availability
Product Description
Best for use in medium-pressure applications involving air, gasoline, crude, fuel and lubricating oils.• Single-wire braid
SAE 100R1
• Temperature range: –40°F to +200°F (–40°C to +93°C)
• Meets SAE Specification 100R1 Type AT
Use with MegaCrimp® Fittings
Coupling Recomendations:
MegaCrimp® Couplings
Crimp settings are available on-line at www.gates.com/ecrimp. Simply indicate the hose and fittings to be crimped, and E-Crimp generates a custom crimp chart.
Technical Specifications
| Item#: | PL82962B06 |
|---|---|
| Manufacturer Model #: | 6G1 |
| Industrial / Hydraulic | Hydraulic |
| Type | Rubber - Steel Braided |
| Category / Performance | Medium Pressure |
| Industry Rating 1 | SAE 100R1 |
| Industry Rating 2 | EN 853 1SN |
| Industry Rating | MSHA 2G |
| Manufacturer Series Number | G1 |
| Manufacturer Series Name | G1 |
| I.D. | 3/8 (-6) " |
| Hose O.D. | 0.68 " |
| Working Pressure | 2,600 PSI |
| Burst Pressure | 10,400 PSI |
| Fitting Series | MegaCrimp, Field Attachable T, GSP (-3 only), Stainless Steel B |
| Bend Radius | 5.0 " |
| Inner Tube Material | Nitrile - Type C |
| Hose Reinforcement | 1 Steel Braid |
| Hose Cover Material | Modified Nitrile - Type C3 |
| Temperature | Normal |
| Stock | Non-Stock |
| Material | Hydraulic Oil |
| Applications | Hydraulic - Constant Flow |
| Temperature Range | Petroleum Based Fluids -40F to +212F, Water based emulsions to +200F |
| UNSPSC #: | 40142020 |
| TAA Compliant: | Yes |
