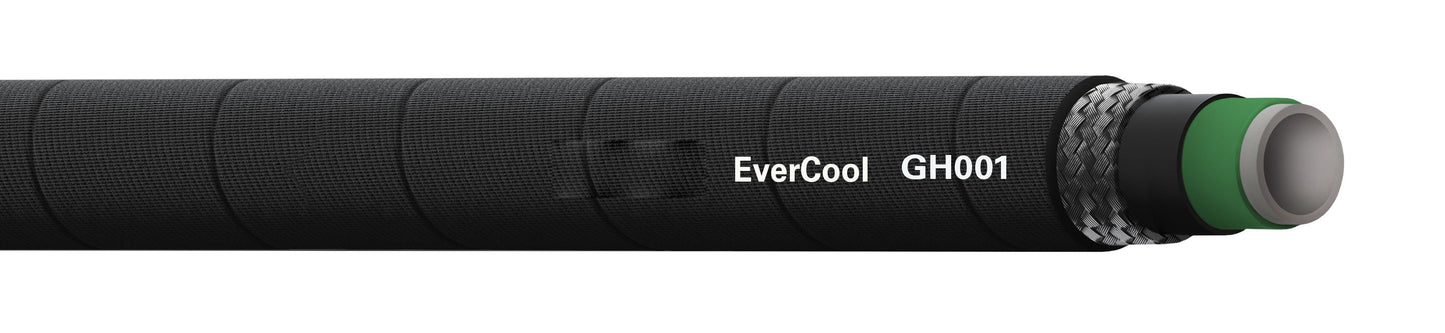

WeatherHd GH001 Multi-Refrigerant Hose, Poly. Braid Rnfrcmnt & Polyamide Veneer Tube, 500PSI, 5/8(-12)"(ID),0.98"(OD),50ft
(Pack of
50)
• Agency Ratings: Significantly exceeds SAE J2064 Coupling Integrity, vibration and impulse tested
• Fittings Certified: E-Z Clip® Series
• Agency Approvals: None
• Construction:
– Inner Tube: Polyamide veneer
– Reinforcement: Polyester braid
– Cover: EPDM
• Temperature Range: –40°F to +284°F (–40°C to +140°C)
Use only with Weatherhead® E-Z Clip® Series Hose Ends
• Application Note: Transportation, refrigeration and air conditioning systems
50-ft. length consists of no more than two pieces with none shorter than 10 feet. Total length may vary (±10%).
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog page#: 8-122
Frequently Bought Together
Weatherhead H280 Hydraulic Hose 1.41" x 250'
Couldn't load pickup availability
Weatherhead H430 Hydraulic Hose 1-7/8" x 50'
Couldn't load pickup availability
Avagard PVC Water Hose Assembly 3/4" x 50'
Couldn't load pickup availability
Z Series Crimp-On Hose End 1/4" x 7/16-20
Couldn't load pickup availability
KH Series Crimp-On Coupling 1/2" x 1-1/16-12
Couldn't load pickup availability
Face Seal O-Ring Buna-N 0.364 x 0.07"
Couldn't load pickup availability
Z Series Crimp-On Hose End 3/8" x 9/16-18
Couldn't load pickup availability
Z Series Crimp-On Hose End 1/2 x 3/4-16"
Couldn't load pickup availability
Crimp-On Hose Coupling 3/8" x 9/16-18
Couldn't load pickup availability
AC134A Refrigerant Hose 1/2" 25ft
Couldn't load pickup availability
AC134A Refrigerant Hose 13/32"25ft
Couldn't load pickup availability
919 Series PTFE Hose 13/32" 25ft
Couldn't load pickup availability
Self-Drilling Screw Hex Head 1/4-14 x 1"
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/4-20
Couldn't load pickup availability
Hex Nut Grade 5 Steel 3/8-16
Couldn't load pickup availability
Product Description
• Agency Ratings: Significantly exceeds SAE J2064 Coupling Integrity, vibration and impulse tested• Fittings Certified: E-Z Clip® Series
• Agency Approvals: None
• Construction:
– Inner Tube: Polyamide veneer
– Reinforcement: Polyester braid
– Cover: EPDM
• Temperature Range: –40°F to +284°F (–40°C to +140°C)
Use only with Weatherhead® E-Z Clip® Series Hose Ends
• Application Note: Transportation, refrigeration and air conditioning systems
50-ft. length consists of no more than two pieces with none shorter than 10 feet. Total length may vary (±10%).
Technical Specifications
| Item#: | 17425 12 |
|---|---|
| Type | Refigerant Hose |
| Category/Performance | Low Pressure |
| Industry Rating 2 | SAE J2064 Type E, Class 1 |
| Manufacturer Series Number | GH001 |
| Manufacturer Series Name | Weatherhead |
| Hose I.D. | 5/8 (-12) " |
| Working Pressure | 500 PSI |
| Burst Pressure | 2,000 PSI |
| Bend Radius | 4 " |
| Inner Tube Material | Polyamide veneer |
| Hose Reinforcement | Polyester Braid |
| Hose Cover Material | Chlorobutyl |
| Fitting Series | E-Z Clip Series |
| Temperature | -40F to +275F |
| UNSPSC #: | 40142020 |
| TAA Compliant: | Yes |
| Weight: | 12.5 lb |
