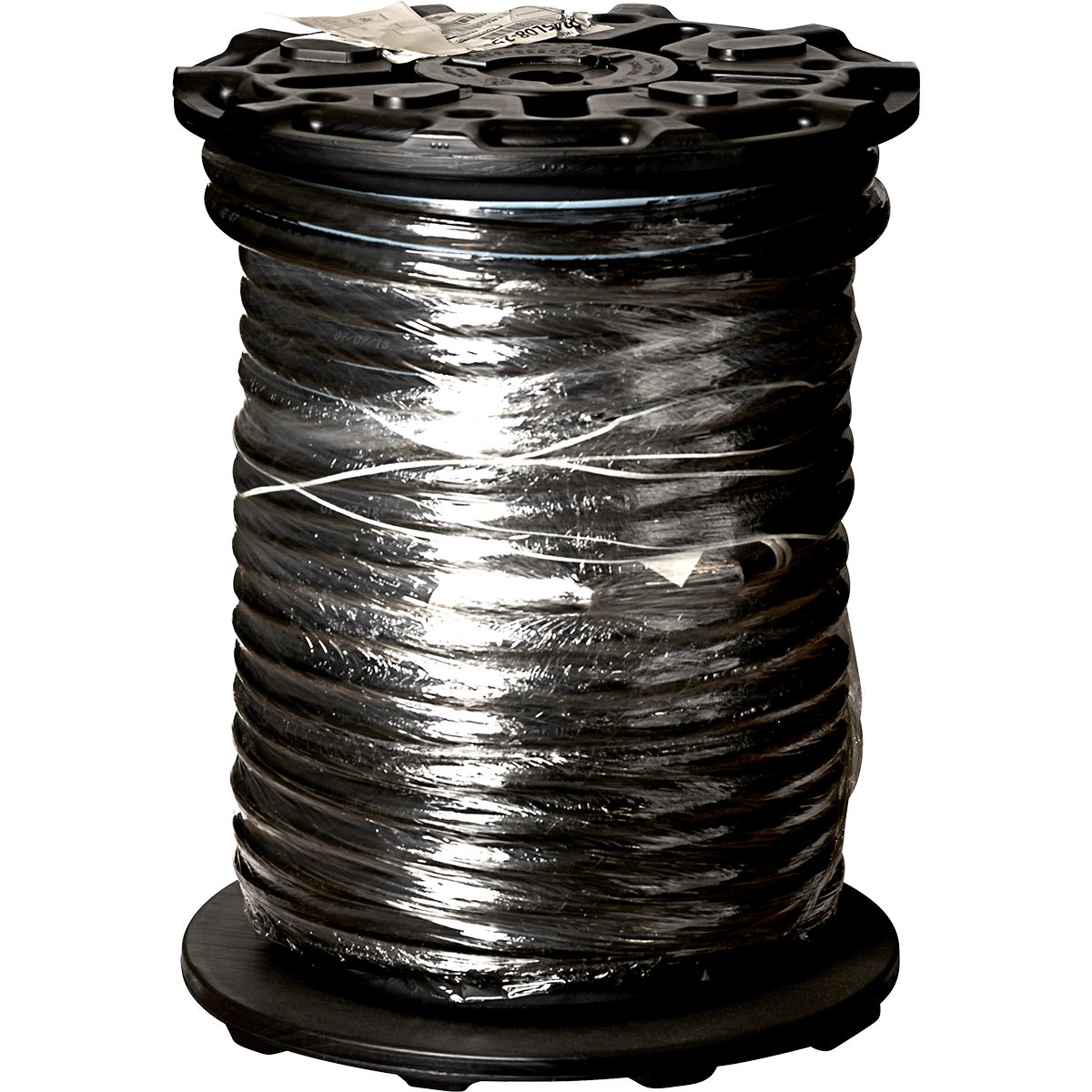

Weatherhead H245L WeatherFROST™ Hydraulic Hose, Rubber, 2-Steel Braided, 1/2" ID, 250' Length, 4500PSI, SAE100R16, EN857 Type 2SC
(Pack of
250)
SKU:1426744 Item#: 1426744
• Agency Ratings: SAE 100R16 Type S, EN 857 Type 2SC
• Fittings Certified: Z-Series
• Agency Approvals: MSHA accepted cover
• Construction:
– Inner Tube: Exclusive low temperature compound
– Reinforcement: Two steel braids
– Cover: WeatherSHIELD™ – eight times better abrasion resistance
• Temperature Range:70°F to +212°F (–57°C to +100°C)
• Application Notes:
– Low temperature flexing in hydraulic system service, used with petroleum and water based fluids
– Provides higher pressure ranges than H245 with equal flexibility
– WeatherSHIELD™ cover provides 8 times the abrasion resistance of standard neoprene cover
– Upgraded pressure ratings
Frequently Bought Together
M2T Hydraulic Hose Rubber 0.56" x 50'
Couldn't load pickup availability
SAE R16S Hydraulic Hose Rubber 0.67" x 250'
Couldn't load pickup availability
Weatherhead H430 Hydraulic Hose 1-33/64" x 50'
Couldn't load pickup availability
Hydraulic Cap Nut, 1-1/16-12"(12) Female JIC SAE 37 Degree Flare
Couldn't load pickup availability
Straight Thread O-Ring Buna-N 0.644 x 0.087"
Couldn't load pickup availability
Z Series Crimp-On Hose End 1/2" x 13/16-16
Couldn't load pickup availability
Hex Head Plug Brass 1/4-18 Male NPT
Couldn't load pickup availability
Hex Head Plug Brass 1/2-14 Male NPT
Couldn't load pickup availability
Hose Clamp 304 SS 9/16 to 1-1/4"
Couldn't load pickup availability
M2T Hydraulic Hose Rubber 0.56" x 50'
Couldn't load pickup availability
SAE R16S Hydraulic Hose Rubber 0.67" x 250'
Couldn't load pickup availability
Weatherhead H430 Hydraulic Hose 1-33/64" x 50'
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Red
Couldn't load pickup availability
Cross-Over Socket Extension Set, 3/8" Drive, 3 Piece
Couldn't load pickup availability
Lawson Open & Shut Nut & Bolt Loosener, Rust Penetrant, SKU DA6152, 20 oz Aerosol Can
Couldn't load pickup availability
Product Description
• Agency Ratings: SAE 100R16 Type S, EN 857 Type 2SC• Fittings Certified: Z-Series
• Agency Approvals: MSHA accepted cover
• Construction:
– Inner Tube: Exclusive low temperature compound
– Reinforcement: Two steel braids
– Cover: WeatherSHIELD™ – eight times better abrasion resistance
• Temperature Range:70°F to +212°F (–57°C to +100°C)
• Application Notes:
– Low temperature flexing in hydraulic system service, used with petroleum and water based fluids
– Provides higher pressure ranges than H245 with equal flexibility
– WeatherSHIELD™ cover provides 8 times the abrasion resistance of standard neoprene cover
– Upgraded pressure ratings
Technical Specifications
| Item#: | 1426744 |
|---|---|
| Manufacturer Model #: | H245L08-250R |
| Industry Rating 1 | SAE 100R16 |
| Industry Rating 2 | EN857 Type 2SC |
| I.D. | 1/2 (-08) " |
| Hose O.D. | 53/64 " |
| Working Pressure | 4,500 PSI |
| Burst Pressure | 18,000 PSI |
| Fitting Series | Z series |
| Bend Radius | 3.5 " |
| UNSPSC #: | 40142020 |
| TAA Compliant: | Yes |
| Weight: | 105.0 lb |
