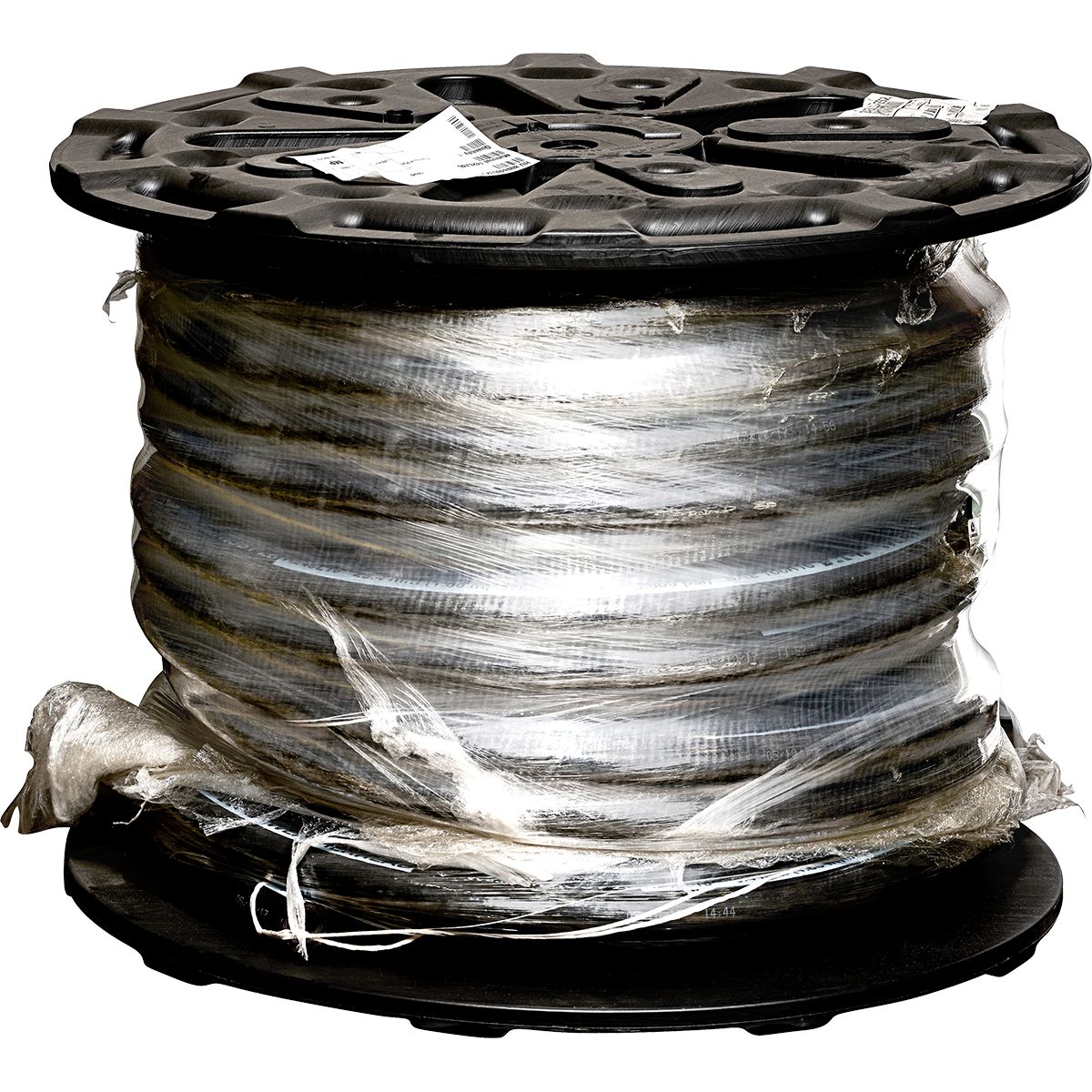

Weatherhead H245L WeatherFROSTâ„¢ Hydraulic Hose, Rubber, 2-Steel Braided, 1" ID, 250' Length, 2800PSI, SAE100R16, EN857 Type 2SC
(Pack of
250)
SKU:1426746 Item#: 1426746
• Agency Ratings: SAE 100R16 Type S, EN 857 Type 2SC
• Fittings Certified: Z-Series
• Agency Approvals: MSHA accepted cover
• Construction:
– Inner Tube: Exclusive low temperature compound
– Reinforcement: Two steel braids
– Cover: WeatherSHIELD™ – eight times better abrasion resistance
• Temperature Range:70°F to +212°F (–57°C to +100°C)
• Application Notes:
– Low temperature flexing in hydraulic system service, used with petroleum and water based fluids
– Provides higher pressure ranges than H245 with equal flexibility
– WeatherSHIELD™ cover provides 8 times the abrasion resistance of standard neoprene cover
– Upgraded pressure ratings
Frequently Bought Together
Weatherhead H280 Hydraulic Hose Rubber 0.69" x 50'
Couldn't load pickup availability
Weatherhead H280 Hydraulic Hose Rubber 0.81" x 50'
Couldn't load pickup availability
Weatherhead H280 Hydraulic Hose 0.81" x 250'
Couldn't load pickup availability
Z Series Crimp-On Hose End 3/8" x 9/16-18
Couldn't load pickup availability
Crimp-On Hose Coupling 1/2" x 3/4-16
Couldn't load pickup availability
Crimp-On Hose Coupling 3/8" x 9/16-18
Couldn't load pickup availability
Pipe Bushing Brass 1/2-14 x 3/8-18
Couldn't load pickup availability
Miniature Clamp SS 7/32 to 5/8"
Couldn't load pickup availability
DOT Union Nylon 1/4 x 1/4"
Couldn't load pickup availability
Autobahn Ergo Magna EZ Crimper Ratcheting Terminal Crimper
Couldn't load pickup availability
Interchangeable Hex Bit Set 20Pc Torx
Couldn't load pickup availability
Master Series Penlight Flashlight
Couldn't load pickup availability
Weatherhead H280 Hydraulic Hose Rubber 0.81" x 50'
Couldn't load pickup availability
Weatherhead H280 Hydraulic Hose 0.81" x 250'
Couldn't load pickup availability
Weatherhead H280 Hydraulic Hose Rubber 0.53" x 50'
Couldn't load pickup availability
Nylon Cable Tie 15.25" Black
Couldn't load pickup availability
Nylon Cable Tie 11.75" Black
Couldn't load pickup availability
Nylon Cable Tie 15.5" Black
Couldn't load pickup availability
Product Description
• Agency Ratings: SAE 100R16 Type S, EN 857 Type 2SC• Fittings Certified: Z-Series
• Agency Approvals: MSHA accepted cover
• Construction:
– Inner Tube: Exclusive low temperature compound
– Reinforcement: Two steel braids
– Cover: WeatherSHIELD™ – eight times better abrasion resistance
• Temperature Range:70°F to +212°F (–57°C to +100°C)
• Application Notes:
– Low temperature flexing in hydraulic system service, used with petroleum and water based fluids
– Provides higher pressure ranges than H245 with equal flexibility
– WeatherSHIELD™ cover provides 8 times the abrasion resistance of standard neoprene cover
– Upgraded pressure ratings
Technical Specifications
| Item#: | 1426746 |
|---|---|
| Manufacturer Model #: | H245L16-250R |
| Industry Rating 1 | SAE 100R16 |
| Industry Rating 2 | EN857 Type 2SC |
| I.D. | 1 (-16) " |
| Hose O.D. | 1-13/32 " |
| Working Pressure | 2,800 PSI |
| Burst Pressure | 11,200 PSI |
| Fitting Series | Z series |
| Bend Radius | 6 " |
| UNSPSC #: | 40142020 |
| TAA Compliant: | No |
| Weight: | 248.0 lb |
