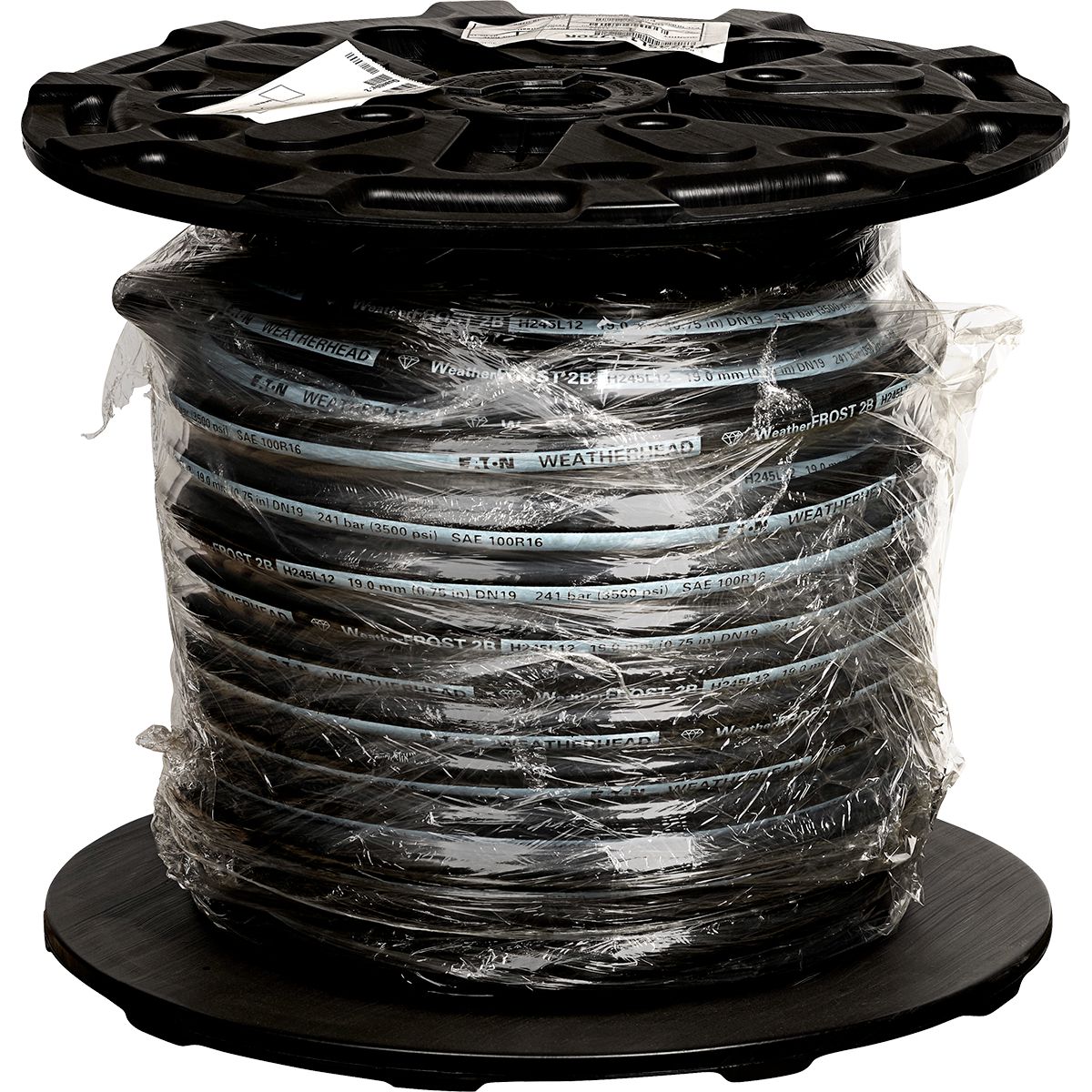

Weatherhead H245L WeatherFROST™ Hydraulic Hose, Rubber, 2-Steel Braided, 3/4" ID, 250' Length, 3500PSI, SAE100R16, EN857 Type 2SC
(Pack of
250)
• Agency Ratings: SAE 100R16 Type S, EN 857 Type 2SC
• Fittings Certified: Z-Series
• Agency Approvals: MSHA accepted cover
• Construction:
– Inner Tube: Exclusive low temperature compound
– Reinforcement: Two steel braids
– Cover: WeatherSHIELD™ – eight times better abrasion resistance
• Temperature Range:70°F to +212°F (–57°C to +100°C)
• Application Notes:
– Low temperature flexing in hydraulic system service, used with petroleum and water based fluids
– Provides higher pressure ranges than H245 with equal flexibility
– WeatherSHIELD™ cover provides 8 times the abrasion resistance of standard neoprene cover
– Upgraded pressure ratings
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Frequently Bought Together
GH001Multi-Refrigerant Hose 1/2" 50ft
Couldn't load pickup availability
Weatherhead H280 Hydraulic Hose 0.69" x 250'
Couldn't load pickup availability
SAE R16S Hydraulic Hose Rubber 0.94" x 50'
Couldn't load pickup availability
Hydraulic Cap Nut, 7/8-14"(10) Female JIC SAE 37 Degree Flare
Couldn't load pickup availability
Push On Tapered Cap/Plug Polyethylene 1/4"
Couldn't load pickup availability
Z Series Crimp-On Hose End 1/2" x 13/16-16
Couldn't load pickup availability
DOT Union Brass 1/2 x 1/2"
Couldn't load pickup availability
Pipe Street Elbow Brass 90° 3/8-18 x 3/8-18
Couldn't load pickup availability
Crimp-On Hose Coupling 1/2" x 3/4-16
Couldn't load pickup availability
Hex Cap Screw Grade 9 Alloy Steel 3/4-16 x 3"
Couldn't load pickup availability
Telcom IDC Discrete Connector 26 to 19 AWG
Couldn't load pickup availability
Hex Cap Screw Property Class 12.9 M20-2.5 x 90mm
Couldn't load pickup availability
Weatherhead H280 Hydraulic Hose 0.69" x 250'
Couldn't load pickup availability
SAE R16S Hydraulic Hose Rubber 0.94" x 50'
Couldn't load pickup availability
MXT Hydraulic Hose Rubber 0.8" x 330'
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 3/8-16
Couldn't load pickup availability
Vision Pro Super
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M8
Couldn't load pickup availability
Product Description
• Agency Ratings: SAE 100R16 Type S, EN 857 Type 2SC• Fittings Certified: Z-Series
• Agency Approvals: MSHA accepted cover
• Construction:
– Inner Tube: Exclusive low temperature compound
– Reinforcement: Two steel braids
– Cover: WeatherSHIELD™ – eight times better abrasion resistance
• Temperature Range:70°F to +212°F (–57°C to +100°C)
• Application Notes:
– Low temperature flexing in hydraulic system service, used with petroleum and water based fluids
– Provides higher pressure ranges than H245 with equal flexibility
– WeatherSHIELD™ cover provides 8 times the abrasion resistance of standard neoprene cover
– Upgraded pressure ratings
Technical Specifications
| Item#: | 1426745 |
|---|---|
| Industry Rating 1 | SAE 100R16 |
| Industry Rating 2 | EN857 Type 2SC |
| I.D. | 3/4 (-12) " |
| Hose O.D. | 1-1/8 " |
| Working Pressure | 3,500 PSI |
| Burst Pressure | 14,000 PSI |
| Fitting Series | Z series |
| Bend Radius | 4.75 " |
| UNSPSC #: | 40142020 |
| TAA Compliant: | Yes |
| Weight: | 168.0 lb |
