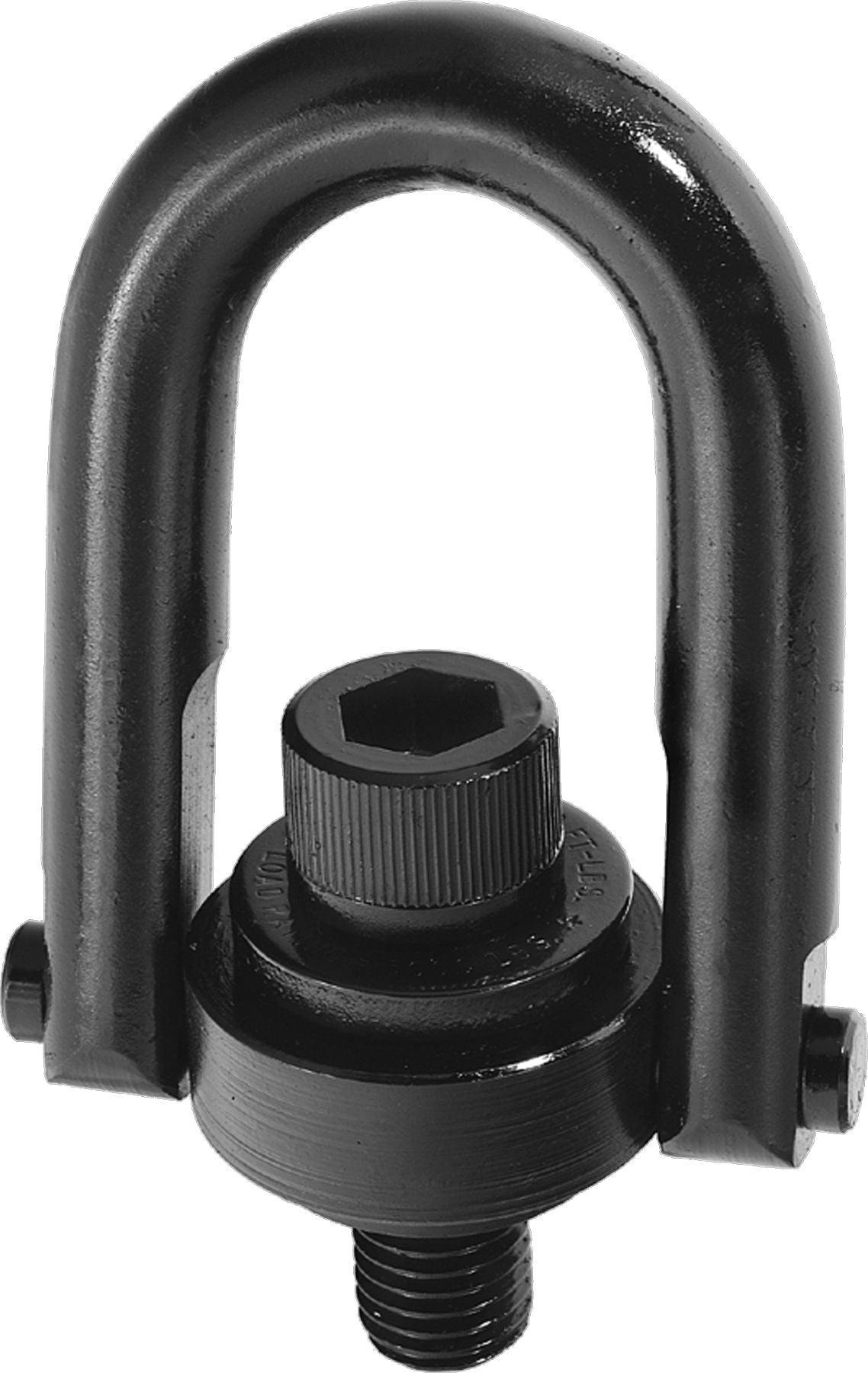

Hoist Ring, Safety Engineered, 10,000 lb Load Limit, 1-1/8-8 Thread Size, 2.29" Thread Length
(Pack of
1)
SKU:1423272 Item#: 1423272
• Material: High strength 4140 alloy steel
• Range of movement: Swivel 360°, Pivot 180° Under Load
• Design Factor: Minimum of 5:1
• Meets manufacturing and design requirements of ASME-B30.26 and MIL-STD 209
• Magnetic Particle Inspected Per ASTM 1444
• Black oxide coated
• Each Individually Serial Numbered
• Use Hoist Rings for added lifting safety to avoid eyebolt twisting, bending and breaking when lifting heavy, angular, unbalanced loads
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Eyebolt, Machinery, Self-Colored, 3/8" x 1-1/4"
Couldn't load pickup availability
Spring Link, Stainless Steel, 3/8", 400 LB WLL
Couldn't load pickup availability
Screw Eye Light-Duty Trade Size 104 1/2" Eye
Couldn't load pickup availability
Hoist Ring, Heavy Duty®, Metric, 4,200 kg Load Limit
Couldn't load pickup availability
Hoist Ring, Heavy Duty®, 1,000 lb Load Limit
Couldn't load pickup availability
Screw Pin Anchor Shackle, 3/8", 2,000 lb WLL
Couldn't load pickup availability
Screw Pin Anchor Shackle, 1/2", 4,000 lb WLL
Couldn't load pickup availability
Screw Pin Anchor Shackle, 1/4", 1,000 lb WLL
Couldn't load pickup availability
Master Series Penlight Flashlight
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/2-13
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M12
Couldn't load pickup availability
Product Description
• Material: High strength 4140 alloy steel• Range of movement: Swivel 360°, Pivot 180° Under Load
• Design Factor: Minimum of 5:1
• Meets manufacturing and design requirements of ASME-B30.26 and MIL-STD 209
• Magnetic Particle Inspected Per ASTM 1444
• Black oxide coated
• Each Individually Serial Numbered
• Use Hoist Rings for added lifting safety to avoid eyebolt twisting, bending and breaking when lifting heavy, angular, unbalanced loads
Technical Specifications
| Item#: | 1423272 |
|---|---|
| Manufacturer Model #: | 23108 |
| Type | Safety Engineered |
| Thread Size | 1-1/8-8 |
| Thread Length | 2.29 " |
| Material | 4140 Alloy Steel |
| Finish | Black Oxide |
| Working Load Limit | 10,000 lb |
| Swivel | 360 ° |
| Pivot | 180 ° |
| Recommended Installation Torque | 230 ft·lbf |

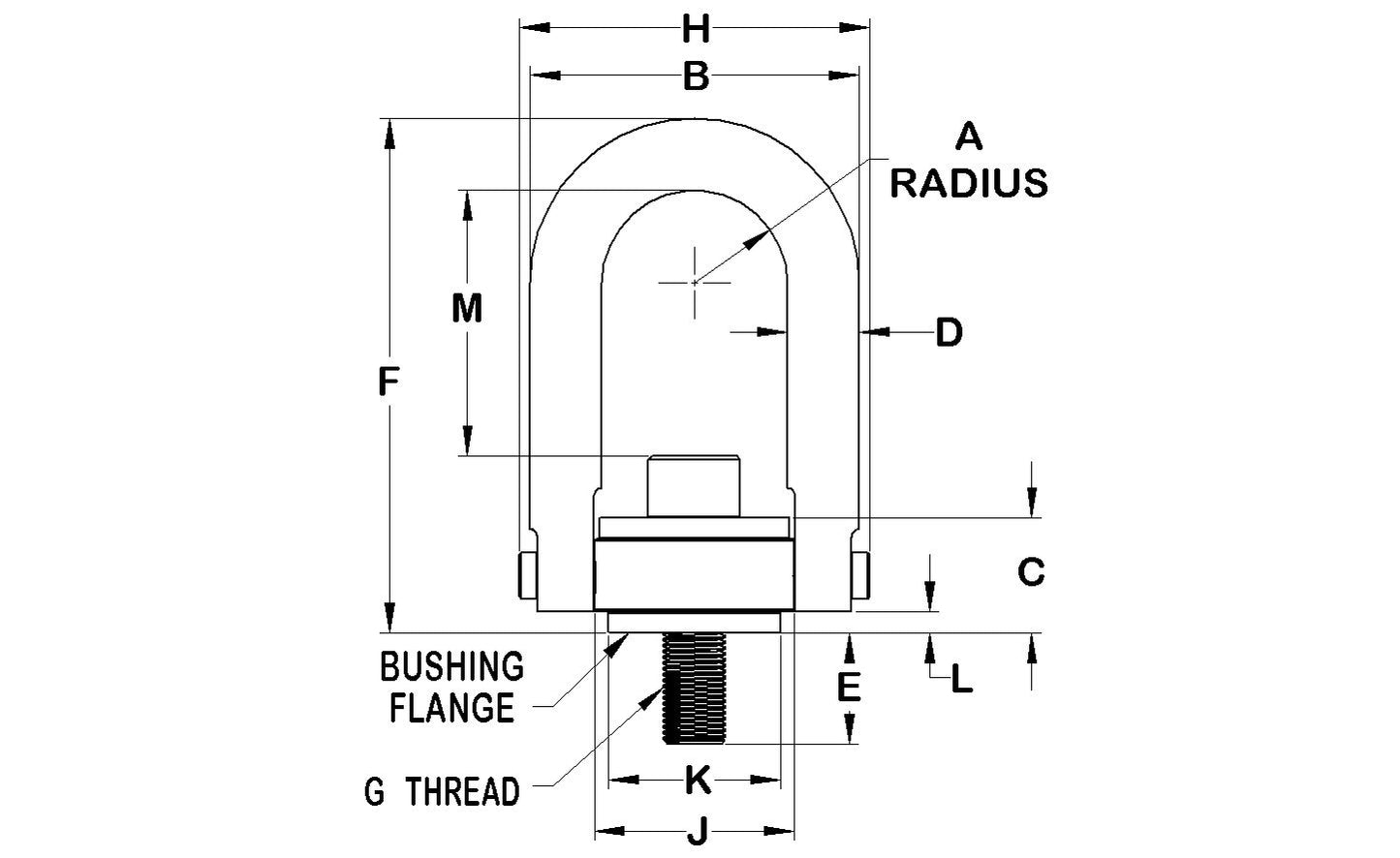

| Dimension A | 1.40 " |
| Dimension B | 4.80 " |
| Dimension C | 1.71 " |
| Dimension D | 1” " |
| Dimension E | 2.29 " |
| Dimension F | 6.52 " |
| Dimension G | 1-1/8-8 " |
| Dimension H | 5.14 " |
| Dimension J | 3.00 " |
| Dimension K | 2.37 " |
| Dimension L | .24 " |
| Dimension M | 2.81 " |
| UNSPSC #: | 24101602 |
| TAA Compliant: | Yes |
