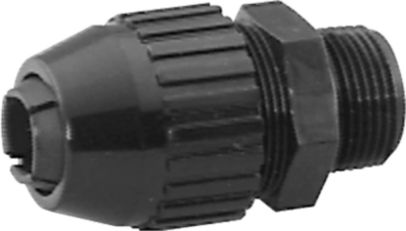

Liquidtight Strain Relief Connector, 1/2" Hub Size, Steel, Straight, 0.55" Throat Diameter Minimum, Nylon, Neoprene Bushing
(Pack of
2)
• Achieves maximum pullout strength without installation tools – insert cord through connector and hand-tighten
• Corrosion-resistant
• Weather-stabilized nylon rated at –30°F to +221°F (–34°C to +105°C) indoor/outdoor
IMPORTANT: When a minimum size cord is used, the gland nut must be fastened tightly and as close as possible to shoulder.
Black Beauty® is a registered trademark of Thomas and Betts.
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog page#: 17-84
Frequently Bought Together
Liquidtight Strain Relief Connector 1/2" Steel
Couldn't load pickup availability
Liquidtight Snap-In Strain Relief Connector
Couldn't load pickup availability
Trailer Cable Harness 15' Coiled Black
Couldn't load pickup availability
Connector Housing 20A 2-Wire Tower
Couldn't load pickup availability
Female Quick Slide Terminal 16 to 14 AWG Clear
Couldn't load pickup availability
Cable Tie 7.31" Black
Couldn't load pickup availability
Alu-Master 8-Way Torpedo Level
Couldn't load pickup availability
Utility Knife, Folding , 4" Closed
Couldn't load pickup availability
Self-Drilling Screw Hex Head 1/4-14 x 1"
Couldn't load pickup availability
Liquidtight Snap-In Strain Relief Connector
Couldn't load pickup availability
Liquidtight Strain Relief Connector 1/2" Steel
Couldn't load pickup availability
Liquidtight Strain Relief Connector 1/2" Steel
Couldn't load pickup availability
Product Description
• Achieves maximum pullout strength without installation tools – insert cord through connector and hand-tighten• Corrosion-resistant
• Weather-stabilized nylon rated at –30°F to +221°F (–34°C to +105°C) indoor/outdoor
IMPORTANT: When a minimum size cord is used, the gland nut must be fastened tightly and as close as possible to shoulder.
Black Beauty® is a registered trademark of Thomas and Betts.
Technical Specifications
| Item#: | 53313 |
|---|---|
| Style | Liquidtight Strain Relief Connector |
| Size | 1/2" STR |
| Cable Size Minimum | .250 " |
| Cable Size Maximum | .400 " |
| Hub Size | 1/2 " |
| Throat Diameter Minimum | 0.55 " |
| Approvals | UL, CSA |
| Maximum Temperature Rating | 221 F |
| Description | Straight |
| Type | Strain Relief Connectors |
| UNSPSC #: | 39121400 |
| TAA Compliant: | Yes |
| Weight: | 0.14 lb |
