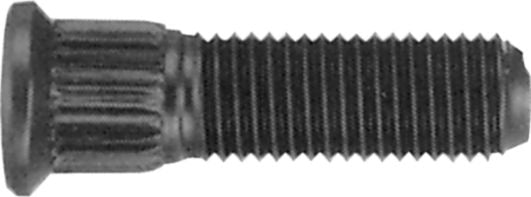

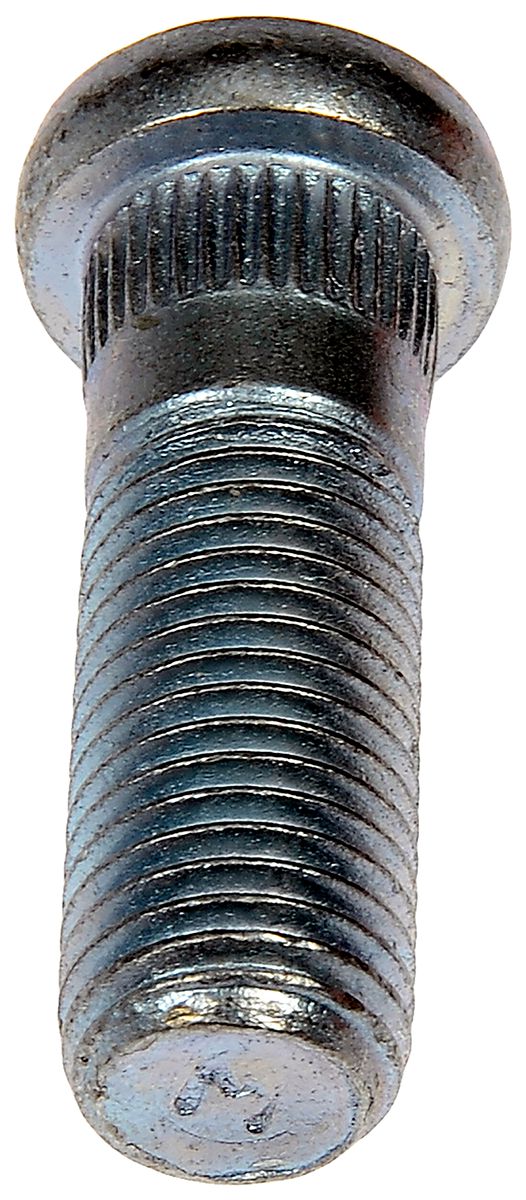

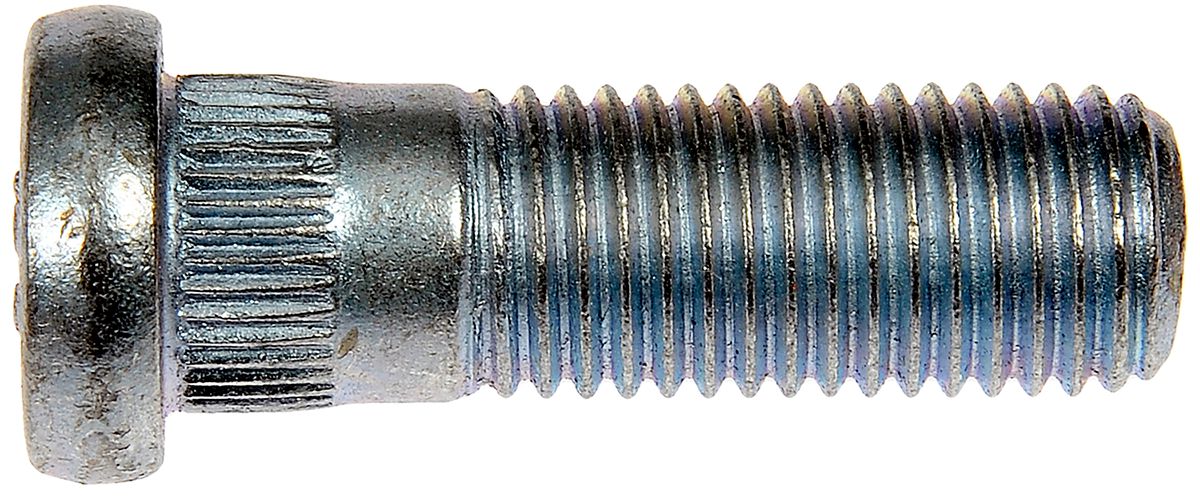

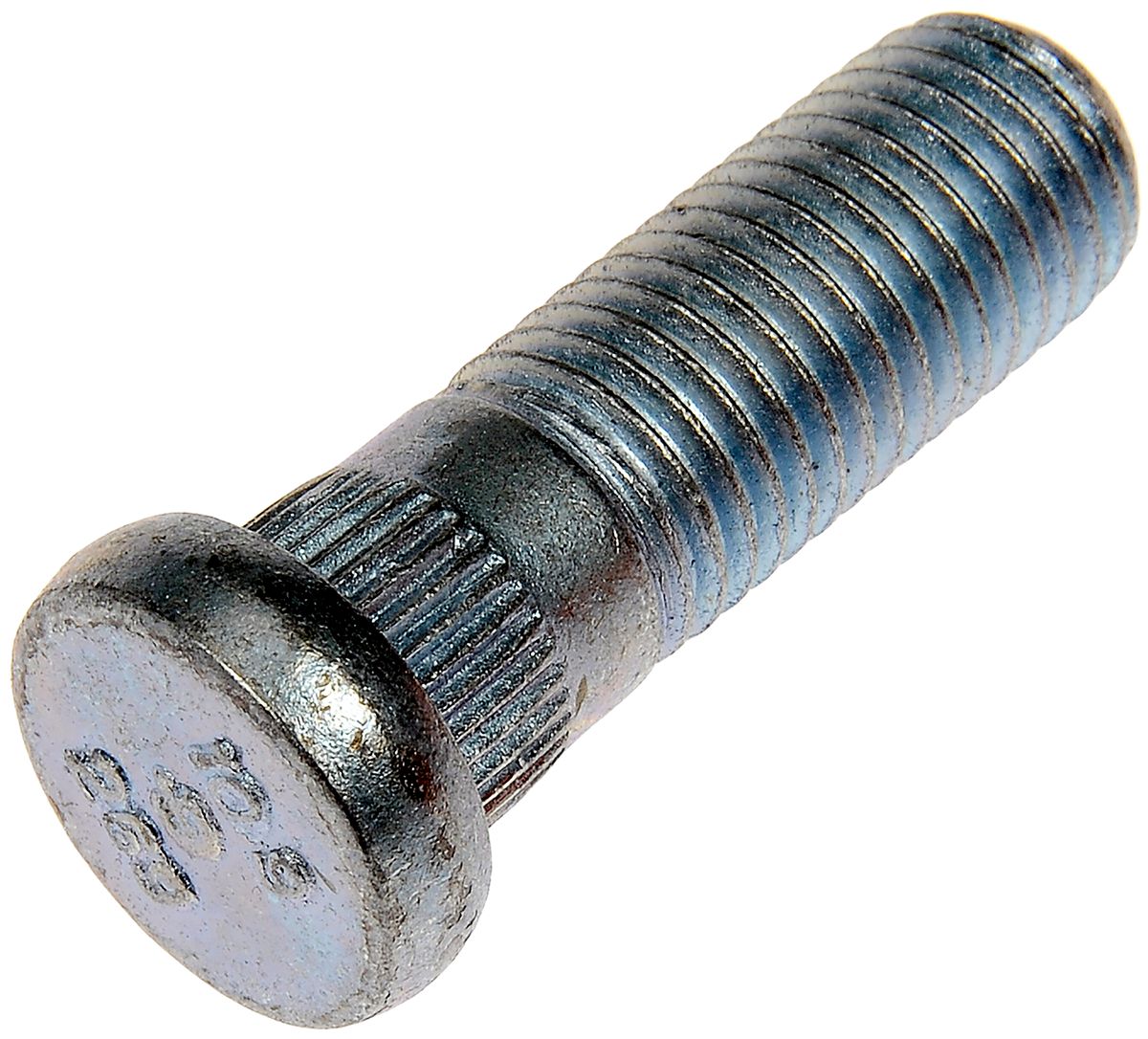

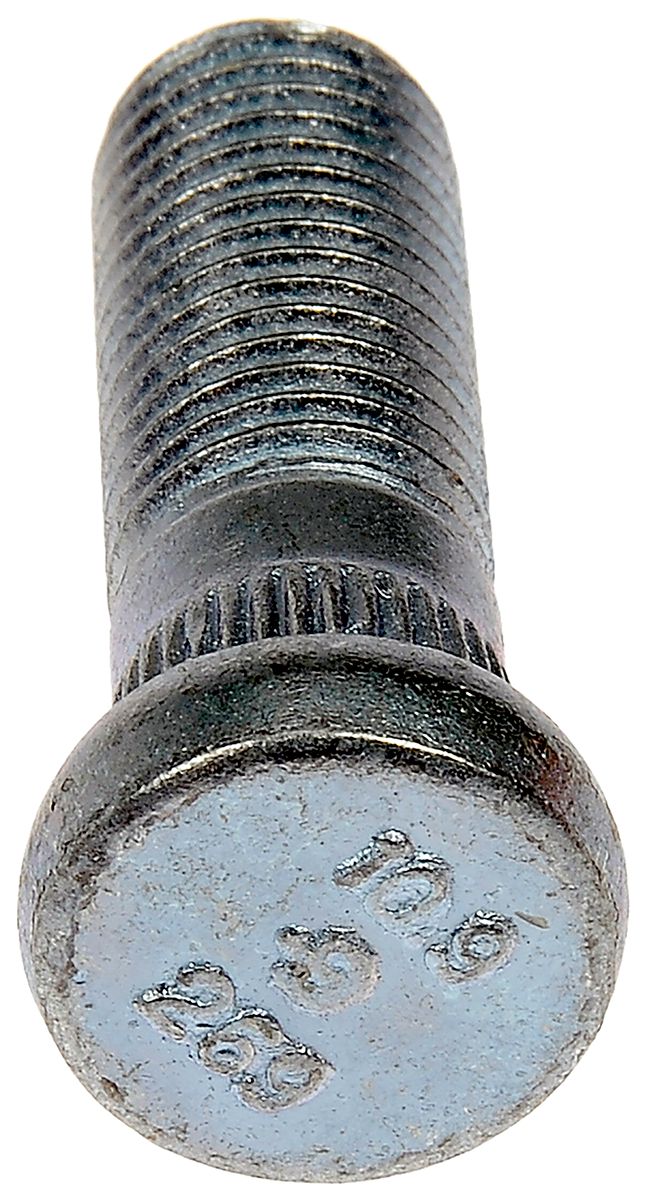

M12-1.50 Serrated Wheel Bolt, M12.22 Knurl, 36mm Length, 9mm Shoulder Length, Steel
(Pack of 10)

SKU:1636102 Item#: 1636102

Lawson Products

• Heat-treated high tensile strength steel
• Supplied in either black oil finish or zinc finish

Check Availability

Quantity

Frequently Bought Together

Rocker Moulding Retainer Plastic 16mm

MCN Series Lead Clip-On Wheel Weight 1/2 oz

Tire Patch Cement 8oz Chemical

Universal Neoprene Captive Brass Well Nut #10-32

Phillips Round Washer Head Drill Point Screw #8

Backup Alarm 97dB

USS Flat Washer Thru-Hardened Steel 1/4"

USS Flat Washer Thru-Hardened Steel 3/8"

Butt Connector 16 to 14 AWG Blue

P Series Lead Clip-On Wheel Weight 0.25oz

MCN Series Lead Clip-On Wheel Weight 1/4 oz

MCN Series Lead Clip-On Wheel Weight 1-1/4 oz

Wheel Bolt 9/16-18 R 0.62"

Wheel Bolt 1/2-20 R 0.621"

Wheel Bolt 5/8-18 R 0.653"

Product Description

• Heat-treated high tensile strength steel
• Supplied in either black oil finish or zinc finish

Technical Specifications

Item#:	1636102
Thread Size	M12-1.5 R "
Length	36 mm
Knurl Diameter	12.22 mm
Shoulder Length	9 mm
Material	Steel
Head Diameter	17.78 mm
Diameter	12 mm
Thread Pitch	1.50 mm
Length Under Head	37.34 mm
Thread Length	22.23 mm
Type	Serrated
Dorman Number	610-269
UNSPSC #:	25171900
TAA Compliant:	Yes
Weight:	0.84 lb
