Masonry Anchor, Hex Washer Head, Type 410 Stainless Steel, Stalgard Coated, #14-10 x 1-3/4"
(Pack of 25)

SKU:59656 Item#: 59656

Crete-Flex®

• Type 410 Stainless Steel anchors that cut threads into poured concrete, brick or hollow brick
• Fast installation – drill hole, drive anchor
• Available in two head styles – hex washer head for most applications and Phillips flat head for countersunk applications
• Stalgard®-coated for superior corrosion resistance
To determine the proper length of Crete-Flex™ anchor for an application, combine the thickness of the attachment (A) with the desired depth of embedment in the masonry material (B). It is recommended that embedment never be less than 1", nor greater than 1-3/4".
NOTE: Use system drill bits. Use of any other drill bits will cause inconsistent performance of the anchors. Drill bits must be ordered separately.

Check Availability

Quantity

California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov

Catalog page#: 6-45

Frequently Bought Together

Masonry Anchor Hex Washer Head Steel 1/4 x 3-3/4"

Masonry Anchor TORX® Star Head Steel 3/16 x 3-1/4"

USS Flat Washer Low Carbon Steel 5/16"

Hex Cap Screw Grade 8 3/8-16 x 1-1/2"

Large Diameter Tapcon® Anchor 3/8 x 3"

Masonry Anchor TORX® Head Steel 5/16 x 4"

Utility Knife, Folding , 4" Closed

SAE Flat Washer Thru-Hardened Steel 3/8"

Product Description

• Type 410 Stainless Steel anchors that cut threads into poured concrete, brick or hollow brick
• Fast installation – drill hole, drive anchor
• Available in two head styles – hex washer head for most applications and Phillips flat head for countersunk applications
• Stalgard®-coated for superior corrosion resistance
To determine the proper length of Crete-Flex™ anchor for an application, combine the thickness of the attachment (A) with the desired depth of embedment in the masonry material (B). It is recommended that embedment never be less than 1", nor greater than 1-3/4".
NOTE: Use system drill bits. Use of any other drill bits will cause inconsistent performance of the anchors. Drill bits must be ordered separately.

Technical Specifications

Item#:	59656
Diameter	#14
Length	1-3/4 "
Type	Crete-Flex
Material	Stainless Steel
Finish	Plain
Thread Pitch	10 tpi
Drive	Hex
Head Style	Hex Washer Head
Drive Style	Hex
UNSPSC #:	31162104
TAA Compliant:	Yes
Weight:	0.53 lb

Product Restrictions

California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov

Suggested Products

Self-Drilling Wall Anchor 1-5/8"

Masonry Anchor Hex Washer Head Steel 1/4 x 1-1/4"

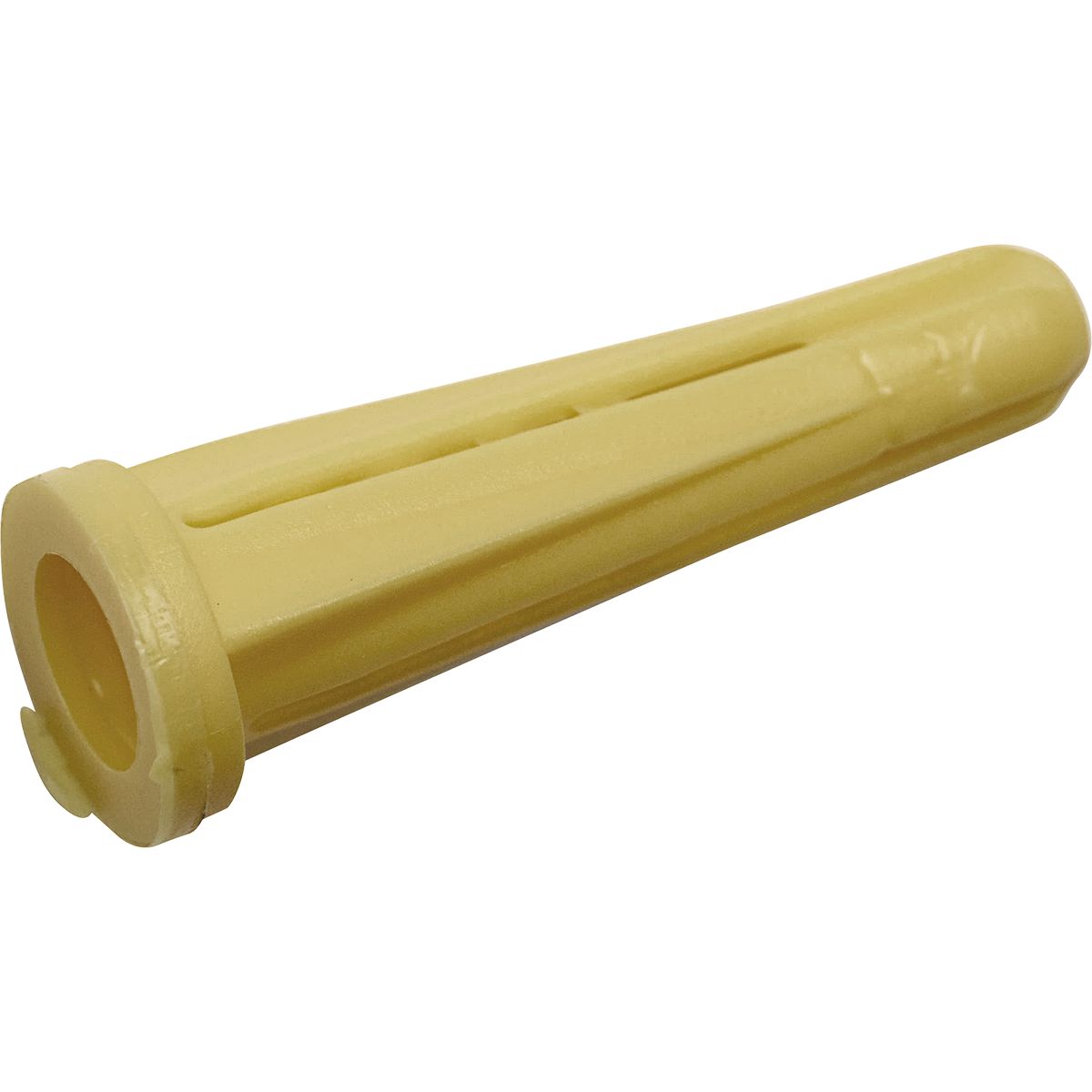

Conical Screw Anchor Plastic #10 to #12 x 1"

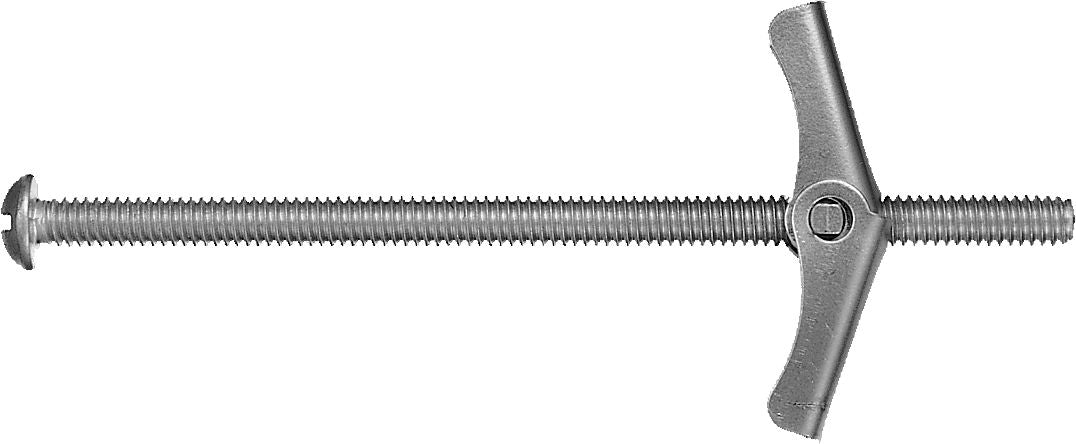

SNAPTOGGLE® Toggle Bolt Anchor 1/4-20
