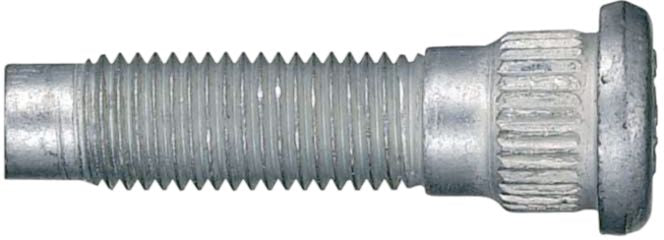

Metric Wheel Bolt, M12 x 1.5 R, 51mm Length, 15.42mm Knurl Diameter, 15.5mm Shoulder Length, Steel
(Pack of
5)
SKU:26970 Item#: 26970
• Heat-treated high tensile strength steel
• Supplied in either black oil finish or zinc finish
Couldn't load pickup availability
Catalog page#: 21-2
Frequently Bought Together
Splash Shield Retainer Nylon 1"
Couldn't load pickup availability
PZ Series Zinc Clip-On Wheel Weight 1-1/4oz
Couldn't load pickup availability
PZ Series Zinc Clip-On Wheel Weight 2oz
Couldn't load pickup availability
Bumper Cover and Fender Shield Push-Type Retainer
Couldn't load pickup availability
PZ Series Zinc Clip-On Wheel Weight 3/4oz
Couldn't load pickup availability
PZ Series Zinc Clip-On Wheel Weight 1/2oz
Couldn't load pickup availability
Superbutt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M12
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M10
Couldn't load pickup availability
MC Type Zinc Clip-On Wheel Weight 1/2oz
Couldn't load pickup availability
Steel Adhesive Wheel Weight 1/4oz
Couldn't load pickup availability
Dual End Threaded Stud 7/16 SAE x 7/16 USS 2-1/4"
Couldn't load pickup availability
Wheel Bolt 1/2-20 R 0.65"
Couldn't load pickup availability
Wheel Bolt 1/2-20 R 0.583"
Couldn't load pickup availability
Headed Stud Right Hand 3/4-16 x 3-1/8"
Couldn't load pickup availability
Product Description
• Heat-treated high tensile strength steel• Supplied in either black oil finish or zinc finish
Technical Specifications
| Item#: | 26970 |
|---|---|
| Thread Size | M12 x 1.5 R " |
| Length | 51 mm |
| Knurl Diameter | 15.42 mm |
| Shoulder Length | 15.5 mm |
| Head Code Black Oil | - |
| Head Code Zinc | 388 |
| Diameter | 12 mm |
| Thread Pitch | 1.5 mm |
| Dorman Number | 610-388 |
| UNSPSC #: | 25171901 |
| TAA Compliant: | Yes |
| Weight: | 0.66 lb |
