Home Brake Nylon Coiled Tubing Air Hose 1/2" OD
Brake

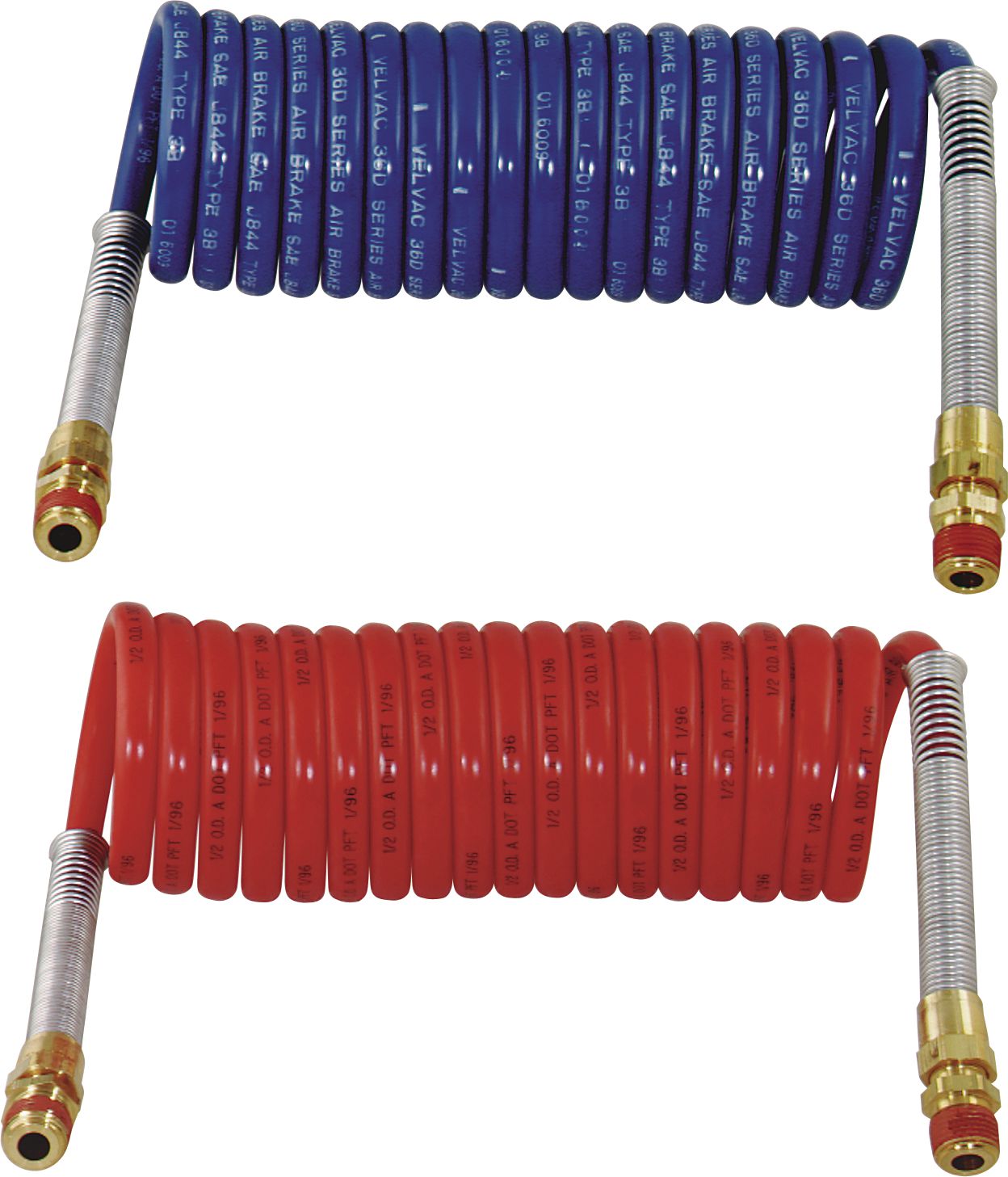

Nylon Coiled Tubing Air Hose, 1/2" OD, SAE J844C, 150PSI Working Pressure, Type 3B
(Pack of 1)

Item#: 81601

Lawson

• Self-coiling, retractable truck air hose
• Nylon Air Brake Tubing
• Packaged in quality matched pairs with spring guards and fittings – each kit contains one red emergency hose, one blue service hose, four 1/2–14 and two 3/8–18 NPTF male couplings
• Temperature range: –40°F to +200°F (–40°C to +93°C)
• Meets SAE J844C, Type 3B and D.O.T. 393.45 Paragraph B specifications

Read More
Check Availability
Usually Ships: Today
While Supplies Last

Frequently Bought Together


1421-60

Item#: 1182720

Air Brake Rubber Hose 3/8" ID x 3/4" OD

Item#: 83892

Air Brake Jumper Hose Assembly 1/2" ID x 28"

Item#: 64377

DOT Union Nylon 3/8 x 3/8"

Item#: 91820

Hose Clamp 304 SS 9/16 to 1-1/4"

Item#: 86726

DOT Connector Male Brass 3/8 x 1/4-18

Item#: 57506

Constant Torque Hose Clamp SS 2-1/4 to 3-1/8"

Item#: 97564

Non-Perforated Clamp 316 SS #4 7/16 to 11/16"

Item#: 58832

Super 77 Hose Clamp SS 1/2 to 1-1/8"

Item#: 85496

Pipe Bushing Brass 3/8-18 x 1/4-18

Item#: 5284

Hex Head Plug Brass 3/8-18 Male NPT

Item#: 5364

DOT Union Brass 1/2 x 1/2"

Item#: 57501

Butt Connector 16 to 14 AWG Blue

Item#: 92823

Nylon Cable Tie 4" Black

Item#: 94609

180-degree Wide Beam Head Light with Side Light

Item#: 1639013

Product Description

• Self-coiling, retractable truck air hose
• Nylon Air Brake Tubing
• Packaged in quality matched pairs with spring guards and fittings – each kit contains one red emergency hose, one blue service hose, four 1/2–14 and two 3/8–18 NPTF male couplings
• Temperature range: –40°F to +200°F (–40°C to +93°C)
• Meets SAE J844C, Type 3B and D.O.T. 393.45 Paragraph B specifications

Technical Specifications

Item#: 81601
Category / Performance Air Brake Coiled Hose Assemblies
Size 10-1/2 - 12
Industry Rating 1 SAE J844C, Type 3B
Industry Rating 2 DOT 393.45 paragraph B
Hose O.D. 1/2 "
Working Pressure 150 PSI
Closed Length 10-1/2 "
Extended Length 12 ft
Length 12
Temperature -40F to +200 F
Hose Cover Material Nylon
UNSPSC #: 25171700
TAA Compliant: No
Weight: 3.25 lb

Suggested Products


Stainless Steel Air Brake Tube Insert 3/8"

Item#: 81179

Stainless Steel Air Brake Tube Insert 1/4"

Item#: 84320

Air Brake Tubing N-2 1/4" OD Black

Item#: 5409

Stainless Steel Air Brake Tube Insert 1/2"

Item#: 81180

Air Brake Tubing T-Hose

Item#: 5411

Air Brake Tubing T-Hose 1/2" OD Black

Item#: 5412

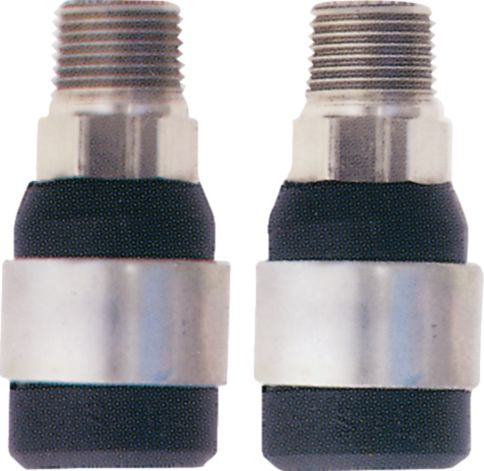

Air Brake Hose End Fitting Assembly Kit 3/8"
