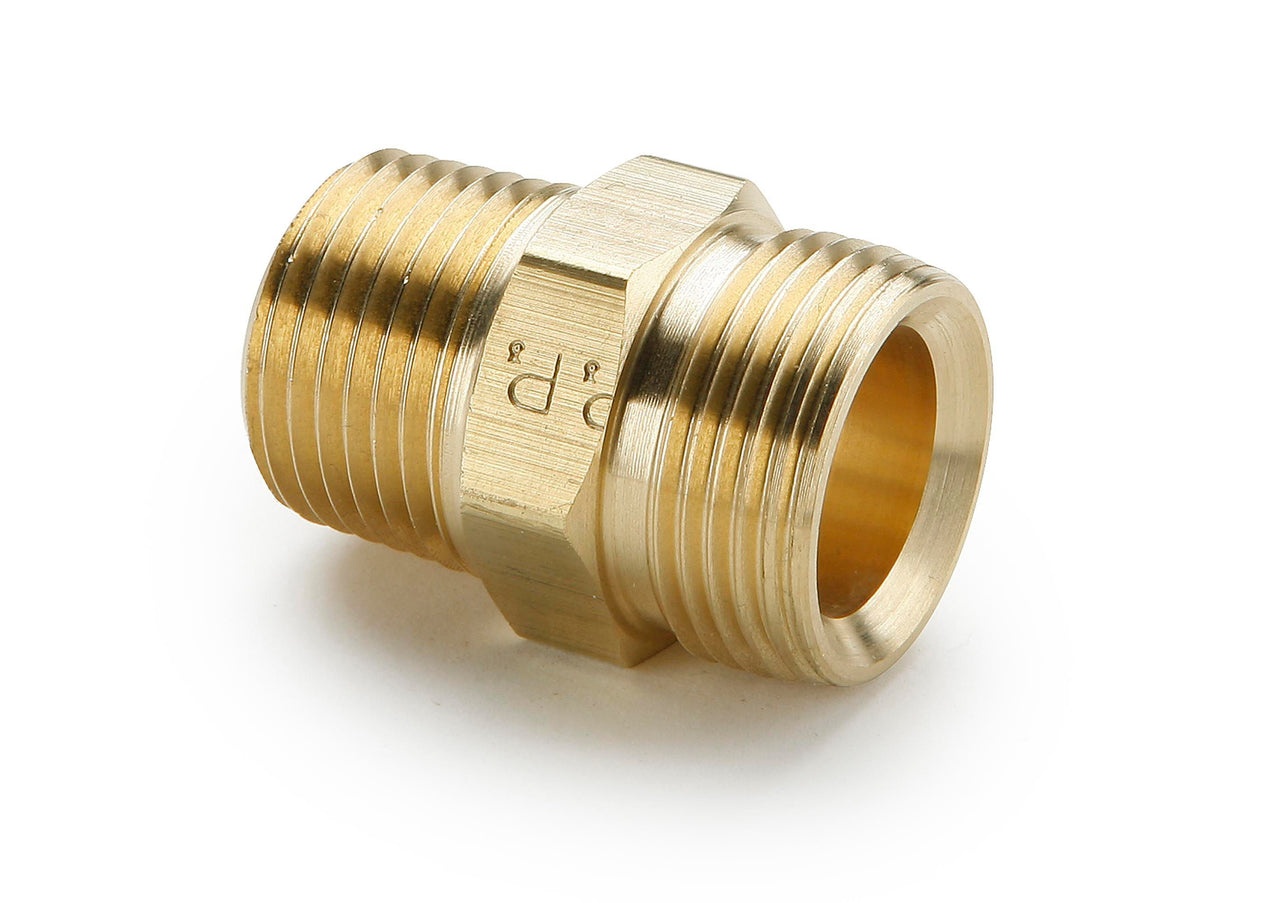

Parker DOT Brass DOT Field Attachable - Adapter 7/8-20x3/8
(Pack of
5)
SKU:97255P Item#: 97255P
Parker's Air Brake Hose Fittings are field attachable fittings for use with SAE J1402 air brake hose. Easy to assemble and disassemble, these fittings meet D.O.T. requirements when used with SAE J1402 air brake hose.
Product Features
• Brass Body
• Meets D.O.T. FMVSS571.106 when used with SAE J1402 air brake hose
Specifications
• Pressure Range: Up to 400 PSI
• Temperature range: –65° to +250° F (–53.8° to +121.1° C)
•Compatible Hose: SAE J1402 air brake hose
Applications
• Air Lines Frame to Axle

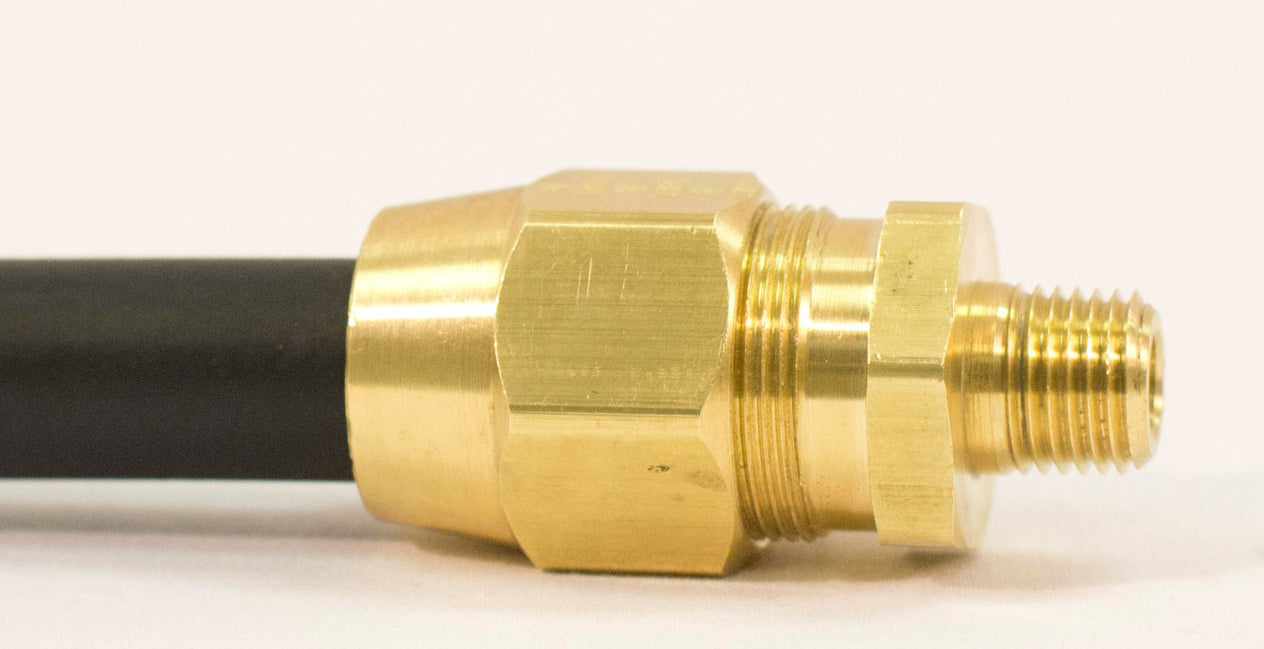

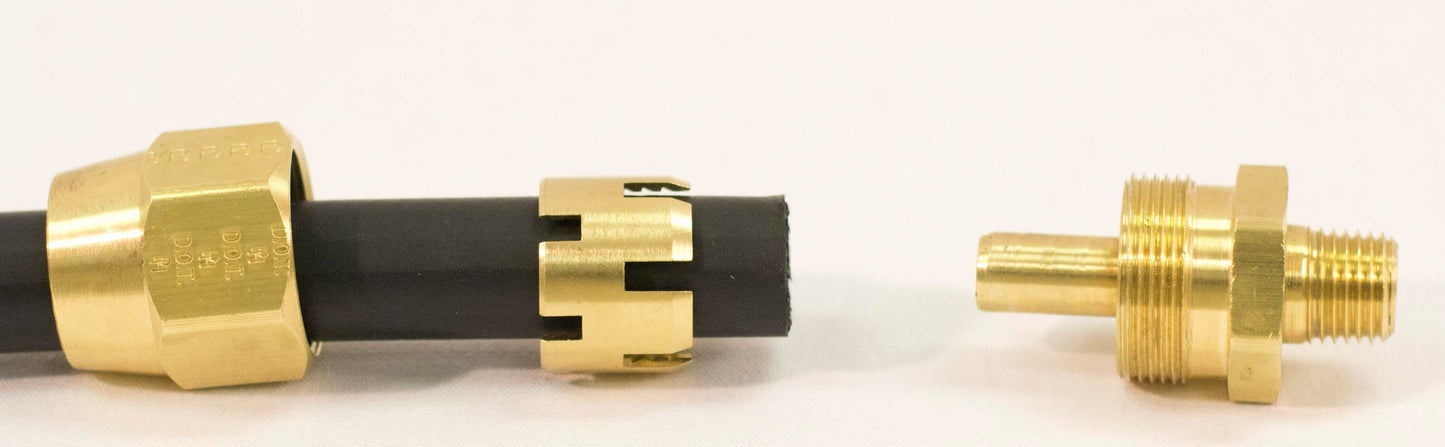

Assembly Instructions
1. Slide nut onto hose.
2. Slide sleeve onto hose with tapered edge toward fitting body.
3. Bottom hose into fitting.
4. Tighten nut until it contacts body hex.
NOTE: Use with Female Connectors.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 23-13
Frequently Bought Together
Air Brake Heavy Duty Drain Cock Brass
Couldn't load pickup availability
DOT Compression Connector Male Brass 1/2 x 1/2"
Couldn't load pickup availability
DOT Compression Union Brass 5/8"
Couldn't load pickup availability
DOT Connector Male Brass 3/8 x 3/8-18
Couldn't load pickup availability
DOT Elbow Male 90° Brass 3/8 x 1/4-18
Couldn't load pickup availability
DOT Connector Male Brass 1/4 x 1/4-18
Couldn't load pickup availability
Hose Clamp 304 SS 3/4 to 1-3/4"
Couldn't load pickup availability
Constant Torque Hose Clamp SS 2-1/4 to 3-1/8"
Couldn't load pickup availability
Non-Perforated Clamp 316 SS #4 7/16 to 11/16"
Couldn't load pickup availability
Z Series Crimp-On Hose End 3/8" x 9/16-18
Couldn't load pickup availability
DOT Connector Male Brass 1/4 x 1/4-18
Couldn't load pickup availability
DOT Elbow Male Nylon 3/8 x 1/4-18
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M8
Couldn't load pickup availability
IFI 100/107 Top Locknut Grade C 5/8-11
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Product Description
Parker's Air Brake Hose Fittings are field attachable fittings for use with SAE J1402 air brake hose. Easy to assemble and disassemble, these fittings meet D.O.T. requirements when used with SAE J1402 air brake hose.Product Features
• Brass Body
• Meets D.O.T. FMVSS571.106 when used with SAE J1402 air brake hose
Specifications
• Pressure Range: Up to 400 PSI
• Temperature range: –65° to +250° F (–53.8° to +121.1° C)
•Compatible Hose: SAE J1402 air brake hose
Applications
• Air Lines Frame to Axle
Assembly Instructions
1. Slide nut onto hose.
2. Slide sleeve onto hose with tapered edge toward fitting body.
3. Bottom hose into fitting.
4. Tighten nut until it contacts body hex.
NOTE: Use with Female Connectors.
Technical Specifications
| Item#: | 97255P |
|---|---|
| Manufacturer Model #: | 76RB-7/8-6 |
| Fitting Type | Compression - Rubber |
| Style | DOT |
| Material | Brass |
| Configuration | Thread Adapter |
| Connection Type A x B | Straight Thread x Pipe Thread |
| Fitting Dimension A | 7/8-20 " |
| Fitting Dimension B | 3/8-18 " |
| Parker Reference No. | 76RB-7/8-6 |
| Type | Compression |
| UNSPSC #: | 25171700 |
| TAA Compliant: | Yes |
| Weight: | 0.48 lb |
