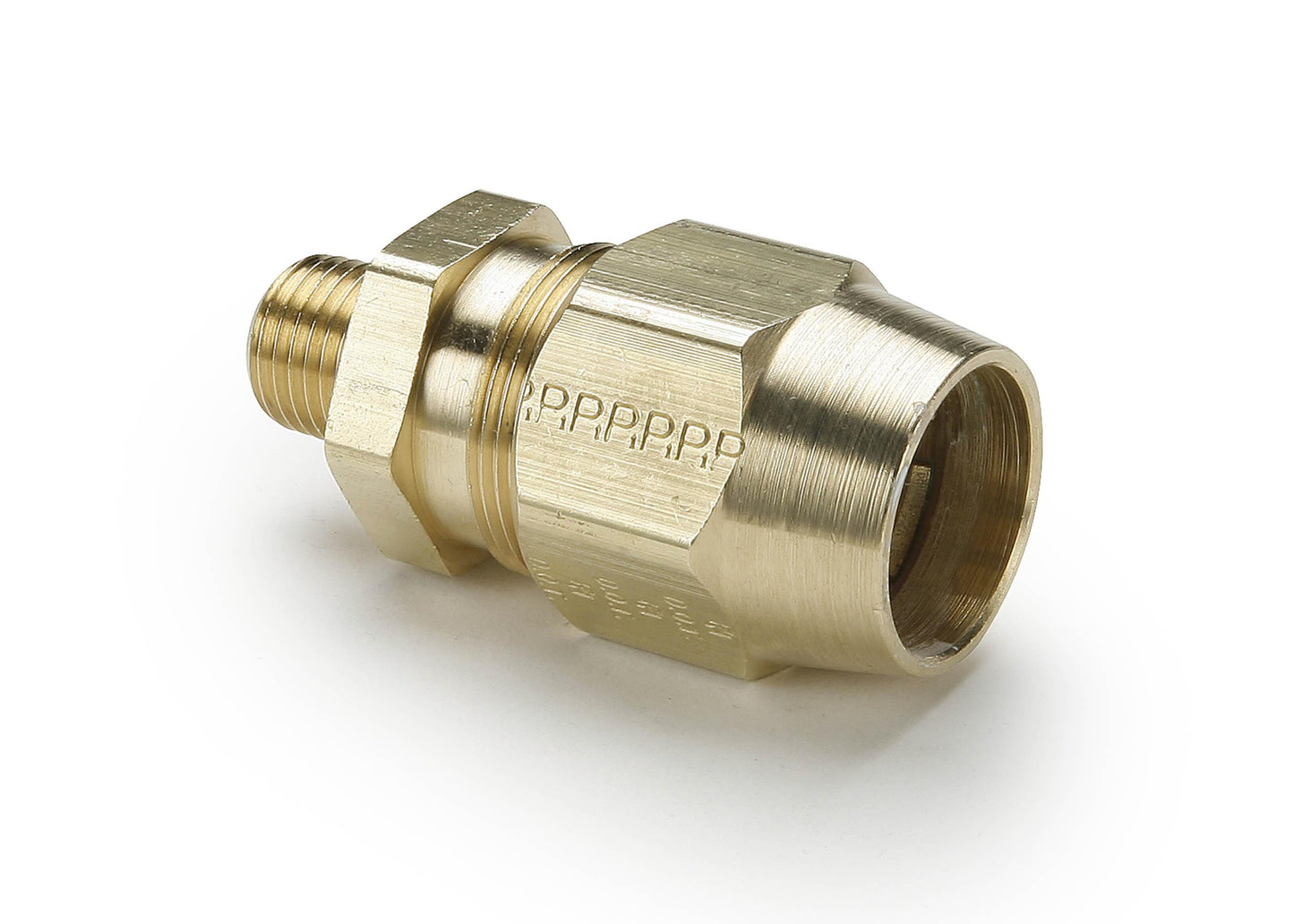

Parker DOT Field Attachable - Male Connector 3/8x3/8
(Pack of
5.0)
Parker's Air Brake Hose Fittings are field attachable fittings for use with SAE J1402 air brake hose. Easy to assemble and disassemble, these fittings meet D.O.T. requirements when used with SAE J1402 air brake hose.
Product Features
• Brass Body
• Meets D.O.T. FMVSS571.106 when used with SAE J1402 air brake hose
Specifications
• Pressure Range: Up to 400 PSI
• Temperature range: –65° to +250° F (–53.8° to +121.1° C)
•Compatible Hose: SAE J1402 air brake hose
Applications
• Air Lines Frame to Axle

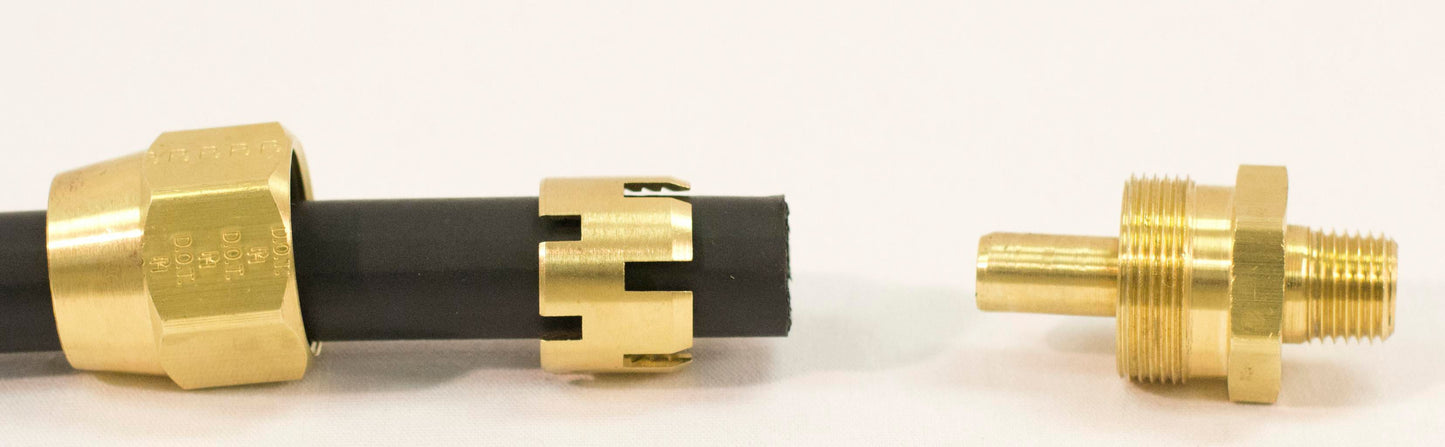

Assembly Instructions
1. Slide nut onto hose.
2. Slide sleeve onto hose with tapered edge toward fitting body.
3. Bottom hose into fitting.

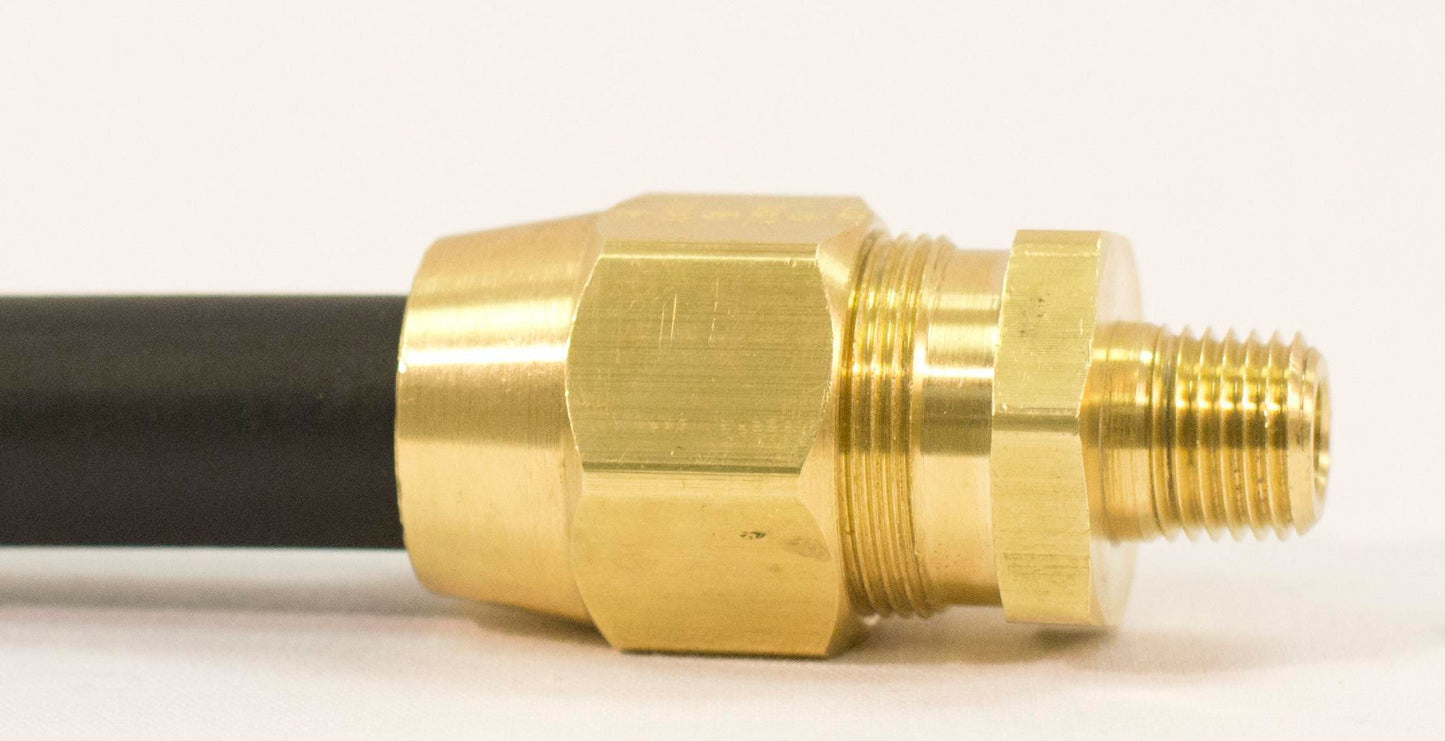

4. Tighten nut until it contacts body hex.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog Page#: 23-13
Frequently Bought Together
DOT Compression Connector Male Brass 3/4 x 1/2"
Couldn't load pickup availability
DOT Compression Union Brass 1/2"
Couldn't load pickup availability
DOT Compression Elbow Male 90° Brass 5/8 x 3/8"
Couldn't load pickup availability
DOT Connector Male Brass 1/2 x 1/2-14
Couldn't load pickup availability
DOT Connector Male Brass 1/4 x 1/4-18
Couldn't load pickup availability
DOT Compression Connector Male Brass 1/4 x 1/8"
Couldn't load pickup availability
DOT Compression Sleeve Brass 1/4"
Couldn't load pickup availability
Hose Clamp 301 SS 3/4 to 1-3/4"
Couldn't load pickup availability
DOT Swivel Elbow Male 360° Brass 3/8 x 1/4-18
Couldn't load pickup availability
DOT Compression Sleeve Brass 3/8"
Couldn't load pickup availability
DOT Elbow Male Nylon 1/4 x 1/8-27
Couldn't load pickup availability
Non-Perforated Clamp 316 SS #4 7/16 to 11/16"
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/2-13
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/8"
Couldn't load pickup availability
Stepdown Butt Connector 22 to 18/16 to 14 AWG
Couldn't load pickup availability
Product Description
Parker's Air Brake Hose Fittings are field attachable fittings for use with SAE J1402 air brake hose. Easy to assemble and disassemble, these fittings meet D.O.T. requirements when used with SAE J1402 air brake hose.Product Features
• Brass Body
• Meets D.O.T. FMVSS571.106 when used with SAE J1402 air brake hose
Specifications
• Pressure Range: Up to 400 PSI
• Temperature range: –65° to +250° F (–53.8° to +121.1° C)
•Compatible Hose: SAE J1402 air brake hose
Applications
• Air Lines Frame to Axle
Assembly Instructions
1. Slide nut onto hose.
2. Slide sleeve onto hose with tapered edge toward fitting body.
3. Bottom hose into fitting.
4. Tighten nut until it contacts body hex.
Technical Specifications
| Item#: | 1655P |
|---|---|
| Class | Field Attachable Air Brake Fittings |
| Fitting Type | Compression - Rubber |
| Style | DOT |
| Material | Brass |
| Configuration | Male Connector |
| Connection Type A x B | Hose I.D. x Pipe |
| Fitting Dimension A | 3/8 " |
| Fitting Dimension B | 3/8 " |
| Dash Size | -6 |
| UNSPSC #: | 25171700 |
| TAA Compliant: | No |
| Weight: | 1.135 lb |
