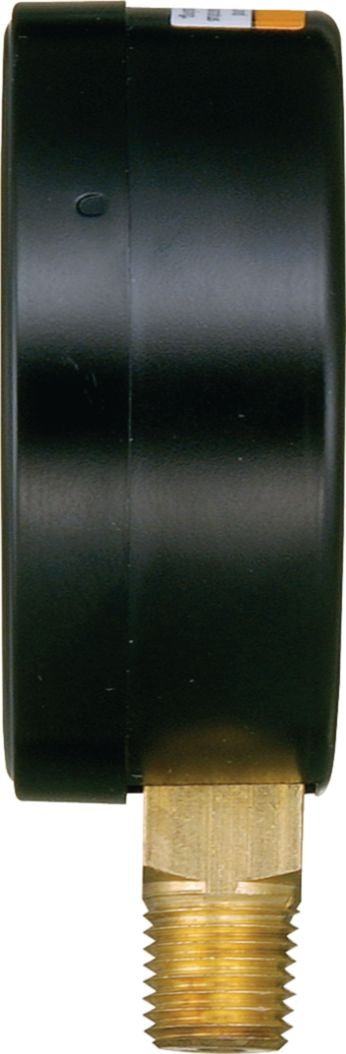

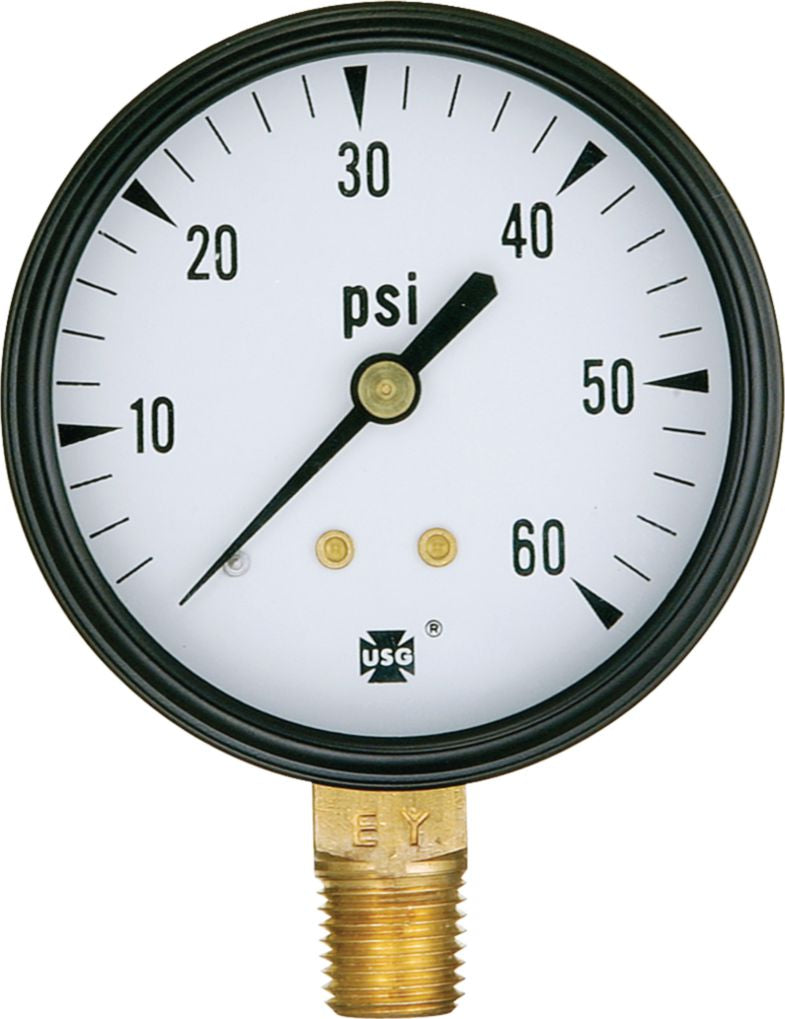

Pressure Gauge Lower Mount, Glass Lens, Bronze Bourdon Tube, Black Painted Steel Outer Case, 1/4-18 Male NPT, 0 to 60PSI
(Pack of
1)
• Pressure is measured in PSI (pounds per square inch)
• Glass lens
• Bronze Bourdon pressure tube
• Brass 1/4–18 male NPT connection (lower or center back mount available)
• Range selection: choose a gauge with a pressure range twice the standard working pressure of the system
• ±2% mid-scale accuracy – Grade B (±3% accuracy over the first and last quarters of the scale)
• Temperature range: –40°F to +150°F
• Black painted steel outer case
• 2-1/2" dial
• Utility gauges provide economical, reliable service in a wide variety of applications including pumps, compressors and other equipment• Utility gauges measure positive pressure of non-corrosive gases and liquids
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 9-69
Frequently Bought Together
Port Block Connector 3/4-14 Female NPT
Couldn't load pickup availability
GLSS300
Couldn't load pickup availability
GL120
Couldn't load pickup availability
Hex Head Plug Brass 1/2-14 Male NPT
Couldn't load pickup availability
DOT Elbow Male Nylon 1/4 x 1/8-27
Couldn't load pickup availability
DOT Connector Male Brass 1/4 x 1/4-18
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
Couldn't load pickup availability
Barb-Lok Hose End 3/8" (-6) x 1/4-18 (-4)
Couldn't load pickup availability
Hose Barb Hose Mender Brass 5/16 x 5/16"
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Red
Couldn't load pickup availability
Stepdown Butt Connector 22 to 18/16 to 14 AWG
Couldn't load pickup availability
Autobahn Ergo Magna EZ Crimper Ratcheting Terminal Crimper
Couldn't load pickup availability
Product Description
• Pressure is measured in PSI (pounds per square inch)• Glass lens
• Bronze Bourdon pressure tube
• Brass 1/4–18 male NPT connection (lower or center back mount available)
• Range selection: choose a gauge with a pressure range twice the standard working pressure of the system
• ±2% mid-scale accuracy – Grade B (±3% accuracy over the first and last quarters of the scale)
• Temperature range: –40°F to +150°F
• Black painted steel outer case
• 2-1/2" dial
• Utility gauges provide economical, reliable service in a wide variety of applications including pumps, compressors and other equipment• Utility gauges measure positive pressure of non-corrosive gases and liquids
Technical Specifications
| Item#: | 29646 |
|---|---|
| Description | Pressure Gauge |
| Type | Lower Mount |
| Thread Style | Male NPT |
| Thread Size | 1/4-18 " |
| Pressure Range | 0 - 60 PSI |
| UNSPSC #: | 27131600 |
| TAA Compliant: | No |
| Weight: | 0.41 lb |
Product Restrictions
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
