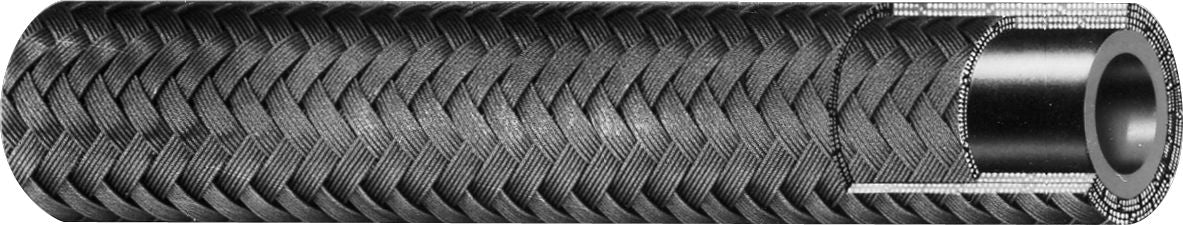

Push-on/Lock-on Low Pressure Hose, Fiber Braid Cover, 1 Fiber Braid Reinforcement, Black, 350PSI, 1/4" ID
(Pack of
500)
SKU:PL12100B04 Item#: PL12100B04
Primarily for use in air hose applications, Low-Pressure Barb-Lok Hoses are also compatible with crude, fuel and lubricating oils, water, anti-freeze, and transmission fluid.
• Temperature ranges:
– Air: 158°F (70°C)
– Water: 185°F (85°C)
– Oil: –40°F to +212°F (–40°C to +100°C)
• Reinforcement: One fiber braid
• Cover: Black
• Inner tube: Synthetic rubber
Use with Barb-Lok Fittings (Do not use hose clamps)
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 8-138
Frequently Bought Together
H201 Easy Couple Hose 3/8" Black 50'
Couldn't load pickup availability
H20106YW-250R
Couldn't load pickup availability
Push-on/Lock-on Fiber Braided Cover Hose 5/8"
Couldn't load pickup availability
Air Master® Diving Umbilical 1/2" ID X 50' Length, Black
Couldn't load pickup availability
Air Master® Diving Umbilical 1/2" ID X 300' Length, Black
Couldn't load pickup availability
Air Master® Diving Umbilical 1/2" ID X 1,000' Length, Black
Couldn't load pickup availability
MegaCrimp Crimp-On Coupling 3/8" x 9/16-18
Couldn't load pickup availability
Pipe Coupling Brass 1/8-27 x 1/8-27
Couldn't load pickup availability
Non-Perforated Clamp 316 SS #4 7/16 to 11/16"
Couldn't load pickup availability
Utility Knife, Folding , 4" Closed
Couldn't load pickup availability
Lock Washer Alloy Steel 3/8"
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Product Description
Primarily for use in air hose applications, Low-Pressure Barb-Lok Hoses are also compatible with crude, fuel and lubricating oils, water, anti-freeze, and transmission fluid.• Temperature ranges:
– Air: 158°F (70°C)
– Water: 185°F (85°C)
– Oil: –40°F to +212°F (–40°C to +100°C)
• Reinforcement: One fiber braid
• Cover: Black
• Inner tube: Synthetic rubber
Use with Barb-Lok Fittings (Do not use hose clamps)
Technical Specifications
| Item#: | PL12100B04 |
|---|---|
| Type | Push-on/Lock-on Hose |
| I.D. | 1/4 " |
| Dash Size | -4 |
| Working Pressure | 350 |
| Burst Pressure | 1,200 PSI |
| Minimum Bend Radius | 3 " |
| Inner Tube Material | Synthetic Rubber |
| Hose Reinforcement | 1 Fiber Braid |
| Hose Cover Material | Fiber Braid |
| Fitting Series | Barb-Lok |
| Temperature | Oil: -40F to +212F, Air: +158F, Water: +185F |
| Color | Black |
| Size | 1/4 (-4) |
| Weight (Lbs. / Ft.) | 0.08 |
| Vacuum Rating (Inches of Hg) | 28 |
| UNSPSC #: | 40142009 |
| TAA Compliant: | Yes |
Product Restrictions
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
