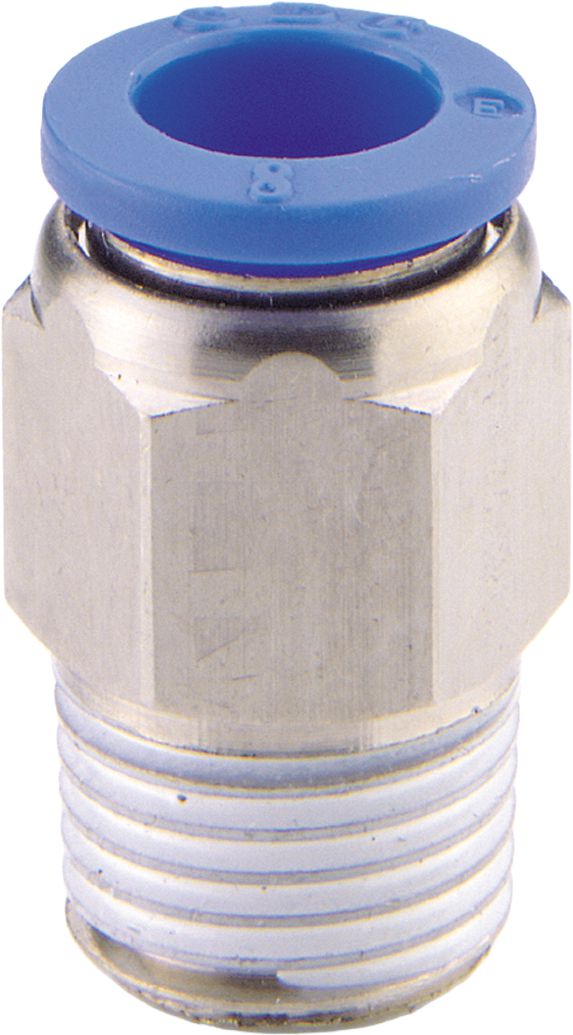

Push-to-Connect Connector, Nickel-Plated Brass, 5/32" x 10-32, Tube x Male UNF, 280 PSI Working Pressure
(Pack of 5)

Item#: 28271

Lawson Products

Designed for compressed air (lubricated or non-lubricated) in elevated working pressures. Fittings offer excellent performance in heavy-duty and corrosive environments. Compatible with both polyurethane and nylon tubing.
• Working Temperature: -4°F to 176°F
• Working Pressure: 280 psi
• Suitable Fluids: Compressed Air/Inert gases
• Vacuum Compatibility: 28.0" HG
Construction:
• Body Material: Nickel Plated Brass
• Gripping Ring: 301 Stainless Steel
• Release Ring: Acetal Plastic
• O-Ring: NBR(Buna-N)
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.

Read More
Check Availability

California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov

Catalog page#: 9-35

Frequently Bought Together

Push-to-Connect Union, Nickel-Plated Brass/PBT Resin, 10 x 10mm, Tube x Tube, 150 PSI Working Pressure

Push-to-Connect Union, Nickel-Plated Brass/PBT Resin, 10 x 10mm

Item#: 54375
Push-to-Connect Union Elbow, Nickel-Plated Brass/PBT Resin, 1/4 x 1/4

Push-to-Connect Union Elbow, Nickel-Plated Brass/PBT Resin, 1/4 x 1/4"

Item#: 86791
Push-to-Connect Tee, Nickel-Plated Brass/PBT Resin, 3/8 x 3/8 x 3/8

Push-to-Connect Tee, Nickel-Plated Brass/PBT Resin, 3/8 x 3/8 x 3/8"

Item#: 86787
Brass male pipe push-on elbow fitting, Male brass push-on 90 degree elbow rigid 1/4 inch x 1/8 inch MPT fitting

Push-to-Connect Elbow, Nickel-Plated Brass, 1/8 x 5/16"

Item#: DY41726952
Push-to-Connect Y Union, Nickel-Plated Brass/PBT Resin, 1/8 x 1/8 x 1/8

Push-to-Connect Y Union, Nickel-Plated Brass/PBT Resin, 1/8 x 1/8 x 1/8"

Item#: 62220
Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 3/8 x 1/8

Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 3/8 x 1/8"

Item#: 62219
Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 6mm x 1/4

Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 5/32" x M5-0.8

Item#: 62237
Push-To-Connect Unequal Union, Nickel-Plated Brass/PBT Resin, 3/8 x 1/4

Push-To-Connect Unequal Union, Nickel-Plated Brass/PBT Resin, 3/8 x 1/4"

Item#: 1593567
Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 1/8 x 1/8

Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 1/8 x 1/8"

Item#: 86799
Pipe Street Elbow Brass 90° 1/8-27 x 1/8-27, Pipe Street Elbow, Brass, 90°, 1/8-27 x 1/8-27, Male NPT x Female NPT, 1200PSI

Pipe Street Elbow Brass 90° 1/4-18 x 1/4-18

Item#: 5316
Forged Body Ball Valve Brass 2 x 2

Forged Body Ball Valve Brass 1/2-14 x 1/2-14

Item#: 63136
Pipe Street Elbow Brass 90° 1/8-27 x 1/8-27, Pipe Street Elbow, Brass, 90°, 1/8-27 x 1/8-27, Male NPT x Female NPT, 1200PSI

Pipe Street Elbow Brass 90° 1/2-14 x 1/2-14

Item#: 5318
DOT Union Nylon 3/8 x 3/8

DOT Union Nylon 3/8 x 3/8"

Item#: 91820
DOT Connector Male Brass 3/8 x 3/8-18, DOT Air Brake Push to Connect Connector, Male, Brass, 3/8 x 3/8-18, Tube x Pipe

DOT Connector Male Brass 3/8 x 1/4-18

Item#: 57506
Hose Clamp 304 SS 2-13/16 to 3-3/4

Hose Clamp 304 SS 9/16 to 1-1/4"

Item#: 86726
Nylon Hose Guard 0.91

Nylon Hose Guard 1.42" ID x 25' Length

Item#: 96563
Push-to-Connect Tee, Nickel-Plated Brass/PBT Resin, 1/4 x 1/4 x 1/4

Push-to-Connect Tee, Nickel-Plated Brass/PBT Resin, 1/4 x 1/4 x 1/4"

Item#: 86786
Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 1/2 x 1/2

Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 1/2 x 1/2"

Item#: 86755
Locknut with Nylon Insert Grade 8 5/16-24, Locknut with Nylon Insert, Grade 8, Alloy Steel, Yellow Zinc Finish, Fine Thread

SAE J995C Locknut with Nylon Insert Grade 8 1/4-20

Item#: 53979
Locknut with Nylon Insert Grade 8 5/16-24, Locknut with Nylon Insert, Grade 8, Alloy Steel, Yellow Zinc Finish, Fine Thread

SAE J995C Locknut with Nylon Insert Grade 8 3/8-16

Item#: 53981
SAE Flat Washer Thru-Hardened Steel 3/8

SAE Flat Washer Thru-Hardened Steel 3/8"

Item#: 88437

Product Description

Designed for compressed air (lubricated or non-lubricated) in elevated working pressures. Fittings offer excellent performance in heavy-duty and corrosive environments. Compatible with both polyurethane and nylon tubing.
• Working Temperature: -4°F to 176°F
• Working Pressure: 280 psi
• Suitable Fluids: Compressed Air/Inert gases
• Vacuum Compatibility: 28.0" HG
Construction:
• Body Material: Nickel Plated Brass
• Gripping Ring: 301 Stainless Steel
• Release Ring: Acetal Plastic
• O-Ring: NBR(Buna-N)
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.

Technical Specifications

Item#: 28271
Style Nickel-Plated Brass Push-To-Connect
Configuration Male Connector
Tube Size 5/32 "
Thread Size 10-32 "
Thread Style UNF
Material Nickel-Plated Brass
Wrench Size 10 mm
Internal Hex Size 2.5 mm
Thread Length 0.13 "
Working Pressure 280 PSI
Temperature Range -4 to +176 °F
UNSPSC #: 40183100
TAA Compliant: No
Weight: 0.08 lb
