Home Hydraulics Fittings Industrial Tubing Push-to-Connect Union Tee, Polyoxymethlene, 1/4" Tube
Advanced Technology Products (ATP)
Push-to-Connect Union Tee, Polyoxymethlene, 1/4
Push-to-Connect Union Tee, Polyoxymethlene, 1/4

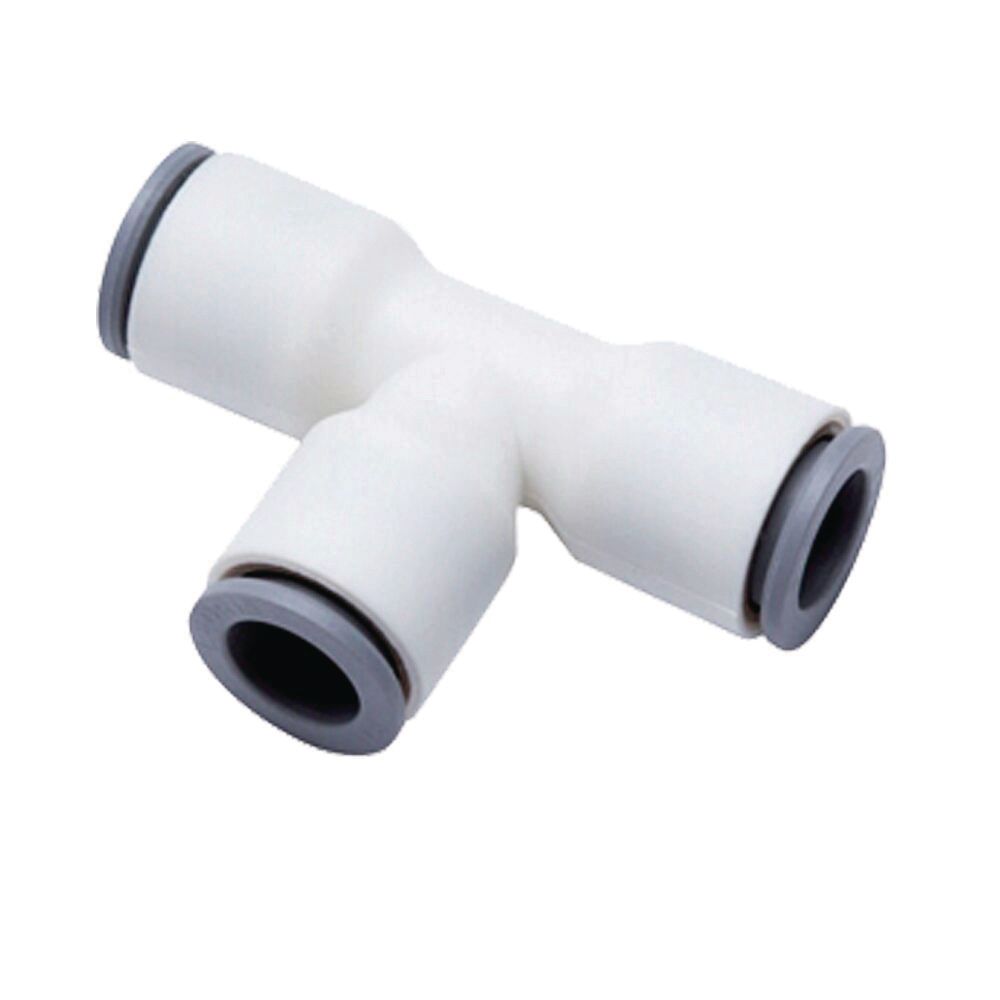

Push-to-Connect Union Tee, Polyoxymethlene, 1/4 x 1/4 x 1/4", Tube x Tube x Tube, 232 PSI Working Pressure
(Pack of 10)

Item#: 1593457

Lawson Products

Designed with National Sanitation Foundation (NSF) approved materials which are FDA compliant for food safety. These push-to-connect fittings create a safe, leak-free and rapid connection. For use in food and beverage equipment and potable/drinking water.
• Working Temperature: 32°F to 158°F
• Working Pressure: at 77°F – 232psi / at 158°F- 145psi
• Suitable Fluids: Potable drinking water(NSF 61) and food/beverage equipment(NSF 51), compressed air & inert gases
Construction:
• Body Material: POM (High-grade polyoxymethylene)
• Gripping Ring: 301 Stainless Steel
• Release Ring: POM (polyoxymethylene) and 301 stainless steel
• O-Ring: EPDM Rubber
• Beverage Market
– Fountain soda
– Beer and wine
– Coffee and tea machines
• Water Treatment
– Reverse osmosis
– Bottled water dispensers
– Bottling equipment
• Industrial
– Food process

Read More
Check Availability

California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov

Frequently Bought Together

Push-to-Connect Elbow, Nickel-Plated Brass/PBT Resin, 10mm x 1/2

Push-to-Connect Elbow, Nickel-Plated Brass/PBT Resin, 6mm x 1/4"

Item#: 98202
Push-to-Connect Union, Nickel-Plated Brass/PBT Resin, 3/8 x 3/8

Push-to-Connect Union, Nickel-Plated Brass/PBT Resin, 3/8 x 3/8"

Item#: 86782
Push-to-Connect Elbow, Nickel-Plated Brass/PBT Resin, 1/4 x 1/4

Push-to-Connect Elbow, Nickel-Plated Brass/PBT Resin, 1/4 x 1/4"

Item#: 86761
Push-to-Connect Elbow, Nickel-Plated Brass/PBT Resin, 5/32

Push-to-Connect Elbow, Nickel-Plated Brass/PBT Resin, 5/32" x 10-32

Item#: 62201
Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 5/16 x 1/4

Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 5/16 x 1/4"

Item#: 87636
Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 5/16 x 3/8

Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 5/16 x 3/8"

Item#: 98196
Push-to-Connect Run Tee, Nickel-Plated Brass/PBT Resin, 6 x 6mm x 1/8

Push-to-Connect Run Tee, Nickel-Plated Brass/PBT Resin, 6 x 6mm x 1/4"

Item#: 62257
Push-to-Connect Run Tee, Nickel-Plated Brass/PBT Resin, 1/4 x 1/4 x 3/8

Push-to-Connect Run Tee, Nickel-Plated Brass/PBT Resin, 1/4 x 1/4 x 3/8"

Item#: 62209
Push-to-Connect Branch Tee, Nickel-Plated Brass/PBT Resin, 1/4 x 1/4 x 1/8

Push-to-Connect Branch Tee, Nickel-Plated Brass/PBT Resin, 1/4 x 1/4 x 1/8"

Item#: 86767
Hex Bushing Steel 3/8-18 x 3/8-18, Hex Bushing, Steel, Black, Schedule 40/80, 3/8-18 x 3/8-18, Male NPT x Female NPT, 150 PSI

Hex Bushing Steel 1/2-14 x 3/8-18

Item#: 8664
Hex Head Plug Brass 1/2-14 Male NPT, Hex Head Plug, Brass, 1/2-14 Male NPT, 1200PSI

Hex Head Plug Brass 1/8-27 Male NPT

Item#: 5362
Pipe Tee Brass 1/4-18 x 1/4-18 x 1/4-18, Pipe Tee, Brass, 1/4-18 x 1/4-18 x 1/4-18, Female NPT x Female NPT x Female NPT

Pipe Tee Brass 1/4-18 x 1/4-18 x 1/4-18

Item#: 5326
DOT Connector Male Brass 3/8 x 3/8-18, DOT Air Brake Push to Connect Connector, Male, Brass, 3/8 x 3/8-18, Tube x Pipe

DOT Connector Male Brass 1/4 x 1/8-27

Item#: 57504
Z Series Crimp-On Hose End 1/2

Z Series/1A Series Crimp-On Hose End 3/8" x 9/16-18

Item#: 16613
Pipe Street Elbow Brass 90° 1/8-27 x 1/8-27, Pipe Street Elbow, Brass, 90°, 1/8-27 x 1/8-27, Male NPT x Female NPT, 1200PSI

Pipe Street Elbow Brass 90° 3/8-18 x 3/8-18

Item#: 5317
Push-to-Connect Elbow, Nickel-Plated Brass/PBT Resin, 1/8 x 1/8

Push-to-Connect Elbow, Nickel-Plated Brass/PBT Resin, 1/8 x 1/8"

Item#: 86756
Push-to-Connect Union, Nickel-Plated Brass/PBT Resin, 1/2 x 1/2

Push-to-Connect Union, Nickel-Plated Brass/PBT Resin, 1/2 x 1/2"

Item#: 86783
Push-to-Connect Union, Nickel-Plated Brass/PBT Resin, 1/8 x 1/8

Push-to-Connect Union, Nickel-Plated Brass/PBT Resin, 1/8 x 1/8"

Item#: 86779
SAE Flat Washer Thru-Hardened Steel 1/4

SAE Flat Washer Thru-Hardened Steel 1/4"

Item#: 88435
Locknut with Nylon Insert Grade 8 5/16-24, Locknut with Nylon Insert, Grade 8, Alloy Steel, Yellow Zinc Finish, Fine Thread

SAE J995C Locknut with Nylon Insert Grade 8 1/2-13

Item#: 53983
Cross-Over Socket Extension Set, 3/4

Cross-Over Socket Extension Set, 3/8" Drive, 3 Piece

Item#: DY89320050

Product Description

Designed with National Sanitation Foundation (NSF) approved materials which are FDA compliant for food safety. These push-to-connect fittings create a safe, leak-free and rapid connection. For use in food and beverage equipment and potable/drinking water.
• Working Temperature: 32°F to 158°F
• Working Pressure: at 77°F – 232psi / at 158°F- 145psi
• Suitable Fluids: Potable drinking water(NSF 61) and food/beverage equipment(NSF 51), compressed air & inert gases
Construction:
• Body Material: POM (High-grade polyoxymethylene)
• Gripping Ring: 301 Stainless Steel
• Release Ring: POM (polyoxymethylene) and 301 stainless steel
• O-Ring: EPDM Rubber
• Beverage Market
– Fountain soda
– Beer and wine
– Coffee and tea machines
• Water Treatment
– Reverse osmosis
– Bottled water dispensers
– Bottling equipment
• Industrial
– Food process

Technical Specifications

Item#: 1593457
Configuration Union Tee
Tube Size 1/4 "
Material Polyoxymethlene
Working Pressure 232 PSI
Temperature Range 32 to 158 °F
UNSPSC #: 40183100
TAA Compliant: Yes
Weight: 0.07 lb
