Anchor Shackle, Round Pin, 3/8", Carbon Steel, Galvanized, 3,000 lb WLL
(Pack of
2)
SKU:1429901 Item#: 1429901

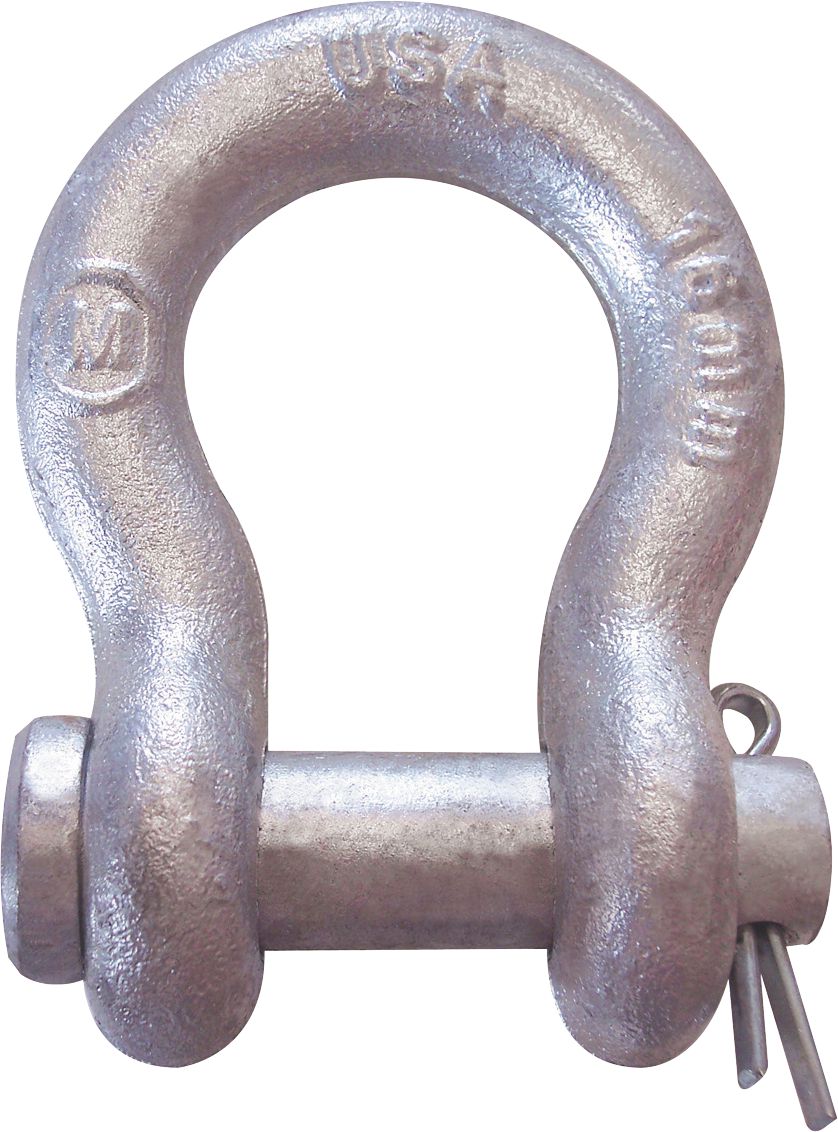

Round pin shackles afford easy removal of the pin which is secured by a cotter pin. Perform well where the pin is subjected to a torque or twisting action. Unsatisfactory in applications where the pin is subjected to an axial load.
• Carbon steel bodies
• Alloy steel pins
• Working Load Limit and traceability codes shown as permanent marking on body and pin
• All shackles meet or exceed Federal Specification RRC-271F, Type IVA, Grade A, Class 1
• Design factor 5:1
CAUTION: Do not exceed working load limits.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 15-22
Frequently Bought Together
Screw Pin Anchor Shackle, 5/16", 1,500 lb WLL
Couldn't load pickup availability
Eye Bolts, Machinery, 3/8 x 1-1/4"
Couldn't load pickup availability
Turned Eyebolt, Zinc-Plated, 1/4" x 1"
Couldn't load pickup availability
Tarp Strap Epdm Rubber with Hooks 19" Long
Couldn't load pickup availability
Tuff-Edge® Web Sling, Polyester, Silver, 6' Length
Couldn't load pickup availability
Tarp Strap Epdm Rubber with Hooks 24" Long
Couldn't load pickup availability
Round Pin Anchor Shackle, 5/8", 9,000 lb WLL
Couldn't load pickup availability
Screw Pin Long Reach Shackle, 1", 19,000 lb WLL
Couldn't load pickup availability
Oversize Screw Pin Anchor Shackle, Stainless Steel, 5/16", 1,300 lb WL
Couldn't load pickup availability
Lawson Open & Shut Nut & Bolt Loosener, Rust Penetrant, SKU DA6152, 20 oz Aerosol Can
Couldn't load pickup availability
IFI 100/107 Top Locknut Grade C 5/8-11
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Product Description
Round pin shackles afford easy removal of the pin which is secured by a cotter pin. Perform well where the pin is subjected to a torque or twisting action. Unsatisfactory in applications where the pin is subjected to an axial load.• Carbon steel bodies
• Alloy steel pins
• Working Load Limit and traceability codes shown as permanent marking on body and pin
• All shackles meet or exceed Federal Specification RRC-271F, Type IVA, Grade A, Class 1
• Design factor 5:1
CAUTION: Do not exceed working load limits.
Technical Specifications
| Item#: | 1429901 |
|---|---|
| Manufacturer Model #: | M348G |
| Type | Anchor Shackle |
| Style | Round Pin |
| Body Material | Carbon Steel |
| Finish | Galvanized |
| Size | 3/8 " |
| Working Load Limit | 3,000 lb |
| Pin Diameter | 7/16 " |
| Pin Material | Alloy Steel |
| Width Between Eyes | 21/32 " |
| Bow Width | 15/16 " |
| Depth | 1-7/16 " |
| UNSPSC #: | 24101641 |
| TAA Compliant: | Yes |
| Weight: | 0.67 lb |
