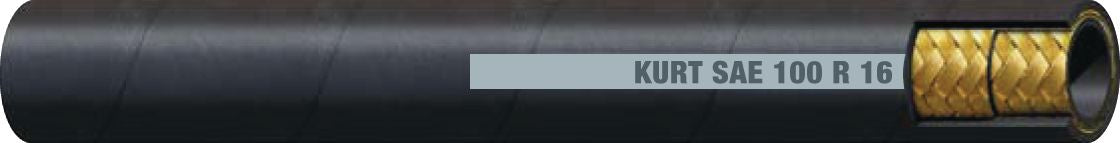

SAE R16S Hydraulic Hose Rubber 1.09" x 50'
(Pack of
50.0)
• Agency Ratings: SAE 100R16S
• Fittings Certified: Kurt braided hose fittings
• Agency Approval: MSHA
• Construction:
– Inner Tube: Synthetic rubber
– Reinforcement: Two high tensile steel wire braid
– Cover: Abrasion-, ozone- and weather-resistant synthetic rubber
• Operating Temperature Range: –40°F to +212°F (–40°C to +100°C)
• Application Notes: Recommended for low- and medium-pressure hydraulic oil lines
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog page#: 8-54
Frequently Bought Together
Kurt Tuff Xtra-Flex High Pressure Hydraulic Hose, 400 Foot
Couldn't load pickup availability
Kurt Tuff Xtra-Flex High Pressure Hydraulic Hose, 300 Foot
Couldn't load pickup availability
Kurt Tuff Xtra-Flex High Pressure Hydraulic Hose, 200 Foot
Couldn't load pickup availability
Hydraulic Plug, 7/8-14"(10) Male JIC SAE 37 Degree Flare
Couldn't load pickup availability
Hydraulic Cap Nut, 9/16-18"(06) Female JIC SAE 37 Degree Flare
Couldn't load pickup availability
Hydraulic Plug, 9/16-18"(06) Male JIC SAE 37 Degree Flare
Couldn't load pickup availability
Constant Torque Hose Clamp SS 2-1/4 to 3-1/8"
Couldn't load pickup availability
DOT Connector Male Brass 3/8 x 1/4-18
Couldn't load pickup availability
Z Series Crimp-On Hose End 1/2 x 3/4-16"
Couldn't load pickup availability
Kurt Tuff Xtra-Flex High Pressure Hydraulic Hose, 200 Foot
Couldn't load pickup availability
M4KH Hydraulic Hose 0.82" x 50'
Couldn't load pickup availability
AG-Lite Rubber Water Hose Assembly 1" x 100'
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 3/8-16
Couldn't load pickup availability
Nutsetter & Bit Set, Magnetic, 22pc
Couldn't load pickup availability
Hex Nut Grade 5 Steel 3/8-16
Couldn't load pickup availability
Product Description
• Agency Ratings: SAE 100R16S• Fittings Certified: Kurt braided hose fittings
• Agency Approval: MSHA
• Construction:
– Inner Tube: Synthetic rubber
– Reinforcement: Two high tensile steel wire braid
– Cover: Abrasion-, ozone- and weather-resistant synthetic rubber
• Operating Temperature Range: –40°F to +212°F (–40°C to +100°C)
• Application Notes: Recommended for low- and medium-pressure hydraulic oil lines
Technical Specifications
| Item#: | 1562949 |
|---|---|
| Industrial/Hydraulic | Hydraulic |
| Type | Rubber - Steel Braided |
| Category/Performance | High Pressure |
| Industry Rating 1 | SAE 100R16S |
| Industry Rating 2 | MSHA |
| Manufacturer Series Number | SAE R16S |
| Manufacturer Series Name | Kurt |
| I.D. | 3/4 (-12) " |
| Hose O.D. | 1.09 " |
| Working Pressure | 3,000 PSI |
| Burst Pressure | 12,000 PSI |
| Fitting Series | Kurt Braided Hose Fittings |
| Bend Radius | 4.5 " |
| Inner Tube Material | Nitrile |
| Hose Reinforcement | 2 Steel Braids |
| Hose Cover Material | Synthetic Rubber |
| Material | Hydraulic Oil |
| Temperature Range | -40F to +212F (+250F Max) |
| UNSPSC #: | 40142020 |
| TAA Compliant: | No |
| Weight: | 28.0 lb |
