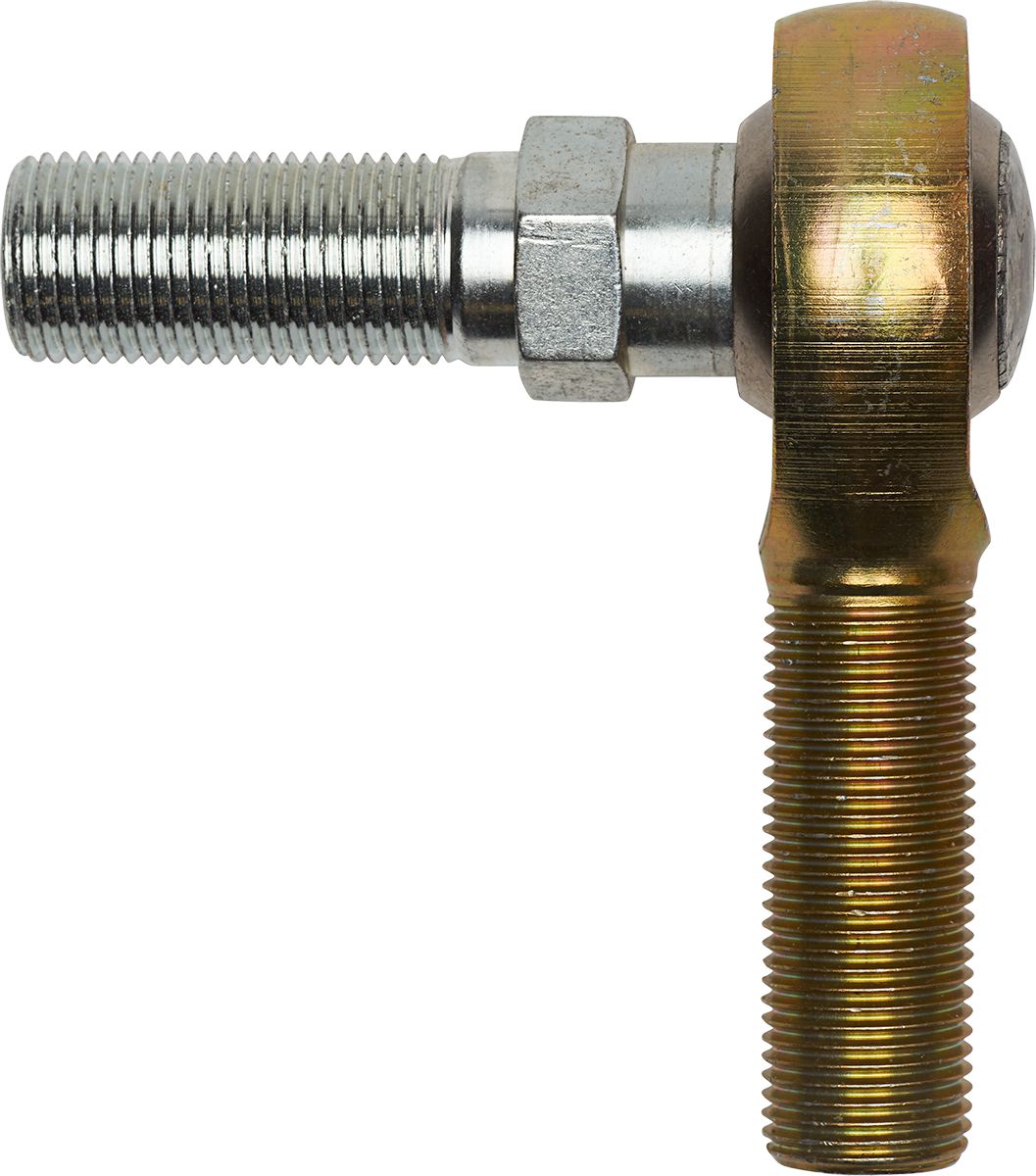

Throttle Ball Joint with Spherical Bearing, UNF Threads, Plated, Left Hand Threads, 3/8-24 Male Rod End with Stud
(Pack of
1)
SKU:59573 Item#: 59573
• Available in both right and left hand threads (studs are right hand threads)
• Principles of design incorporate high-angle misalignment, oscillation and shock resistance with all tolerances controlled
• New bronze race helps assure reduced frictional wear for longer life
• Will not stiffen when subjected to cold
• Allows a 50° misalignment in any direction
• UNF threads
• Plated
• Low carbon steel housing
• Male and female threads are the same size
• Low carbon, case-hardened steel balls
• Recommended for all but extremely high load applications
Couldn't load pickup availability
Catalog page#: 22-26
Frequently Bought Together
MCN Series Lead Clip-On Wheel Weight 1/2 oz
Couldn't load pickup availability
Tire Patch Cement 8oz Chemical
Couldn't load pickup availability
P Series Lead Clip-On Wheel Weight 0.75oz
Couldn't load pickup availability
Universal Neoprene Captive Brass Well Nut #10-32
Couldn't load pickup availability
Phillips Round Washer Head Drill Point Screw #8
Couldn't load pickup availability
Backup Alarm 97dB
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
Nylon Cable Tie 4" Black
Couldn't load pickup availability
Throttle Ball Joint with Spherical Bearing 3/8-24
Couldn't load pickup availability
Throttle Ball Joint with Spherical Bearing 3/4-16
Couldn't load pickup availability
Throttle Ball Joint 3/16"
Couldn't load pickup availability
Throttle Ball Joint with Spherical Bearing 1/2-20
Couldn't load pickup availability
Throttle Ball Joint with Spherical Bearing 3/8-24
Couldn't load pickup availability
Throttle Ball Joint with Spherical Bearing 3/4-16
Couldn't load pickup availability
Product Description
• Available in both right and left hand threads (studs are right hand threads)• Principles of design incorporate high-angle misalignment, oscillation and shock resistance with all tolerances controlled
• New bronze race helps assure reduced frictional wear for longer life
• Will not stiffen when subjected to cold
• Allows a 50° misalignment in any direction
• UNF threads
• Plated
• Low carbon steel housing
• Male and female threads are the same size
• Low carbon, case-hardened steel balls
• Recommended for all but extremely high load applications
Technical Specifications
| Item#: | 59573 |
|---|---|
| Length of Rod End to Center of Stud | 1.938 " |
| Stud Length | .906 " |
| Stud Length to Center of Rod End | 1.57 " |
| Male and Stud Threads | 3/8-24 |
| Static Load Rating | 1,500 lb |
| Stud Thread | 3/8-24 " |
| Thread | Left Hand Threads |
| Plating | Yes |
| A | .906 " |
| B | 1.57 " |
| C | 1.938 " |
| UNSPSC #: | 25172405 |
| TAA Compliant: | Yes |
| Weight: | 0.2 lb |
