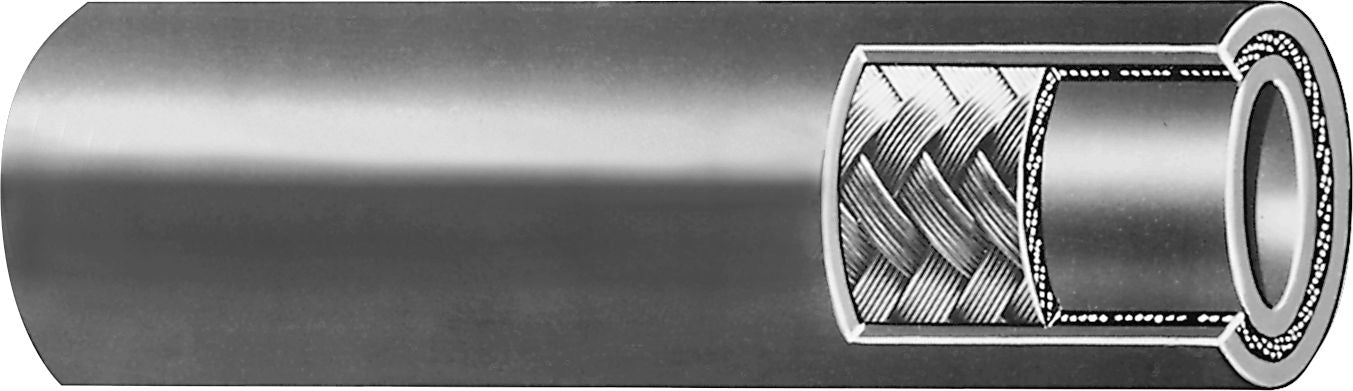

Weatherhead H104 Hydraulic Hose, Neoprene, 1-Steel Braided, 1/4" ID, 17/32" OD, 50' Length, 2750PSI, SAE 100R1
(Pack of
50)
SKU:57473 04 Item#: 57473 04
• Agency Ratings: SAE100R1 Type AT ABS• Fittings Certified: U-Series; Z-Series (-4 to -20); S-Series (except -10); 104N Field-Attachable (except -10)• Agency Approvals: MSHA, ISO 1436a, Marine Application J1942/1 Fuel and Lube Service (requires fire sleeves on -4, -6, -8), ABS1• Construction: – Inner Tube: Nitrile– Reinforcement: One steel braid– Cover: Neoprene• Temperature Range – Petroleum-based fluids: –40°F to +212°F (–40°C to +100°C)
• Application Notes: For medium-pressure hydraulic lines, including farm equipment implement lines and marine fuel and lubrication lines
Frequently Bought Together
Avagard PVC Water Hose Assembly 3/4" x 50'
Couldn't load pickup availability
AG-Lite Rubber Water Hose Lead In 5/8" x 6'
Couldn't load pickup availability
Z Series Crimp-On Hose End 3/4" x 1-3/16-12
Couldn't load pickup availability
Crimp-On Coupling 1/4" x 9/16-18
Couldn't load pickup availability
Quick Disconnect Coupler Steel 1/4" x 1/4-18
Couldn't load pickup availability
Hose Clamp 304 SS 11/16 to 1-1/2"
Couldn't load pickup availability
AG-Lite Rubber Water Hose Lead In 5/8" x 6'
Couldn't load pickup availability
AG-Lite Rubber Water Hose Assembly 3/4" x 15'
Couldn't load pickup availability
Cable Tie 13.38" Black
Couldn't load pickup availability
Master Series Penlight Flashlight
Couldn't load pickup availability
Replacement Broom Handle with Threaded Metal End
Couldn't load pickup availability
6" x 9" Non-Woven Hand Pad, Green, Medium
Couldn't load pickup availability
Replacement Broom Handle with Threaded Metal End
Couldn't load pickup availability
6" x 9" Non-Woven Hand Pad, Green, Medium
Couldn't load pickup availability
Product Description
• Agency Ratings: SAE100R1 Type AT ABS• Fittings Certified: U-Series; Z-Series (-4 to -20); S-Series (except -10); 104N Field-Attachable (except -10)• Agency Approvals: MSHA, ISO 1436a, Marine Application J1942/1 Fuel and Lube Service (requires fire sleeves on -4, -6, -8), ABS1• Construction: – Inner Tube: Nitrile– Reinforcement: One steel braid– Cover: Neoprene• Temperature Range – Petroleum-based fluids: –40°F to +212°F (–40°C to +100°C)• Application Notes: For medium-pressure hydraulic lines, including farm equipment implement lines and marine fuel and lubrication lines
Technical Specifications
| Item#: | 57473 04 |
|---|---|
| Industrial / Hydraulic | Hydraulic |
| Type | Rubber - Steel Braided |
| Category / Performance | Medium Pressure |
| Industry Rating 1 | SAE 100R1 |
| Industry Rating | MSHA Accepted, Marine Application J1942/1/1 (Fuel and Lube Service), ABS1 |
| Manufacturer Series Number | H104 |
| Manufacturer Series Name | Weatherhead |
| I.D. | 1/4 (-4) " |
| Hose O.D. | 17/32 " |
| Working Pressure | 2,750 PSI |
| Burst Pressure | 11,000 PSI |
| Fitting Series | Crimp: Z Series, U Series, S Series, Field Attach: 104N Series |
| Bend Radius | 4 " |
| Inner Tube Material | Nitrile |
| Hose Reinforcement | 1 Steel Braid |
| Hose Cover Material | Neoprene |
| Temperature | Normal |
| Material | Hydraulic Oil |
| Applications | Hydraulic - Constant Flow |
| Temperature Range | -40F to +212F |
| UNSPSC #: | 40142020 |
| TAA Compliant: | Yes |
| Weight: | 9.0 lb |
