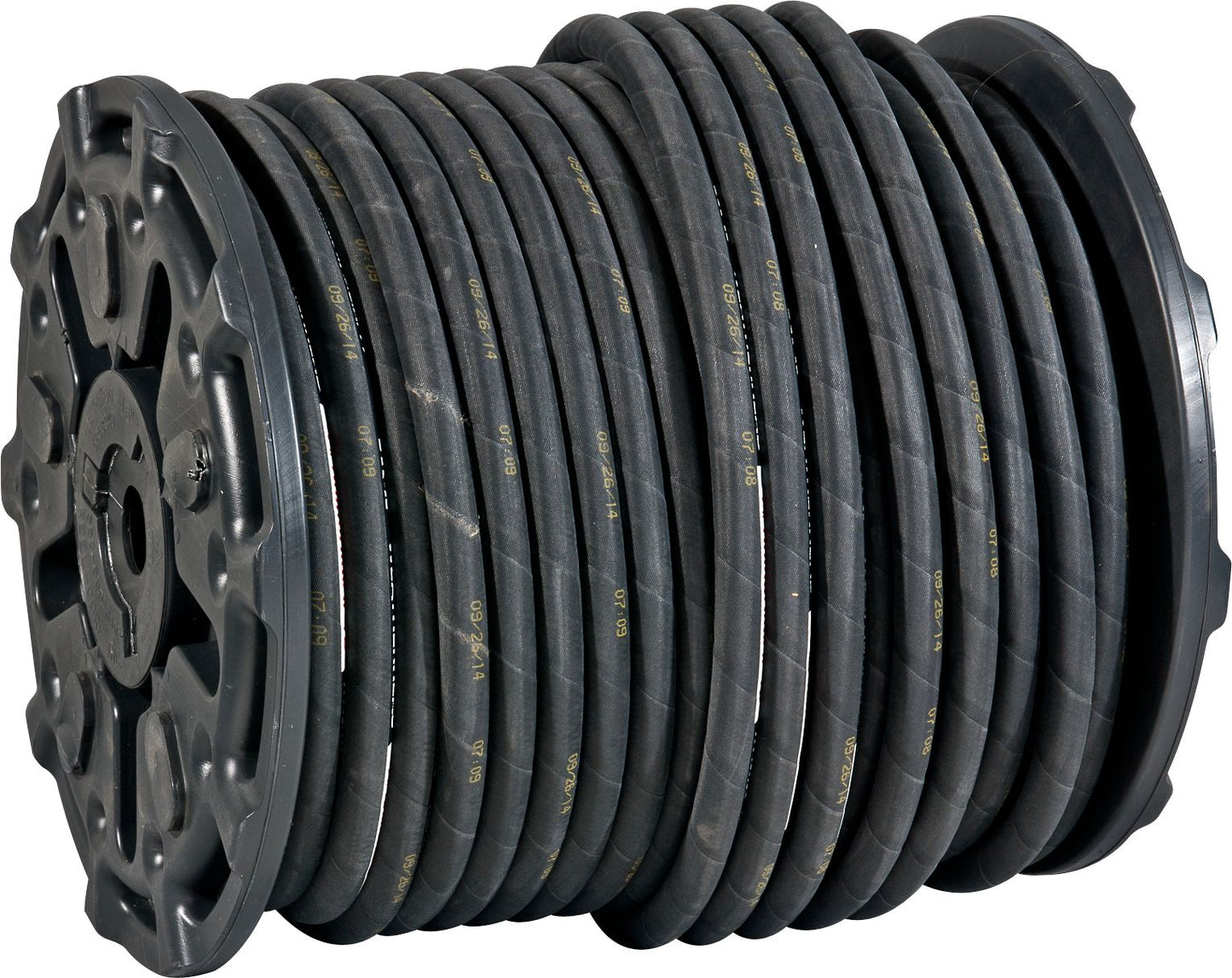

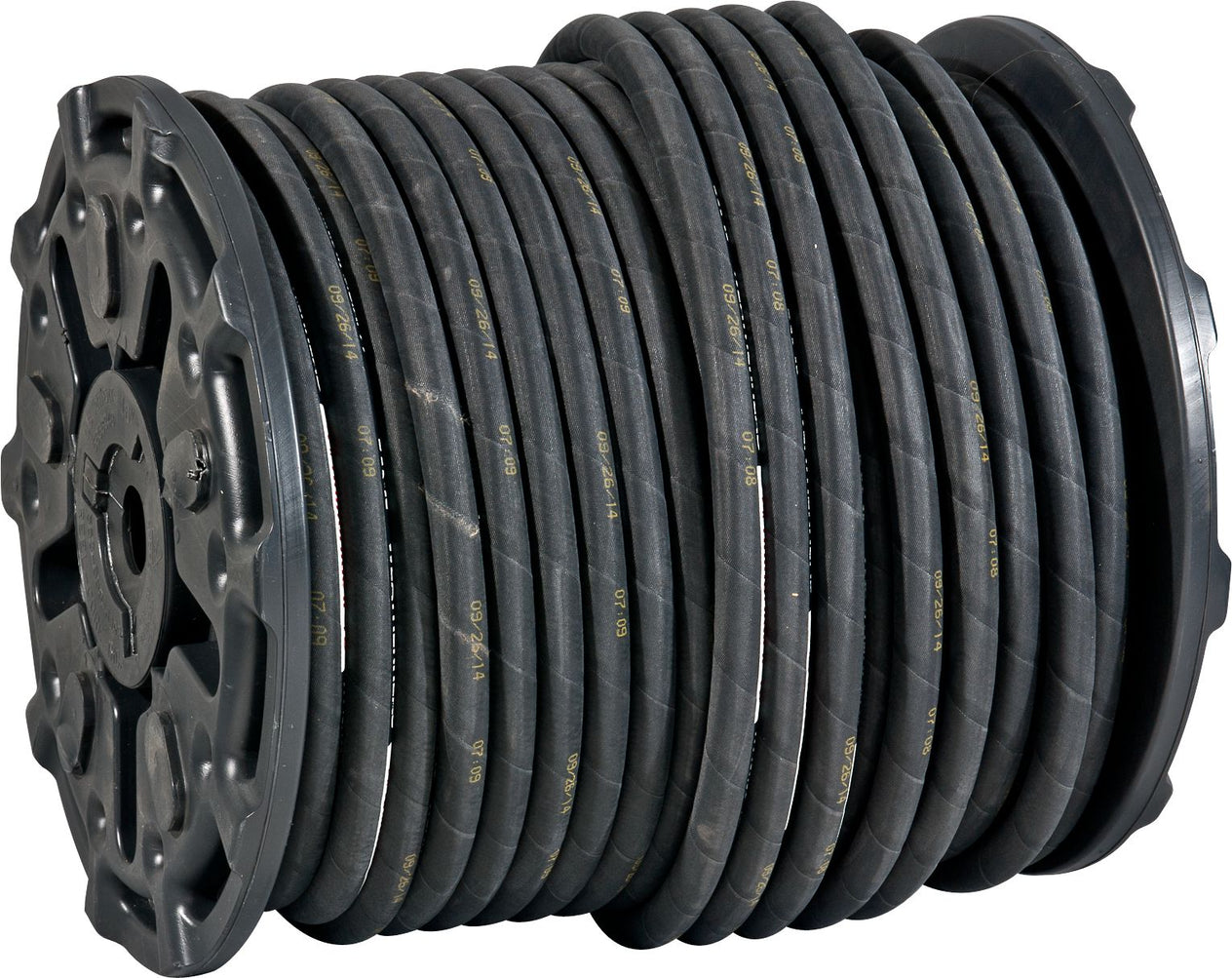

Weatherhead H145R Hydraulic Hose, UHMW Polyethylene, 1-Steel Braided, 1/2" ID, 11/16" OD, 250' Length, 3000PSI, SAE 100R17
(Pack of
250)
SKU:20768 08 Item#: 20768 08
250 ft. rolls consist of no more than three pieces with none shorter than 25 feet. Total length may vary ±25%.
• Agency Ratings: SAE 100R17AT
• Fittings Certified: Z-Series only
• Agency Approvals: MSHA, Marine Application J1942/1 Hydraulic Service
• Construction:
– Inner Tube: Nitrile
– Reinforcement: 1 steel braid (-4 through -6); 2 steel braid (-8 through -16)
– Cover: UHMW (Ultra High Molecular Weight)
• Temperature Range: –40°F to +212°F (–40°C to +100°C)
• Application Notes:
– Used for high-pressure hydraulic lines on off-road equipment, farm equipment and other high-pressure applications
– Tight minimum bend radius and improved flexibility
– Provides 3,000 PSI working pressure rating for all sizes
– RhinoHide II™ UHMW cover provides exceptional abrasion resistance
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
SAE R16S Hydraulic Hose Rubber 0.54" x 50'
Couldn't load pickup availability
M2T Hydraulic Hose Rubber 0.56" x 50'
Couldn't load pickup availability
SAE R16S Hydraulic Hose Rubber 0.67" x 250'
Couldn't load pickup availability
Hydraulic Cap Nut, 7/8-14"(10) Female JIC SAE 37 Degree Flare
Couldn't load pickup availability
Hydraulic Cap Nut, 1-1/16-12"(12) Female JIC SAE 37 Degree Flare
Couldn't load pickup availability
Straight Thread O-Ring Buna-N 0.644 x 0.087"
Couldn't load pickup availability
DOT Union Nylon 3/8 x 3/8"
Couldn't load pickup availability
Hex Head Plug Brass 1/4-18 Male NPT
Couldn't load pickup availability
Hex Head Plug Brass 1/2-14 Male NPT
Couldn't load pickup availability
SAE R16S Hydraulic Hose Rubber 0.54" x 50'
Couldn't load pickup availability
M2T Hydraulic Hose Rubber 0.56" x 50'
Couldn't load pickup availability
SAE R16S Hydraulic Hose Rubber 0.67" x 250'
Couldn't load pickup availability
Waterproof Work Aqua Light 66 LED
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Red
Couldn't load pickup availability
Lawson Open & Shut Nut & Bolt Loosener, Rust Penetrant, SKU DA6152, 20 oz Aerosol Can
Couldn't load pickup availability
Product Description
250 ft. rolls consist of no more than three pieces with none shorter than 25 feet. Total length may vary ±25%.• Agency Ratings: SAE 100R17AT
• Fittings Certified: Z-Series only
• Agency Approvals: MSHA, Marine Application J1942/1 Hydraulic Service
• Construction:
– Inner Tube: Nitrile
– Reinforcement: 1 steel braid (-4 through -6); 2 steel braid (-8 through -16)
– Cover: UHMW (Ultra High Molecular Weight)
• Temperature Range: –40°F to +212°F (–40°C to +100°C)
• Application Notes:
– Used for high-pressure hydraulic lines on off-road equipment, farm equipment and other high-pressure applications
– Tight minimum bend radius and improved flexibility
– Provides 3,000 PSI working pressure rating for all sizes
– RhinoHide II™ UHMW cover provides exceptional abrasion resistance
Technical Specifications
| Item#: | 20768 08 |
|---|---|
| Industrial / Hydraulic | Hydraulic |
| Type | Rubber - Steel Braided |
| Category / Performance | High Pressure |
| Industry Rating 1 | SAE 100R17 |
| Industry Rating | MSHA, Marine Application J1942/1 Hydraulic Service |
| Manufacturer Series Number | H145R |
| Manufacturer Series Name | RhinoHide II |
| I.D. | 1/2 (-8) " |
| Hose O.D. | 11/16 " |
| Working Pressure | 3,000 PSI |
| Burst Pressure | 12,000 PSI |
| Fitting Series | Z Series |
| Bend Radius | 3-1/2 " |
| Inner Tube Material | Nitrile |
| Hose Reinforcement | 1 Steel Braids |
| Hose Cover Material | UHMW Polyethylene |
| Temperature | High |
| Material | Hydraulic Oil |
| Applications | Hydraulic - Constant Flow |
| Temperature Range | -40F to +250F |
| UNSPSC #: | 40142020 |
| TAA Compliant: | No |
| Weight: | 87.0 lb |
