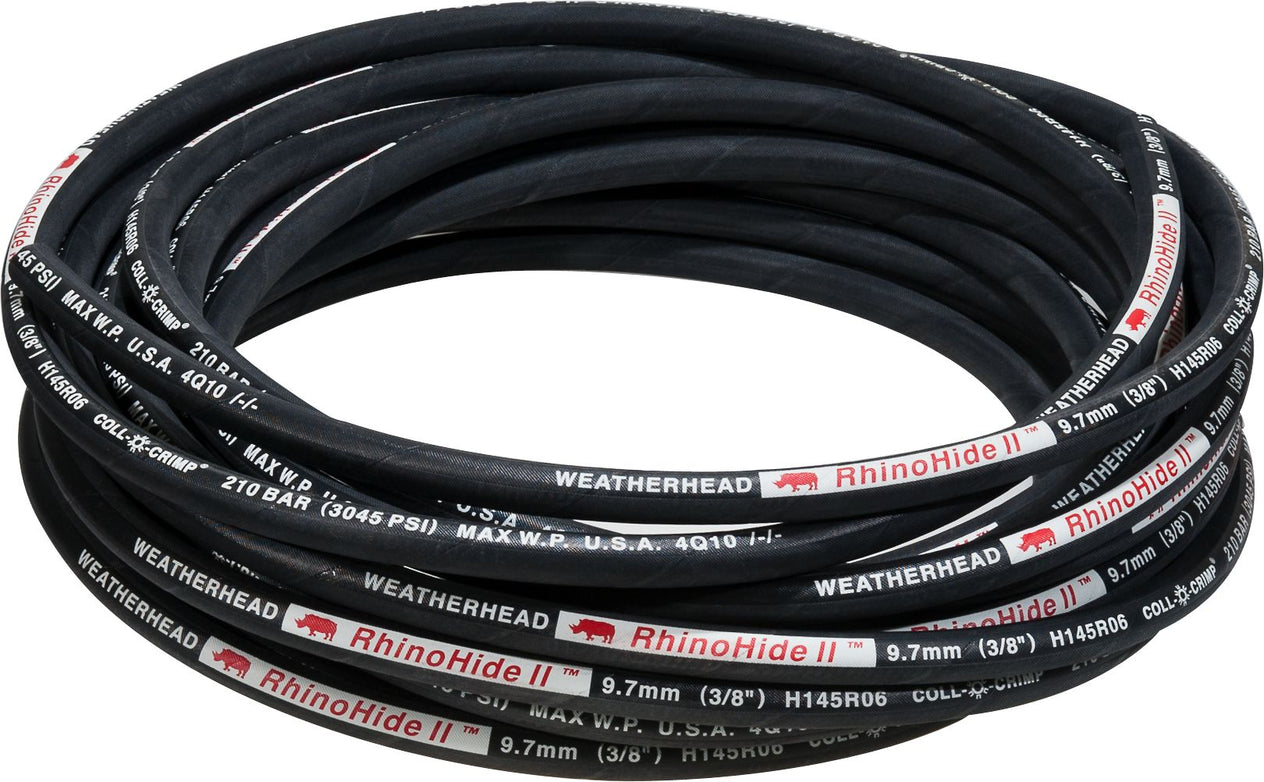

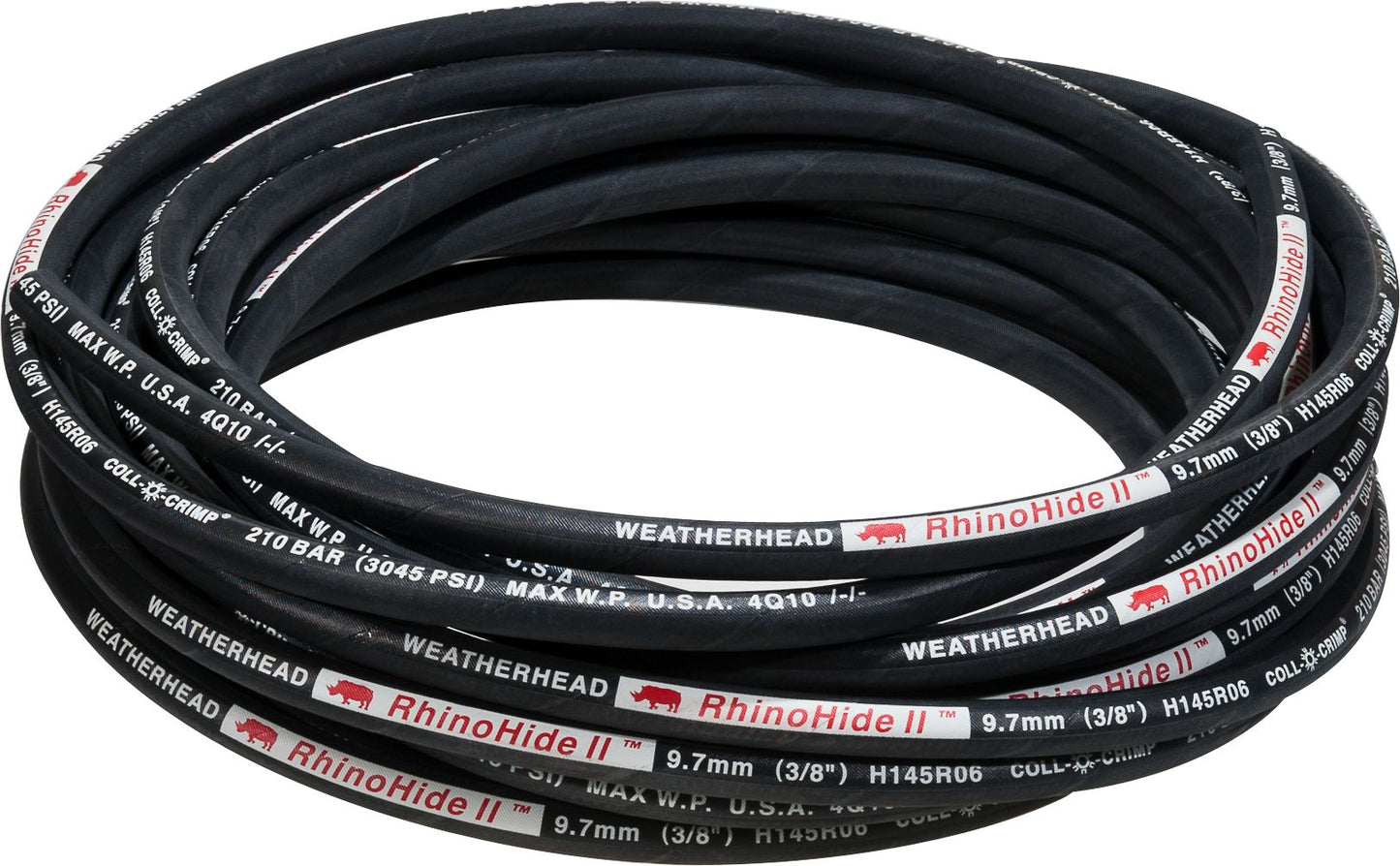

Weatherhead H145R Hydraulic Hose, UHMW Polyethylene, 1-Steel Braided, 3/8" ID, 5/8" OD, 50' Length, 3000PSI, SAE 100R17
(Pack of
50)
SKU:20767 06 Item#: 20767 06
50 ft. rolls consist of two pieces totaling 50 feet (±10%).
• Agency Ratings: SAE 100R17AT
• Fittings Certified: Z-Series only
• Agency Approvals: MSHA, Marine Application J1942/1 Hydraulic Service
• Construction:
– Inner Tube: Nitrile
– Reinforcement: 1 steel braid (-4 through -6); 2 steel braid (-8 through -16)
– Cover: UHMW (Ultra High Molecular Weight)
• Temperature Range: –40°F to +212°F (–40°C to +100°C)
• Application Notes:
– Used for high-pressure hydraulic lines on off-road equipment, farm equipment and other high-pressure applications
– Tight minimum bend radius and improved flexibility
– Provides 3,000 PSI working pressure rating for all sizes
– RhinoHide II™ UHMW cover provides exceptional abrasion resistance
Frequently Bought Together
SAE R16S Hydraulic Hose Rubber 0.94" x 50'
Couldn't load pickup availability
MXT Hydraulic Hose Rubber 0.55" x 50'
Couldn't load pickup availability
MXT Hydraulic Hose Rubber 0.68" x 400'
Couldn't load pickup availability
Hydraulic Plug, 9/16-18"(06) Male JIC SAE 37 Degree Flare
Couldn't load pickup availability
Hydraulic Hose Protector 4 x 2-1/2" Yellow
Couldn't load pickup availability
Crimp-On Hose Coupling 1/2" x 1/2-14
Couldn't load pickup availability
Pipe Coupling Brass 3/8-18 x 3/8-18
Couldn't load pickup availability
Miniature Clamp SS 5/16 to 7/8"
Couldn't load pickup availability
DOT Compression Union Brass 1/4"
Couldn't load pickup availability
SAE R16S Hydraulic Hose Rubber 0.94" x 50'
Couldn't load pickup availability
MXT Hydraulic Hose Rubber 0.55" x 50'
Couldn't load pickup availability
MXT Hydraulic Hose Rubber 0.68" x 400'
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/2-13
Couldn't load pickup availability
Locknut with Nylon Insert Grade 8 5/16-18
Couldn't load pickup availability
PTO Pin Lock 1/4 x 2-1/2"
Couldn't load pickup availability
Product Description
50 ft. rolls consist of two pieces totaling 50 feet (±10%).• Agency Ratings: SAE 100R17AT
• Fittings Certified: Z-Series only
• Agency Approvals: MSHA, Marine Application J1942/1 Hydraulic Service
• Construction:
– Inner Tube: Nitrile
– Reinforcement: 1 steel braid (-4 through -6); 2 steel braid (-8 through -16)
– Cover: UHMW (Ultra High Molecular Weight)
• Temperature Range: –40°F to +212°F (–40°C to +100°C)
• Application Notes:
– Used for high-pressure hydraulic lines on off-road equipment, farm equipment and other high-pressure applications
– Tight minimum bend radius and improved flexibility
– Provides 3,000 PSI working pressure rating for all sizes
– RhinoHide II™ UHMW cover provides exceptional abrasion resistance
Technical Specifications
| Item#: | 20767 06 |
|---|---|
| Industrial / Hydraulic | Hydraulic |
| Type | Rubber - Steel Braided |
| Category / Performance | High Pressure |
| Industry Rating 1 | SAE 100R17 |
| Industry Rating | MSHA, Marine Application J1942/1 Hydraulic Service |
| Manufacturer Series Number | H145R |
| Manufacturer Series Name | RhinoHide II |
| I.D. | 3/8 (-6) " |
| Hose O.D. | 5/8 " |
| Working Pressure | 3,000 PSI |
| Burst Pressure | 12,000 PSI |
| Fitting Series | Z Series |
| Bend Radius | 2-1/2 " |
| Inner Tube Material | Nitrile |
| Hose Reinforcement | 1 Steel Braids |
| Hose Cover Material | UHMW Polyethylene |
| Temperature | High |
| Material | Hydraulic Oil |
| Applications | Hydraulic - Constant Flow |
| Temperature Range | -40F to +250F |
| UNSPSC #: | 40142020 |
| TAA Compliant: | No |
| Weight: | 12.0 lb |
