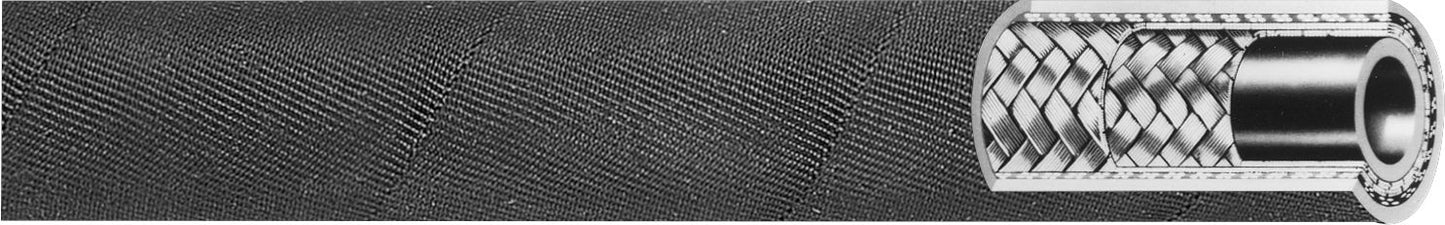

Weatherhead H245 2-Steel Hose 1-13/32" x 50'
(Pack of
50.0)
50 ft. rolls consist of two pieces totaling 50 feet (±10%).
• Agency Ratings: SAE 100R16 Type AT ABS
• Fittings Certified: U-Series; Z-Series; S-Series (except -10); 430 U-Series (-12, -16, -20)
• Agency Approvals: MSHA, Marine Application J1942/1 Fuel and Lubrication Service (fire sleeves required on all sizes)
• Construction:
– Inner Tube: Nitrile blend
– Reinforcement: Two steel braids
– Cover: Neoprene
• Temperature Range:
– Petroleum-based fluids: –40°F to +212°F (–40°C to +100°C)
– Water-based hydraulic fluids: –40°F to +158°F (–40°C to +70°C)
– Water: 32°F to 158°F (0°C to 70°C)
• Application Notes:
– Used for high-pressure hydraulic lines and water transfer, including off-road construction, farm and other high-pressure applications
– Compatible with water/glycol, water, generic hydraulic fluids and diesel fuel
– Provides twice the flexibility of comparable SAE 100R2 hoses (one half the minimum bend radius)
– Does not accept field-attachable fittings
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Frequently Bought Together
Weatherhead H280 Hydraulic Hose Rubber 0.53" x 50'
Couldn't load pickup availability
Weatherhead H280 Hydraulic Hose Rubber 0.94" x 50'
Couldn't load pickup availability
M2T Hydraulic Hose Rubber 0.69" x 50'
Couldn't load pickup availability
Z Series Crimp-On Hose End 3/4" x 1-1/16-12
Couldn't load pickup availability
Crimp-On Hose Coupling 3/8" x 9/16-18
Couldn't load pickup availability
MegaCrimp Crimp-On Coupling 3/8" x 9/16-18
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
Couldn't load pickup availability
DOT Union Nylon 1/4 x 1/4"
Couldn't load pickup availability
Ball Check Grease Fitting Straight
Couldn't load pickup availability
Weatherhead H280 Hydraulic Hose Rubber 0.94" x 50'
Couldn't load pickup availability
M2T Hydraulic Hose Rubber 0.69" x 50'
Couldn't load pickup availability
Weatherhead H280 Hydraulic Hose 0.81" x 250'
Couldn't load pickup availability
Nylon Cable Tie 11.75" Black
Couldn't load pickup availability
Nylon Cable Tie 15.5" Black
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Clear
Couldn't load pickup availability
Product Description
50 ft. rolls consist of two pieces totaling 50 feet (±10%).• Agency Ratings: SAE 100R16 Type AT ABS
• Fittings Certified: U-Series; Z-Series; S-Series (except -10); 430 U-Series (-12, -16, -20)
• Agency Approvals: MSHA, Marine Application J1942/1 Fuel and Lubrication Service (fire sleeves required on all sizes)
• Construction:
– Inner Tube: Nitrile blend
– Reinforcement: Two steel braids
– Cover: Neoprene
• Temperature Range:
– Petroleum-based fluids: –40°F to +212°F (–40°C to +100°C)
– Water-based hydraulic fluids: –40°F to +158°F (–40°C to +70°C)
– Water: 32°F to 158°F (0°C to 70°C)
• Application Notes:
– Used for high-pressure hydraulic lines and water transfer, including off-road construction, farm and other high-pressure applications
– Compatible with water/glycol, water, generic hydraulic fluids and diesel fuel
– Provides twice the flexibility of comparable SAE 100R2 hoses (one half the minimum bend radius)
– Does not accept field-attachable fittings
Technical Specifications
| Item#: | 63515 16 |
|---|---|
| Industrial/Hydraulic | Hydraulic |
| Type | Rubber - Steel Braided |
| Category/Performance | High Pressure |
| Industry Rating 1 | SAE 100R16 |
| Industry Rating 2 | SAE 100R2 |
| Industry Rating | MSHA Accepted, ABS1, Marine Application J1942/1 Fuel and Lube Service |
| Manufacturer Series Number | H245 |
| Manufacturer Series Name | Hi-R Flex |
| I.D. | 1 (-16) " |
| Hose O.D. | 1-13/32 " |
| Working Pressure | 2,000 PSI |
| Burst Pressure | 8,000 PSI |
| Fitting Series | Z Series, U Series, S Series, 430U Series |
| Bend Radius | 6 " |
| Inner Tube Material | Nitrile |
| Hose Reinforcement | 2 Steel Braids |
| Hose Cover Material | Neoprene |
| Temperature | Normal |
| Length | 50 ft |
| Material | Hydraulic Oil |
| Applications | Hydraulic - Constant Flow |
| Temperature Range | Petroleum based fluids -40F to 212F, Water based fluids -40F to +158F |
| UNSPSC #: | 40142020 |
| TAA Compliant: | No |
| Weight: | 43.0 lb |
