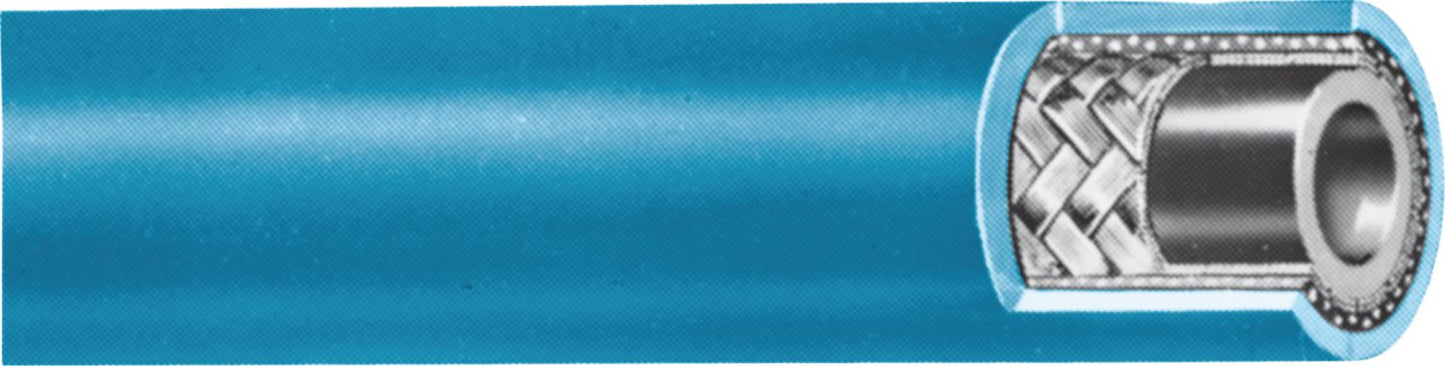

Weatherhead H345 Pressure Washer Hydraulic Hose, Vinyl Nitrile, 1-Steel Braided, 3/8" ID, 41/64" OD, 50' Length, 3000PSI
(Pack of
50)
SKU:55697 06 Item#: 55697 06
• Agency Ratings: Not-rated • Fittings Certified: Z-Series• Agency Approvals: MSHA, IC – 46/10• Construction:– Inner Tube: Nitrile– Reinforcement: One steel braid – Cover: Blue vinyl nitrile• Temperature Range: 0°F to 200°F (–18°C to +93°C)
• Application Notes:– Pressure washer hose for cold and hot water– Resistant to usual detergents– Not for use with steam applicators
NOTE: When using T-420 or T-480 presses, use Adapter Die Ring T-420-25 (Item No. 63689). When using ET4000, T-440 or T-410 presses, use Adapter Die Ring T-410-25 (Item No. 63782) and T-410 Series Spacer Rings.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 8-120
Frequently Bought Together
MXT Hydraulic Hose Rubber 0.68" x 50'
Couldn't load pickup availability
Weatherhead H280 Hydraulic Hose Rubber 1.41" x 50'
Couldn't load pickup availability
Weatherhead H430 Hydraulic Hose 1-7/32" x 50'
Couldn't load pickup availability
Hydraulic Cap Nut, 7/8-14"(10) Female JIC SAE 37 Degree Flare
Couldn't load pickup availability
Hydraulic Cap Nut, 9/16-18"(06) Female JIC SAE 37 Degree Flare
Couldn't load pickup availability
Crimp-On Hose Coupling 3/8" x 3/4-16
Couldn't load pickup availability
DOT Union Nylon 3/8 x 3/8"
Couldn't load pickup availability
DOT Connector Male Brass 3/8 x 1/4-18
Couldn't load pickup availability
DOT Compression Connector Male Brass 3/8 x 1/4"
Couldn't load pickup availability
Blu Shield 6-in-1 Nozzle
Couldn't load pickup availability
Tough-Tek Rubber Pressure Washing Hose 3/8" X 100', Blue
Couldn't load pickup availability
Tough-Tek Rubber Pressure Washing Hose 1/4" X 50' With M22 Fittings
Couldn't load pickup availability
MXT Hydraulic Hose Rubber 0.68" x 50'
Couldn't load pickup availability
Weatherhead H280 Hydraulic Hose Rubber 1.41" x 50'
Couldn't load pickup availability
Weatherhead H430 Hydraulic Hose 1-7/32" x 50'
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 3/8-16
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Product Description
• Agency Ratings: Not-rated • Fittings Certified: Z-Series• Agency Approvals: MSHA, IC – 46/10• Construction:– Inner Tube: Nitrile– Reinforcement: One steel braid – Cover: Blue vinyl nitrile• Temperature Range: 0°F to 200°F (–18°C to +93°C)• Application Notes:– Pressure washer hose for cold and hot water– Resistant to usual detergents– Not for use with steam applicators
NOTE: When using T-420 or T-480 presses, use Adapter Die Ring T-420-25 (Item No. 63689). When using ET4000, T-440 or T-410 presses, use Adapter Die Ring T-410-25 (Item No. 63782) and T-410 Series Spacer Rings.
Technical Specifications
| Item#: | 55697 06 |
|---|---|
| Industrial / Hydraulic | Hydraulic |
| Type | Pressure Washer |
| Category / Performance | Pressure Washer |
| Industry Rating | MSHA Accepted, IC-46/10 |
| Manufacturer Series Number | H345 |
| Manufacturer Series Name | Weatherhead |
| I.D. | 3/8 (-6) " |
| Hose O.D. | 41/64 " |
| Working Pressure | 3,000 PSI |
| Burst Pressure | 12,000 PSI |
| Fitting Series | Z Series |
| Bend Radius | 2-1/2 " |
| Inner Tube Material | Nitrile |
| Hose Reinforcement | 1 Steel Braid |
| Hose Cover Material | Vinyl Nitrile |
| Temperature | Normal |
| Color | Blue |
| Material | Water |
| Applications | Pressure Washer |
| Temperature Range | Pressure Washer Service 0F to 200F, Hydraulic Service -40F to +250F |
| UNSPSC #: | 40142020 |
| TAA Compliant: | Yes |
| Weight: | 12.0 lb |
