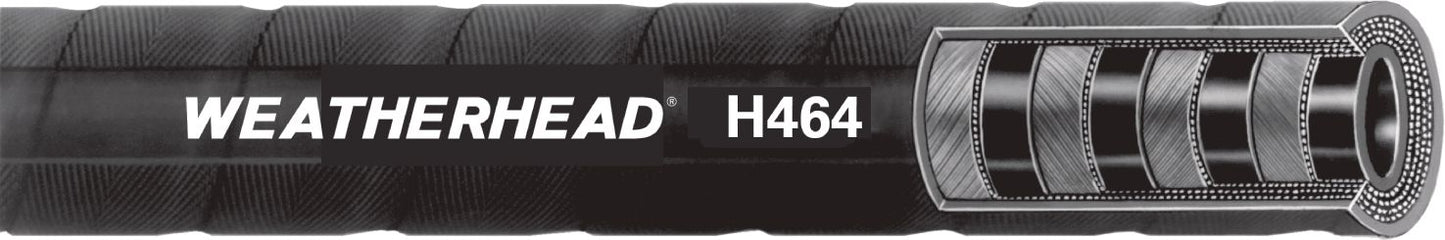

Weatherhead H464 Hydraulic Hose, Nitrile, 4-Spiral Steel Plies, 1" ID, 1.50" OD, 50' Length, 5510PSI
(Pack of
50)
SKU:20421 16 Item#: 20421 16
• Agency Ratings: EN 856 4SH
• Fittings Certified: 4SP Series
• Agency Approval: MSHA
• Construction:
– Inner Tube: Nitrile
– Reinforcement: 4-spiral steel plies
– Cover: Nitrile
• Temperature Range – Petroleum-based fluids: –40°F to +212°F (–40°C to +100°C)
• Application Notes:
– Used for very high-pressure hydraulic lines that experience pulsation during operation
– Recommended for injection molding and drill rig operation
– Abrasion-resistant cover
– Must be crimped on ET4000 Crimper
Frequently Bought Together
Weatherhead H280 Hydraulic Hose Rubber 0.81" x 50'
Couldn't load pickup availability
Weatherhead H280 Hydraulic Hose 0.81" x 250'
Couldn't load pickup availability
Weatherhead H280 Hydraulic Hose Rubber 0.53" x 50'
Couldn't load pickup availability
Crimp-On Hose Coupling 1/2" x 3/4-16
Couldn't load pickup availability
Z Series Crimp-On Hose End 1/2 x 3/4-16"
Couldn't load pickup availability
Crimp-On Hose Coupling 3/8" x 9/16-18
Couldn't load pickup availability
Pipe Bushing Brass 1/2-14 x 3/8-18
Couldn't load pickup availability
Miniature Clamp SS 7/32 to 5/8"
Couldn't load pickup availability
DOT Union Nylon 1/4 x 1/4"
Couldn't load pickup availability
Weatherhead H280 Hydraulic Hose Rubber 0.81" x 50'
Couldn't load pickup availability
Weatherhead H280 Hydraulic Hose 0.81" x 250'
Couldn't load pickup availability
Weatherhead H280 Hydraulic Hose Rubber 0.53" x 50'
Couldn't load pickup availability
Nylon Cable Tie 15.25" Black
Couldn't load pickup availability
Nylon Cable Tie 11.75" Black
Couldn't load pickup availability
Nylon Cable Tie 15.5" Black
Couldn't load pickup availability
Product Description
• Agency Ratings: EN 856 4SH• Fittings Certified: 4SP Series
• Agency Approval: MSHA
• Construction:
– Inner Tube: Nitrile
– Reinforcement: 4-spiral steel plies
– Cover: Nitrile
• Temperature Range – Petroleum-based fluids: –40°F to +212°F (–40°C to +100°C)
• Application Notes:
– Used for very high-pressure hydraulic lines that experience pulsation during operation
– Recommended for injection molding and drill rig operation
– Abrasion-resistant cover
– Must be crimped on ET4000 Crimper
Technical Specifications
| Item#: | 20421 16 |
|---|---|
| Industrial / Hydraulic | Hydraulic |
| Type | Rubber - Spiral Plies |
| Category / Performance | Very High Pressure |
| Industry Rating 2 | EN 856 4SH |
| Manufacturer Series Number | H464 |
| Manufacturer Series Name | Weatherhead |
| I.D. | 1 (-16) " |
| Hose O.D. | 1.50 " |
| Working Pressure | 5,510 PSI |
| Burst Pressure | 22,040 PSI |
| Fitting Series | SP Series |
| Bend Radius | 13.38 " |
| Inner Tube Material | Nitrile |
| Hose Reinforcement | 4 Spiral Steel Plies |
| Hose Cover Material | Nitrile |
| Temperature | Normal |
| Material | Hydraulic Oil |
| Applications | Hydraulic - Impulse |
| Temperature Range | -40F to +212F |
| UNSPSC #: | 40142020 |
| TAA Compliant: | No |
| Weight: | 190.0 lb |
