Home Anchors Wedge Type Stud Bolt Anchor SS 1/2 x 2-3/4"
Anchors

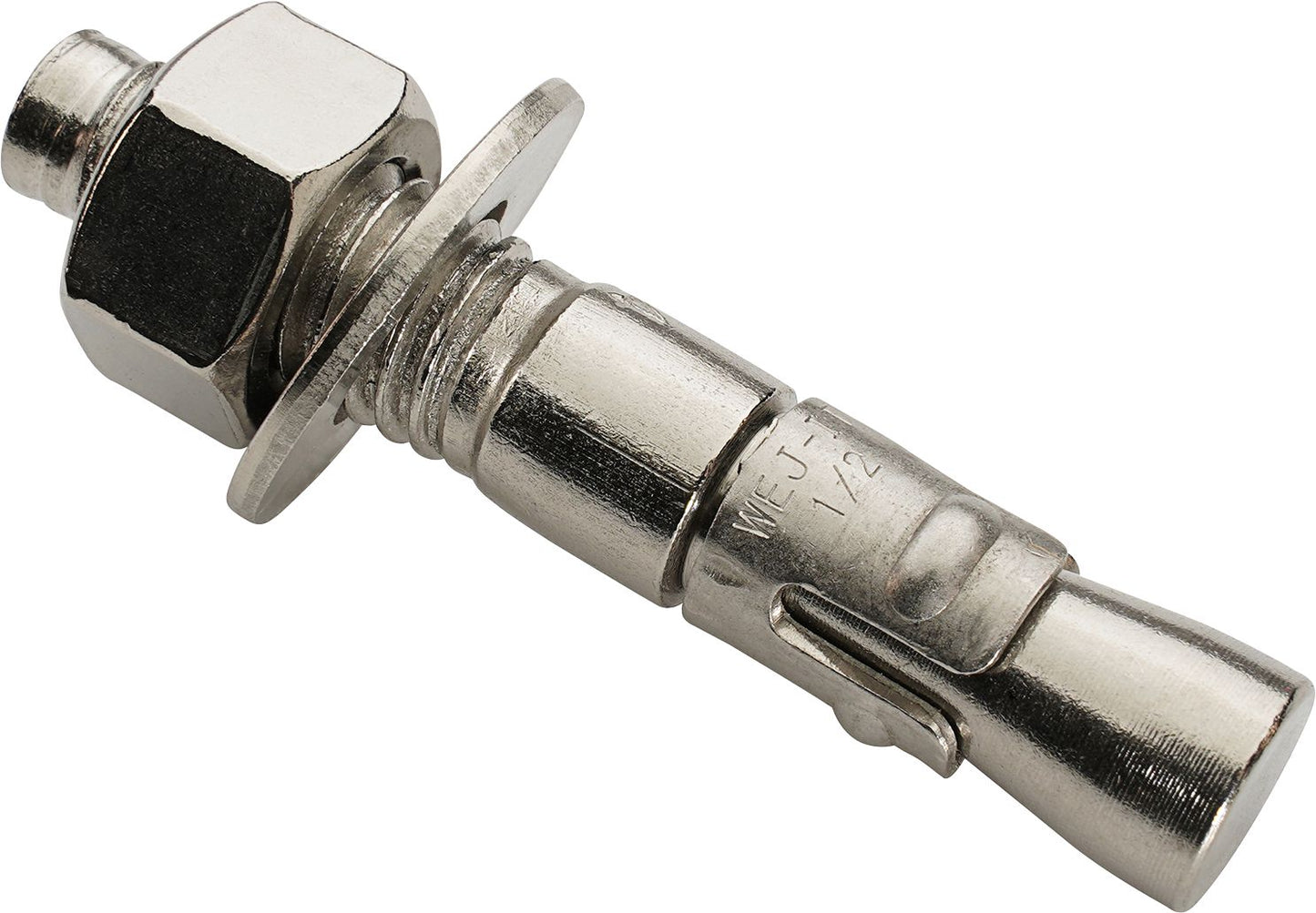

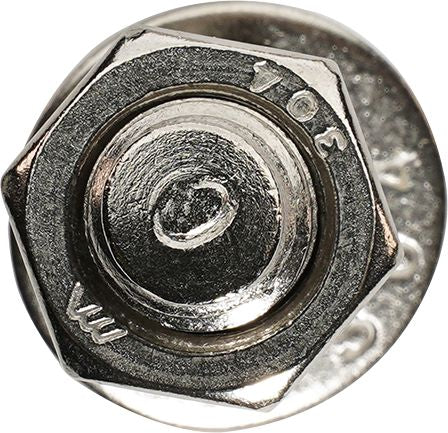

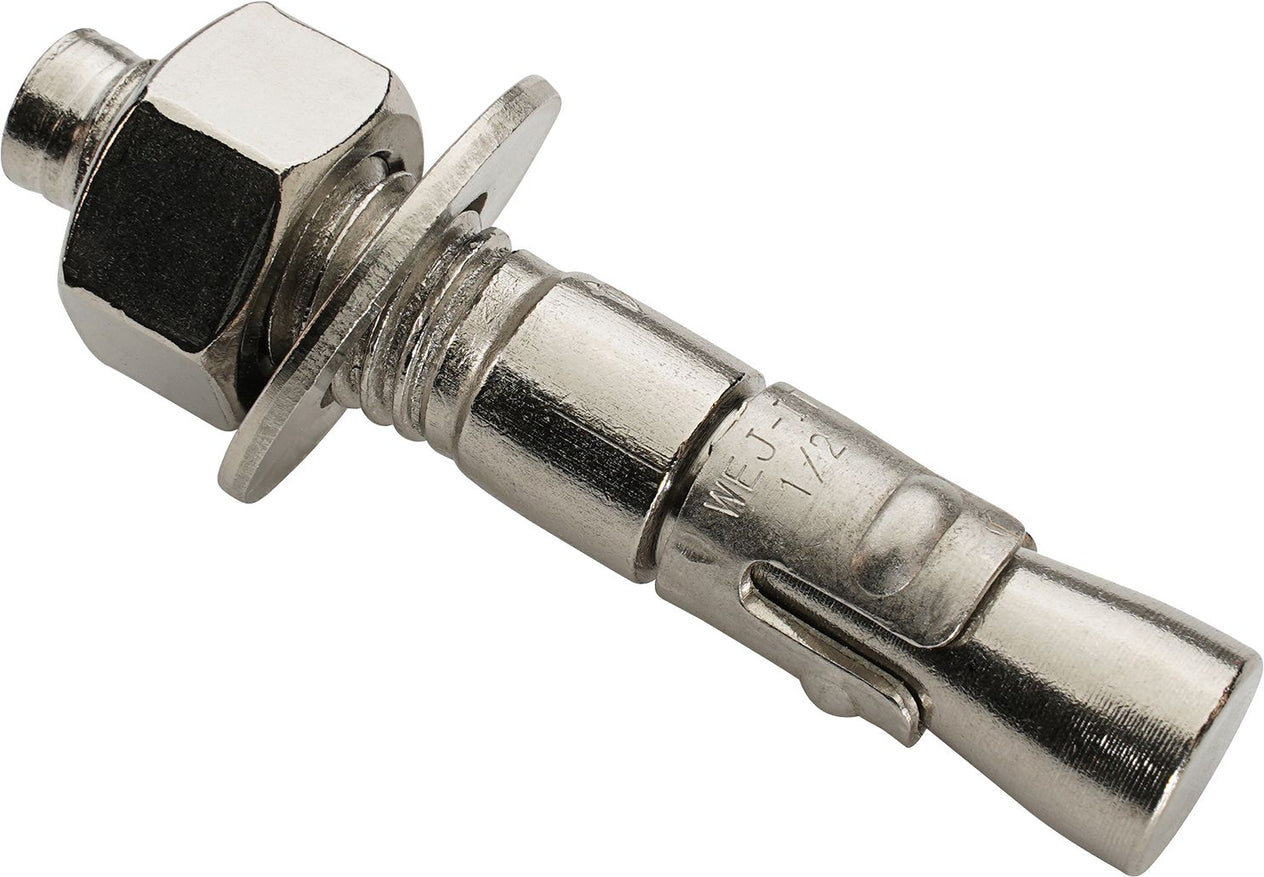

Wedge Type Stud Bolt Anchor SS 1/2 x 2-3/4"
(Pack of 5.0)

Lawson Products

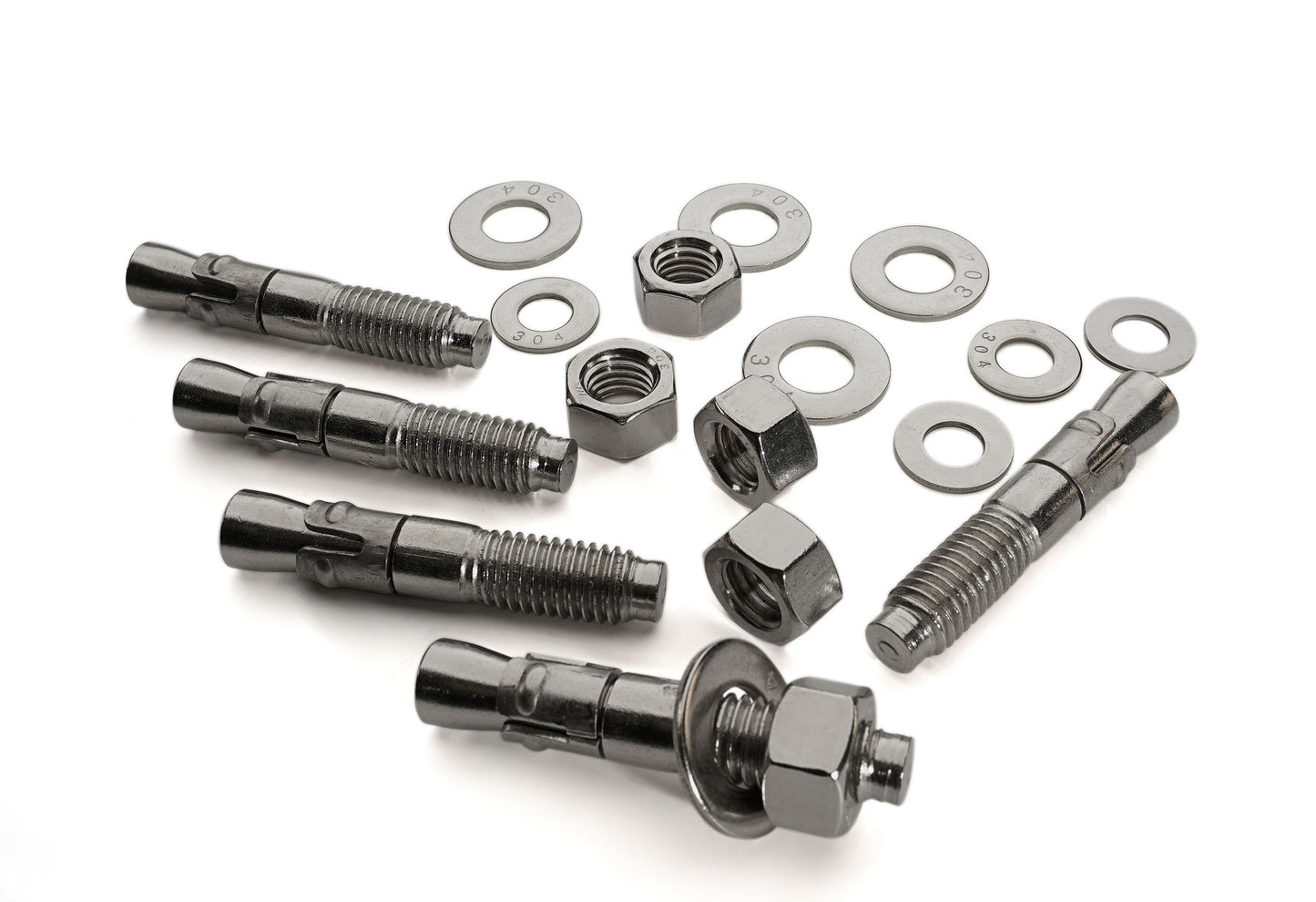

• Available in zinc-plated steel and stainless steel
1. Drill hole of proper diameter in concrete. Drilled hole can be any depth beyond minimum recommended depth.
2. Drive Wedge Anchor into drilled hole through fixture until nut is flush with fixture.
3. Tighten nut until wrench resistance is felt (approximately three to four full turns past the hand-tight position). Anchoring is now complete.

Read More
Check Availability

California Proposition 65: Not Applicable
www.P65Warnings.ca.gov

Catalog Page#: 6-30

Frequently Bought Together


Wing-Type Toggle Bolt Anchor Steel 3/8-16 x 4"

Item#: 25158

Wallboard Anchor Assortment

Item#: 1459425

Anchor Kit Steel 103Pcs

Item#: 64059

SAE Flat Washer Thru-Hardened Steel 1/4"

Item#: 88435

Hex Cap Screw Grade 8 Alloy Steel 3/8-16 x 1-1/2"

Item#: 634

Locknut with Nylon Insert Grade 8 5/16-18

Item#: 53980

IFI 100/107 Top Locknut Grade C 5/8-11

Item#: 80933

Hex Nut Grade 8 Alloy Steel 3/8-16

Item#: A102

SAE J995C Locknut with Nylon Insert Grade 8 1/2-13

Item#: 53983

Wedge Type Stud Bolt Anchor SS 1/2 x 5-1/2"

Item#: 91632

Wedge Type Stud Bolt Anchor Steel 3/8 x 2-1/4"

Item#: 84028

Wedge Type Stud Bolt Anchor Steel 3/4 x 10"

Item#: 91611

Product Description

• Available in zinc-plated steel and stainless steel
1. Drill hole of proper diameter in concrete. Drilled hole can be any depth beyond minimum recommended depth.
2. Drive Wedge Anchor into drilled hole through fixture until nut is flush with fixture.
3. Tighten nut until wrench resistance is felt (approximately three to four full turns past the hand-tight position). Anchoring is now complete.

Technical Specifications

Item#: 91629
Diameter 1/2 "
Length 2-3/4 "
Thread Length 1-1/8 "
Drill Size 1/2 "
Material Stainless Steel
Finish Plain
Type Wedge Anchor
Proof Test Load 3,400 lb
Length Identification Code C
Size 1/2X2-3/4 "
Minimum Embedment 2-1/8 "
UNSPSC #: 31162101
TAA Compliant: No
Weight: 0.915 lb

Product Restrictions

California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
