Home Anchors Wedge Type Stud Bolt Anchor Steel 1/2 x 3-3/4"
Anchors

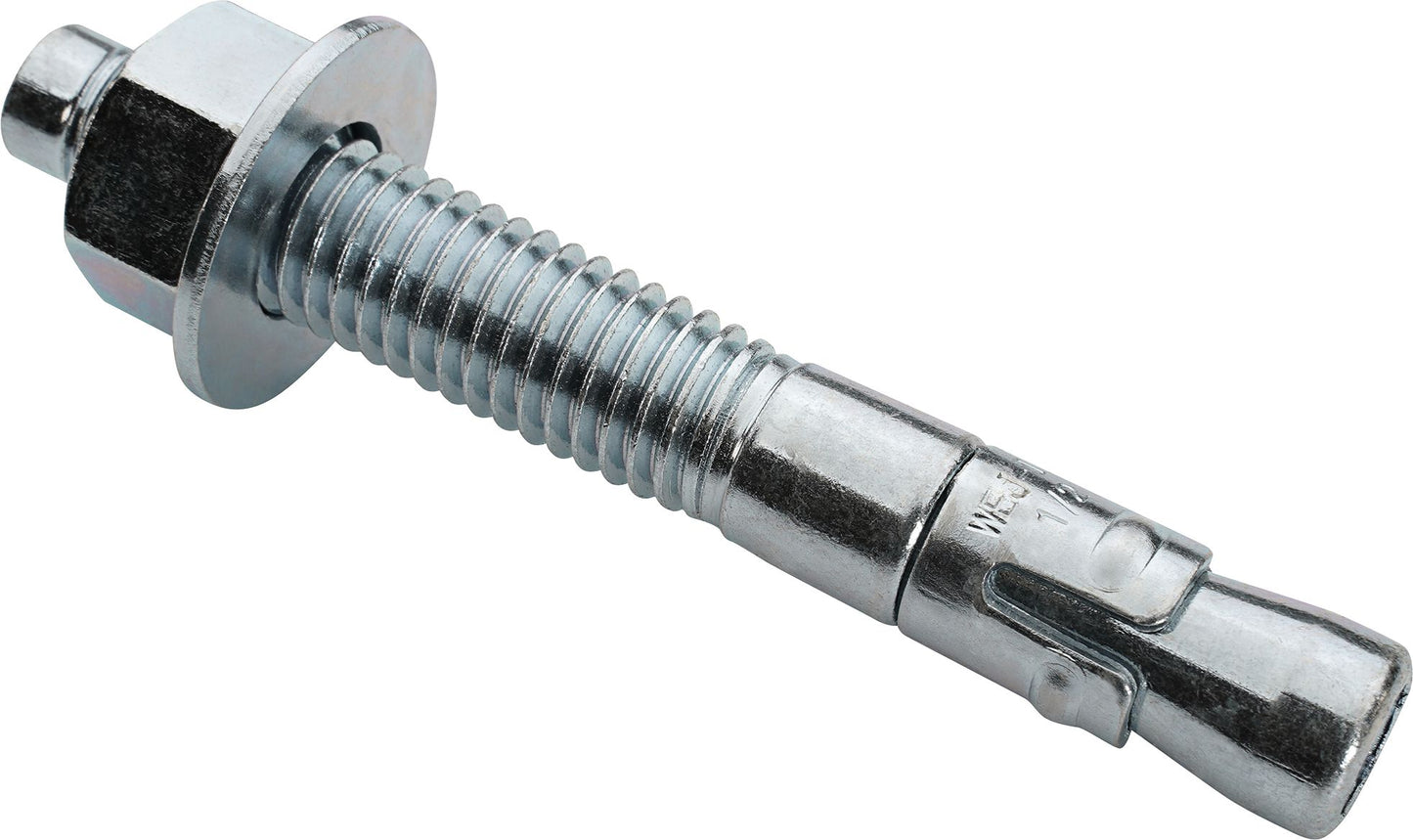

Wedge Type Stud Bolt Anchor, Steel, Zinc Finish, 1/2 x 3-3/4"
(Pack of 10)

Item#: 91605

Lawson Products

• Available in zinc-plated steel and stainless steel
1. Drill hole of proper diameter in concrete. Drilled hole can be any depth beyond minimum recommended depth.
2. Drive Wedge Anchor into drilled hole through fixture until nut is flush with fixture.
3. Tighten nut until wrench resistance is felt (approximately three to four full turns past the hand-tight position). Anchoring is now complete.

Read More
Check Availability

Catalog page#: 6-30

Frequently Bought Together


Masonry Anchor Hex Washer Head Steel 1/4 x 2-1/4"

Item#: 96915

Wing Type Toggle Bolt Steel #10-24 x 3"

Item#: 91648

ALLIGATOR® Anchor Nylon #6 to #10

Item#: 62627

Hex Nut Grade 8 Alloy Steel 1/4-20

Item#: A100

SAE J995C Locknut with Nylon Insert Grade 8 1/2-13

Item#: 53983

Self-Drilling Screw Hex Head 1/4-14 x 1"

Item#: 2539

Stepdown Butt Connector 22 to 18/16 to 14 AWG

Item#: 1495188

SAE Flat Washer Thru-Hardened Steel 3/8"

Item#: 88437

SAE J995C Locknut with Nylon Insert Grade 8 1/4-20

Item#: 53979

Wedge Type Stud Bolt Anchor Steel 1/4 x 3-1/4"

Item#: 84027

Wedge Type Stud Bolt Anchor Steel 3/4 x 5-1/2"

Item#: 91609

Wedge Type Stud Bolt Anchor SS 1/2 x 5-1/2"

Item#: 91632

Product Description

• Available in zinc-plated steel and stainless steel
1. Drill hole of proper diameter in concrete. Drilled hole can be any depth beyond minimum recommended depth.
2. Drive Wedge Anchor into drilled hole through fixture until nut is flush with fixture.
3. Tighten nut until wrench resistance is felt (approximately three to four full turns past the hand-tight position). Anchoring is now complete.

Technical Specifications

Item#: 91605
Diameter 1/2 "
Length 3-3/4 "
Thread Length 2-1/8 "
Drill Size 1/2 "
Material Carbon Steel
Finish Bright Zinc
Type Wedge Anchor
Proof Test Load 3,400 lb

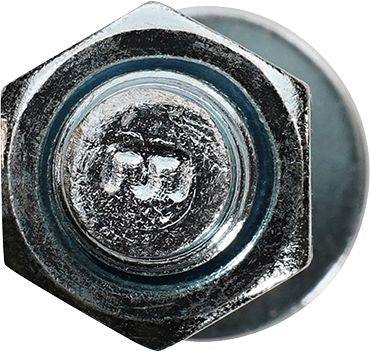

Length Identification Code E
Size 1/2X3-3/4 "
Minimum Embedment 2-1/8 "
UNSPSC #: 31162101
TAA Compliant: No
Weight: 2.31 lb
