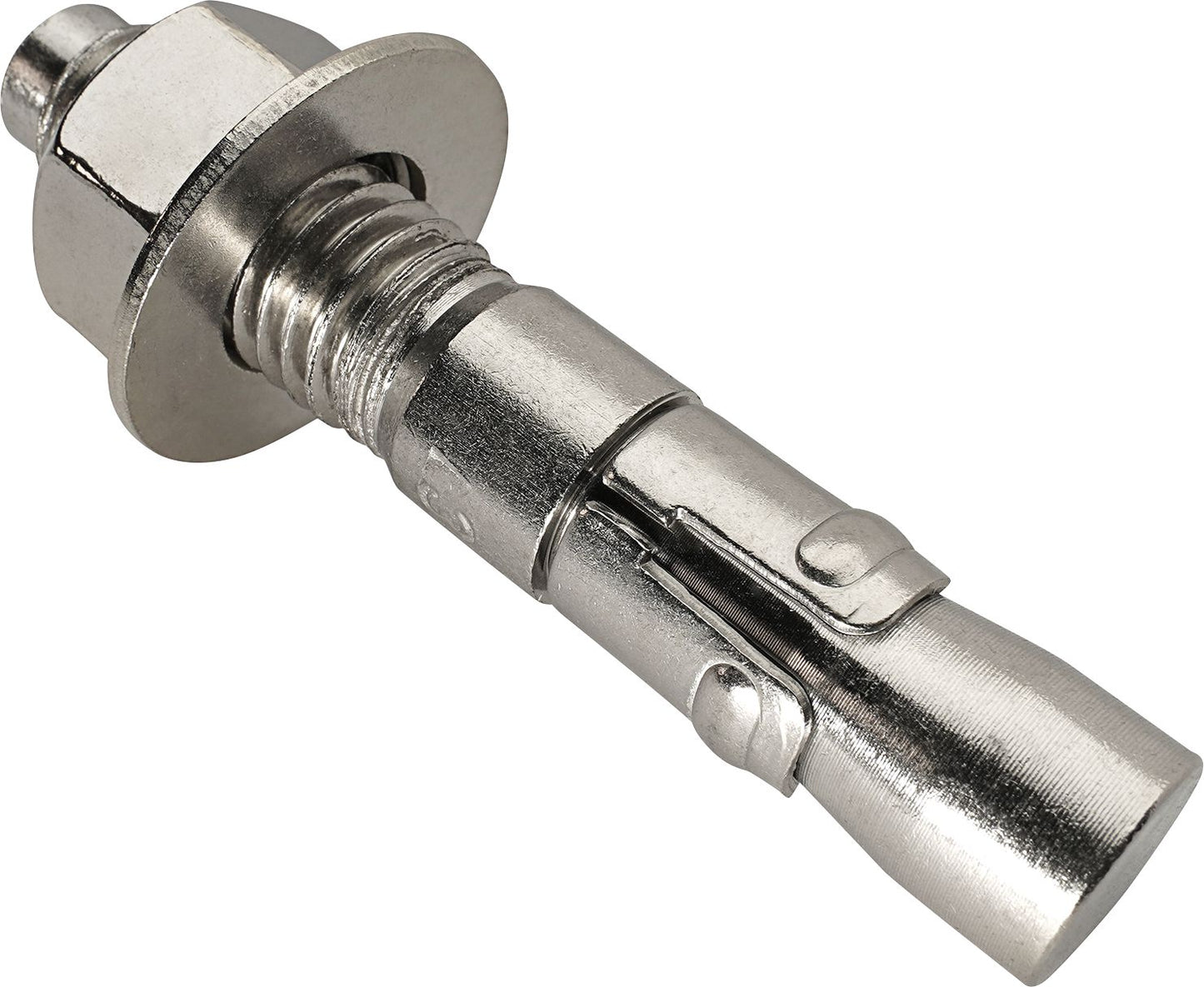

Wedge Type Stud Bolt Anchor SS 5/8 x 3-1/2"
(Pack of 5.0)

Lawson Products

• Available in zinc-plated steel and stainless steel
1. Drill hole of proper diameter in concrete. Drilled hole can be any depth beyond minimum recommended depth.
2. Drive Wedge Anchor into drilled hole through fixture until nut is flush with fixture.
3. Tighten nut until wrench resistance is felt (approximately three to four full turns past the hand-tight position). Anchoring is now complete.

Check Availability

Quantity

California Proposition 65: Not Applicable
www.P65Warnings.ca.gov

Catalog Page#: 6-30

Frequently Bought Together

Lawson Open & Shut Nut & Bolt Loosener, Rust Penetrant, SKU DA6152, 20 oz Aerosol Can

Item#: DA6152

Non-Chlorinated Brake Parts Cleaner 14oz

Item#: KT14126

Hex Cap Screw Grade 8 Alloy Steel 3/8-16 x 1-1/2"

Item#: 634

Wedge Type Anchor Bolt Steel 3/8 x 5"

Item#: 92858

Wedge Type Stud Bolt Anchor SS 3/4 x 5-1/2"

Item#: 91636

Wedge Type Stud Bolt Anchor SS 1/2 x 3-3/4"

Item#: 91630

Product Description

Technical Specifications

Item#:	91633
Diameter	5/8 "
Length	3-1/2 "
Thread Length	1-1/2 "
Drill Size	5/8 "
Material	Stainless Steel
Finish	Plain
Type	Wedge Anchor
Proof Test Load	4,800 lb
Length Identification Code	D
Size	5/8X3-1/2 "
Minimum Embedment	2-5/8 "
UNSPSC #:	31162101
TAA Compliant:	No
Weight:	1.89 lb
