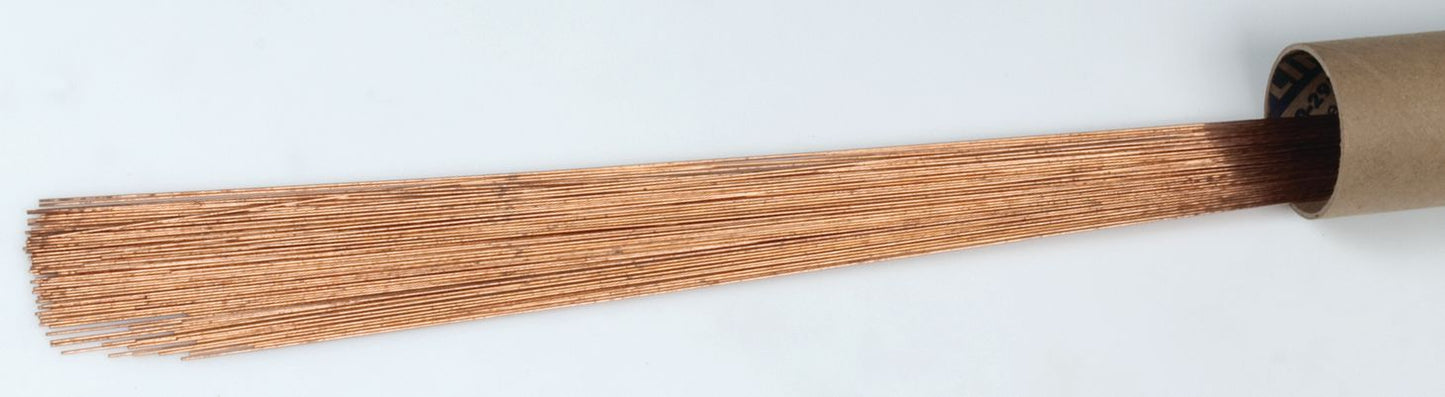

349 Tool Steel TIG Wire, Solid, 33 to 36 HRC Hardness, 100% Ar Shielding Gas, 26% Elongation, 36" Length, 0.035"
(Pack of
1)
SKU:CW1986 Item#: CW1986
Specially formulated for welding P-mold steels and most chrome-moly alloy steels.
Superior Advantages
• Crack-resistant
• Premium operability
• High wear resistance
Tensile Strength: 89,700 PSI
Yield Strength: 73,400 PSI
Elongation: 26%
Hardness: Rc 33-36
Polarity: DC Straight
Gas: 100% Ar
Typical Applications
• Die-casting dies
• Injection molds
• Compression molding of plastics and chrome-moly steels like AISI 4130, 4140, 8620 and 8640
Usage Procedure
Maintain a short arc with minimal weave. Preheat as prescribed by base metal.
Couldn't load pickup availability
Catalog page#: 13-24
Frequently Bought Together
Stepdown Butt Connector 22 to 18/16 to 14 AWG
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Red
Couldn't load pickup availability
Vision Pro Super
Couldn't load pickup availability
349 Tool Steel Stick Rod Electrode 3/32"
Couldn't load pickup availability
345 Tool Steel Stick Rod Electrode 1/8"
Couldn't load pickup availability
349 Tool Steel Stick Rod Electrode 1/8"
Couldn't load pickup availability
176 Extreme Abrasion With Impact 1/4X18IN
Couldn't load pickup availability
E7018 Mild/Carbon Steel Stick Electrode 1/8"
Couldn't load pickup availability
Rosin Core Solder 0.032"
Couldn't load pickup availability
321 Mild and Carbon Steel MIG Welding Wire 0.035"
Couldn't load pickup availability
333 Dissimilar Steel TIG Wire 3/32"
Couldn't load pickup availability
E7018 Mild/Carbon Steel Stick Electrode 3/32"
Couldn't load pickup availability
Product Description
Specially formulated for welding P-mold steels and most chrome-moly alloy steels.Superior Advantages
• Crack-resistant
• Premium operability
• High wear resistance
Tensile Strength: 89,700 PSI
Yield Strength: 73,400 PSI
Elongation: 26%
Hardness: Rc 33-36
Polarity: DC Straight
Gas: 100% Ar
Typical Applications
• Die-casting dies
• Injection molds
• Compression molding of plastics and chrome-moly steels like AISI 4130, 4140, 8620 and 8640
Usage Procedure
Maintain a short arc with minimal weave. Preheat as prescribed by base metal.
Technical Specifications
| Item#: | CW1986 |
|---|---|
| Welding Process | TIG |
| Type | Solid |
| Diameter | .035 " |
| Length | 36 " |
| Tensile Strength | 89,700 PSI |
| Yield Strength | 73,400 PSI |
| Elongation | 26 % |
| Base Metal | Tool Steel |
| Hardness | 33-36 HRC |
| Shielding Gas | 100% Ar |
| Polarity | DCSP |
| Quantity Per Package | 1.0000 |
| UNSPSC #: | 23271810 |
| TAA Compliant: | No |
| Weight: | 1.5 lb |
